Home > Products > Optical Glass Lens > 78mm 90 degree High borosilicate optical glass lens for flood light and high bay light
78mm 90 degree High borosilicate optical glass lens for flood light and high bay light
- 50000 Piece / Pieces per Month
- Qingdao
- T/T
- Optical Objective for Endoscope Repair and Maintenance
- Rod Lens for Storz Endoscope Repair and Maintanience
- Hysteroscpe Objective for Storz/ Stryker, etc. Endoscope Repair and Maintenance
- Cystoscpe Objective for Storz/ Stryker, etc. Endoscope Repair and Maintenance
- Laparoscope/ Arthroscope/ Hysteroscope Rod Lens for Storz Endoscope Repair and Maintanience
- Arthroscope Objective for Storz/ Stryker, etc. Endoscope Repair and Maintenance
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Kaich | Model Number: | KC78-3 |
Material: | Glass | Usage: | Optical | Structure: | Other, Concave-convex |
Shape: | Aspheric |
Product Description

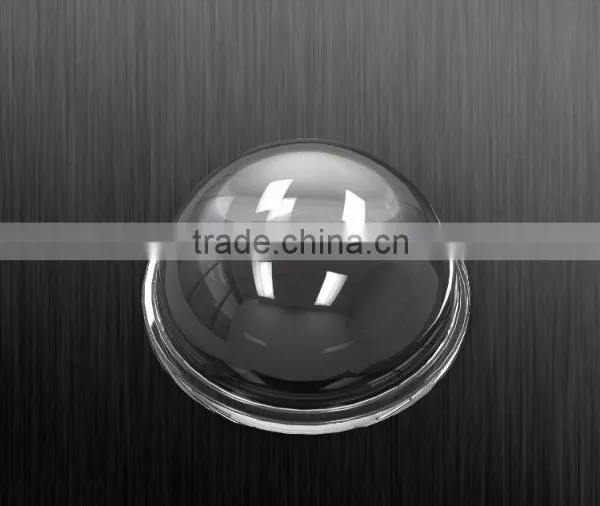

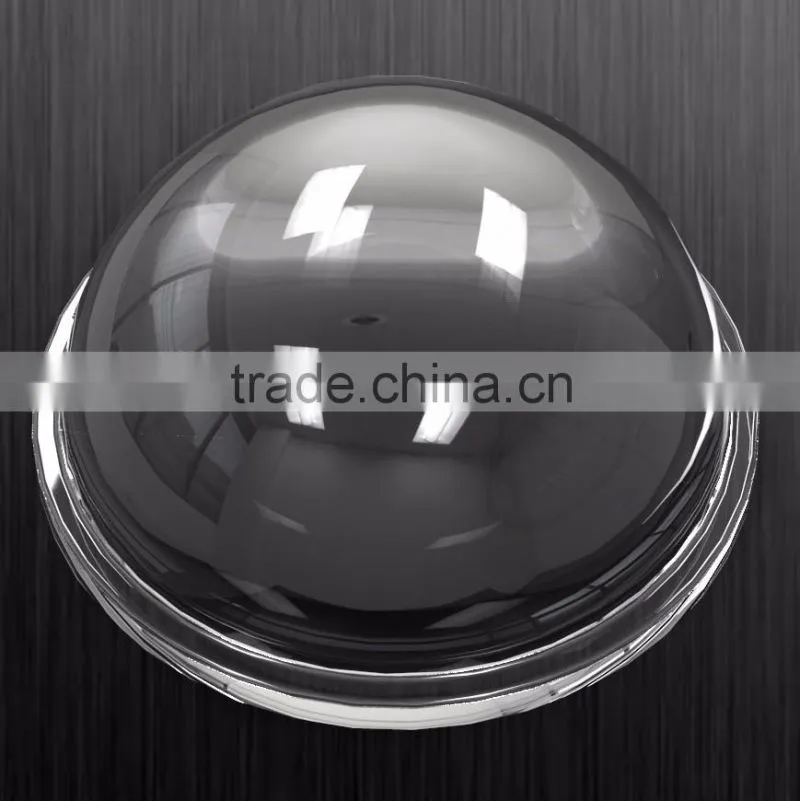

High Borosilicate Optical Glass Lens for LED flood light and high bay light
Specifications
Product type | KC78-3 | Product specification | φ78*35mm |
Luminous angle | 90° | Luminance distribution | 50~200W |
Material | High borosilicate3.3 | Transmittance | 92% |
Temperature resistance | -50℃~+520℃ | Tolerances | ±0.1mm |
Product applications | High Bay Lights,Flood Lights | ||
Uniformity of illuminance | 0.63 |

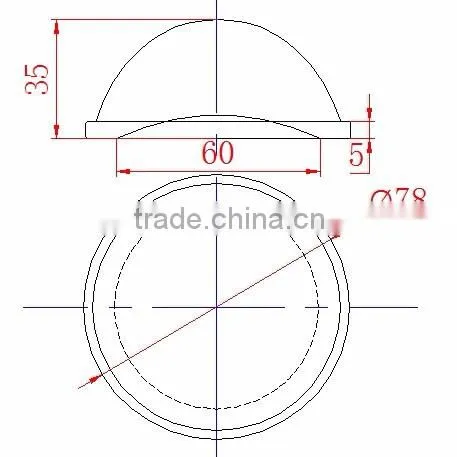

Dimensions

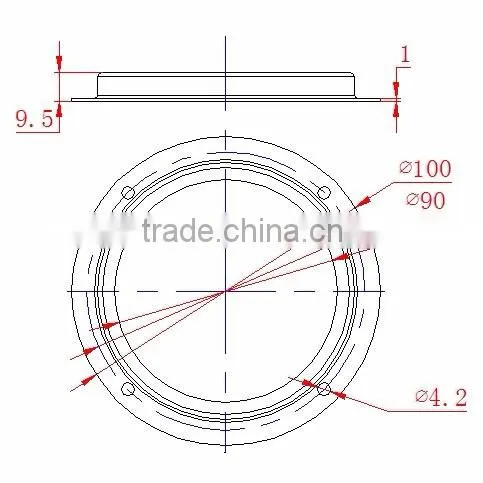

Glass lens Frame

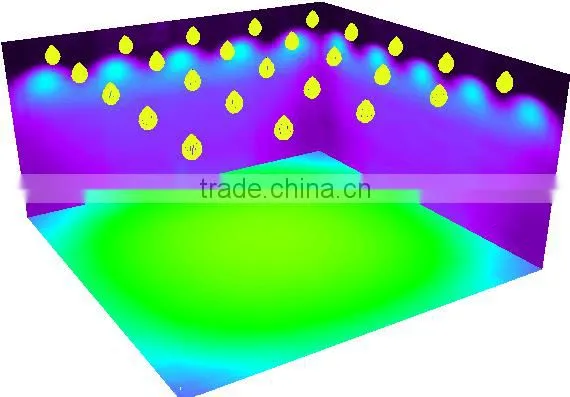

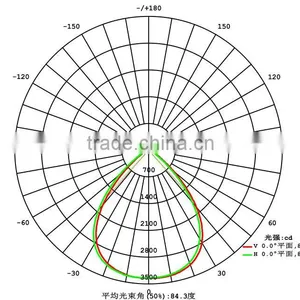

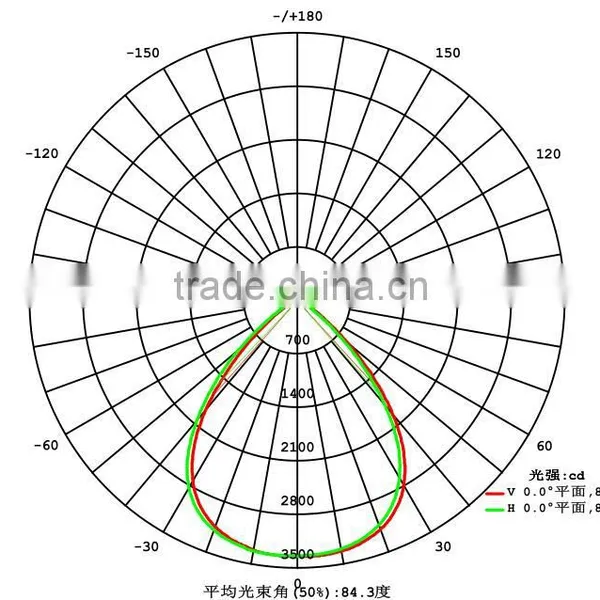

Lighting Simulation
Individual package & Express shipping within 10 days
Payment: 50% T/T as deposit, 50% T/T before lading
Lens for LED Flood Light & High Bay Light Series
Company Overview
Our Lensese are designed and developed by Kaich Optical Degisn Department, which belongs to Shandong Kaich Optical & Electronic Technology Co.,Ltd. With a 36-year field experience professional design team, our lenses have got several patents from diffrent countries and have been exported worldwide. Our lenses can be applied in LED street light, high bay light, tunnel light, LED car light and we provide customized turn-key serivce for specific purpose and circumstances.
Feel free to contact us for samples or inquiries.
