| Model | KC-Q2 | |||
| Power consumption | 60W | 80W | 100W | 120W |
| Lighting effect | 82-110lm/W | |||
| Flux | 6600lm | 8800lm | 11000lm | 14400lm |
| Input voltage | AC 110/220V DC12/24V | |||
| Angle of light diffusion | 160°X80°/170°X60° | |||
| Color temperature | 3000-6000K | |||
| Power factor | >0.95 | |||
| IP rating | IP65 | |||
| Material | Aluminum | |||
| Working temperature | -40°C~50°C | |||
| Working Lifetime | >50000 hours | |||
| CRI | Ra>85 | |||
| Warranty | 3 years | |||
| Certification | CE ISO CQC | |||
| Led chip brand | Cree / Bridgelux / Epistar | |||
| Driver brand: | Meanwell | |||
| Color support | RAL | |||
| Product dimension: | 610*280*88mm 5.12KG | |||
1. We use Bridgelux or Cree chips for all our LED lights. Our light source is integrated low voltage light source with patent honeycomb structured heat sink. Working power is 30w-240w. Main features of our chip is long service life for farly more than 50000hours and low voltage to avoid electric shock.
2. We adopt Meanwell driver for our LED outdoor lights with 5 years quality warranty. The output voltage is 36V, which can avoid light flare and electric shock, and the power factor can reach 0.99 to saving energy more efficiently. Meawell driver can be set to adjust output current and lower the power for further energy saving.

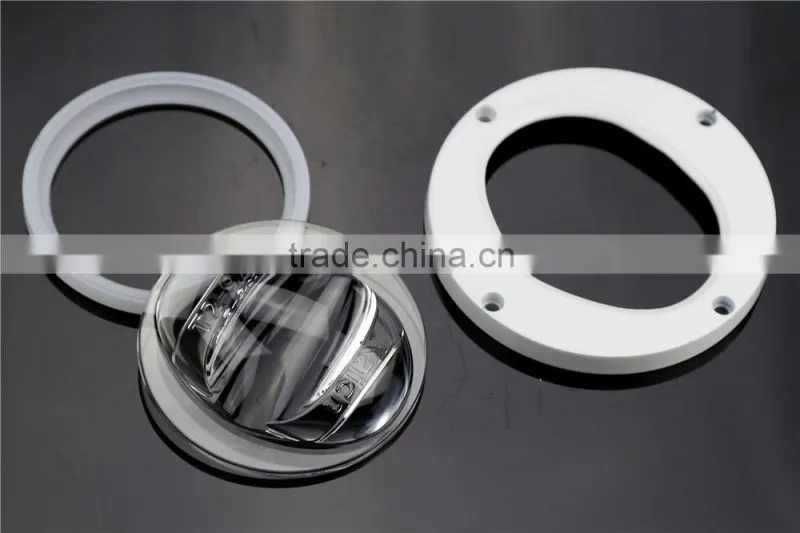

3. We have a independent reach team to design the lense for our LED light. The material of our lense is high borosilicate glass with high light transmittance rate of more than 95%. The design of our lense could make a better control of scatter light and improve the light uniformity and reducing light pollution.

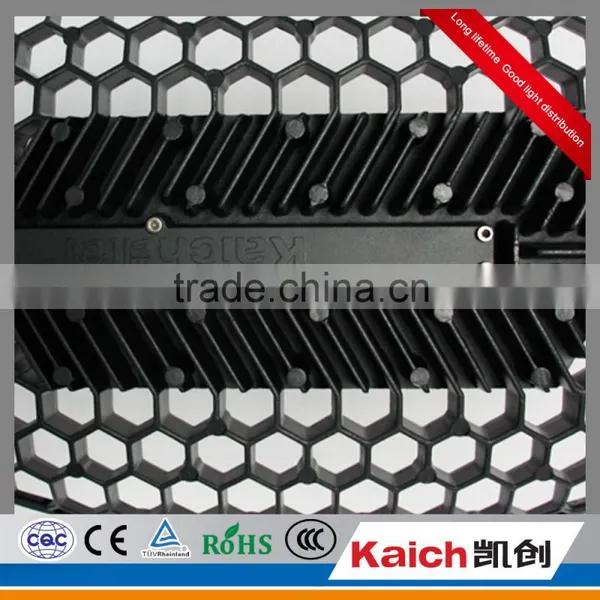

4. Our heat sink system is a patent honeycomb structured lamp shell. Heat dissipation is the main factor to influence the service life of LED chip. Good heat sink is a mark of good quality for any LED light. Our honeycomb structured heat sink could dissipate the sizable amount of heat generated by the light source efficiently. According to our test taken in factory, the luminous decay of the LED chip is less than 1% after working 8800 hours continuously. So, the life of LED chip could be prolonged to more than 50000 hours for sure.
On the other side, this kind of structure can reduce both the weight and cost of light with beautify appearance.

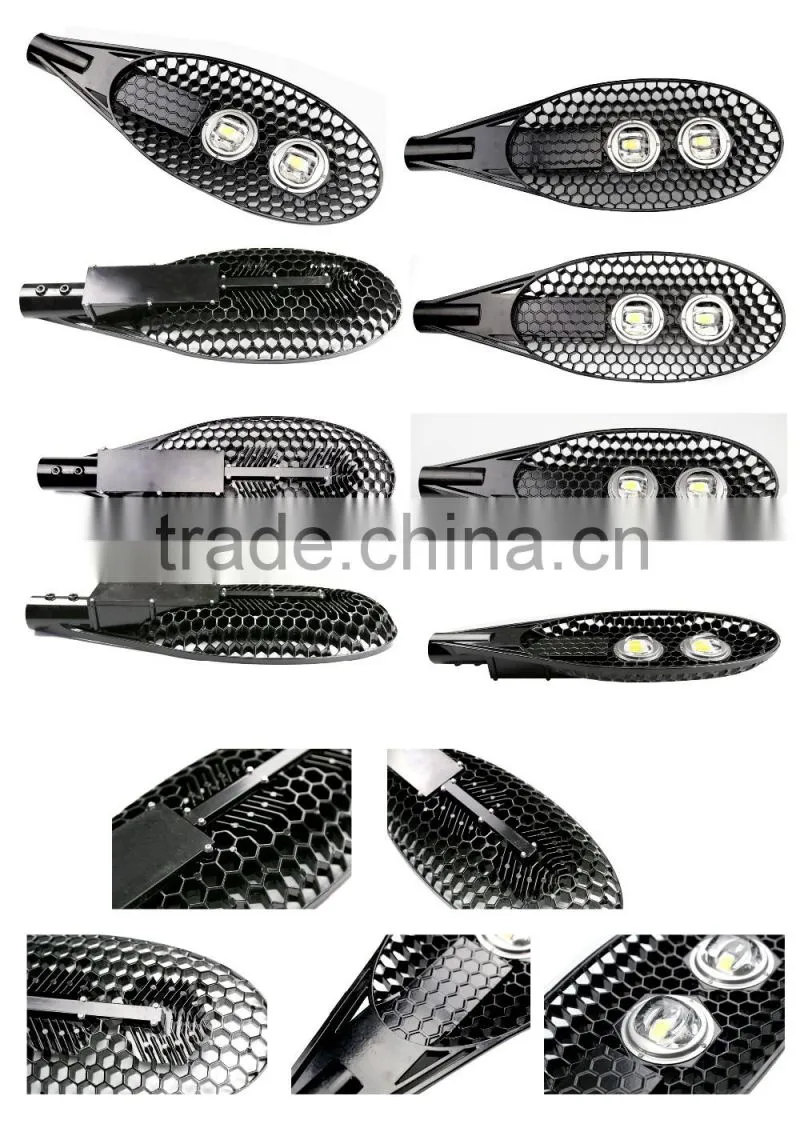

The Patent Unique Heat Dissipation Structure
- Packing:1 pcs/carton
- Shippng: Air and ocean shipping
Kaich group ,with high starting point , high standard, professionalization, high quality products localization, puts the service concept “create value for customers with total satisfaction .move customers with sincerity ,beyond customers expectation” into every service process .Kaich group wins the praise from domestic and foreign clients with first class products and one-top service.
Shandong Kaich Optical & Electronic Technology Co.,Ltd,is the Solar-LED lighting products manufacturer base of Kaich group,with registration capital of CNY 10,000,000,has modern factory building of 5000 square meters,6 senior engineers,more than 50 professional and technical employees,with Marketing business Department,Production&Installation Department,Technology R&D Department,After-sale Service Department and other functional Department.
Kaich is specialized in designing and manufacturing Solar-Led lighting and related products,leads the Chinese solar LED Street Lamp Lighting Industry.
Products Range(Led street light,flood light,garden light and solar light)
Our Factory
1. All of your questions and suggestions related to us or our products, we will reply you in details within 24 hours.
2. Well-trained and passional sales & after- sale services,we can do everything to meet your needs.
3. We offer customize services. Can print your own logo on product , can customize the retail box packing and other things.
4. Shipping port: Qingdao, China mainland.
5. EXAMPLES are prepared.Discouts are offered based on order quantities.
Q: What are the advantages of solar led street light?
A: LED light source ten characteristics : 1. Small lamp body 2. Low energy consumption
3. Strong and durable 4. Long service life 5. Safe low voltage 6. Wide range of application
7. More colorful 8. Less heat dissipation 9. Environmental protection 10. Less cost.
Q: Is there cheap shipping cost to import to our country?
A: For small order, express will be the best. And for bulk order, sea ship way will be better ,
but take much time.
For urgent orders, we suggest via air to airport plus our ship partner send to your place.
