Led outdoor lighting COB IP65 30W 50W 60W Led street light
- 5000 Piece / Pieces per Month
- QINGDAO
- T/T Credit Card
- LED glass lens module light source 50W module courtyard light M4G5 street light module EMC engineering project premium product
- LED glass lens module light source, 50W module street light, courtyard light, landscape light, magnolia light, M4G5 street light module
- LED glass lens module light source street light 50W module courtyard light M4G5 street light module landscape light Yulan light
- LED glass lens module light source Street light 25W module Courtyard light M4G5 Street light module Landscape light Magnolia light
- LED glass lens module light source projection light 50W-700W module high pole light M4G5 street light module M212 tunnel light
- 190Lm/WLED glass lens module light source Street light 25W module Courtyard light M4G3 Street light module EMC project M212
Product Details
LED Light Source: | Bridgelux | Input Voltage(V): | 110-220V 12\24V | Lamp Power(W): | 60 |
Lamp Luminous Flux(lm): | 3300-8800 | Lamp Luminous Efficiency(lm/w): | 110 | Color Temperature(CCT): | Warm White |
Working Temperature(℃): | -30, 50 | Working Lifetime(Hour): | 50000 | Lamp Body Material: | Aluminum |
IP Rating: | IP65 | Certification: | CCC, CE, CQC, UL | Warranty(Year): | 3 |
Place of Origin: | Shandong, China | Brand Name: | KAICH | Model Number: | KC-Q1 |
Product Description

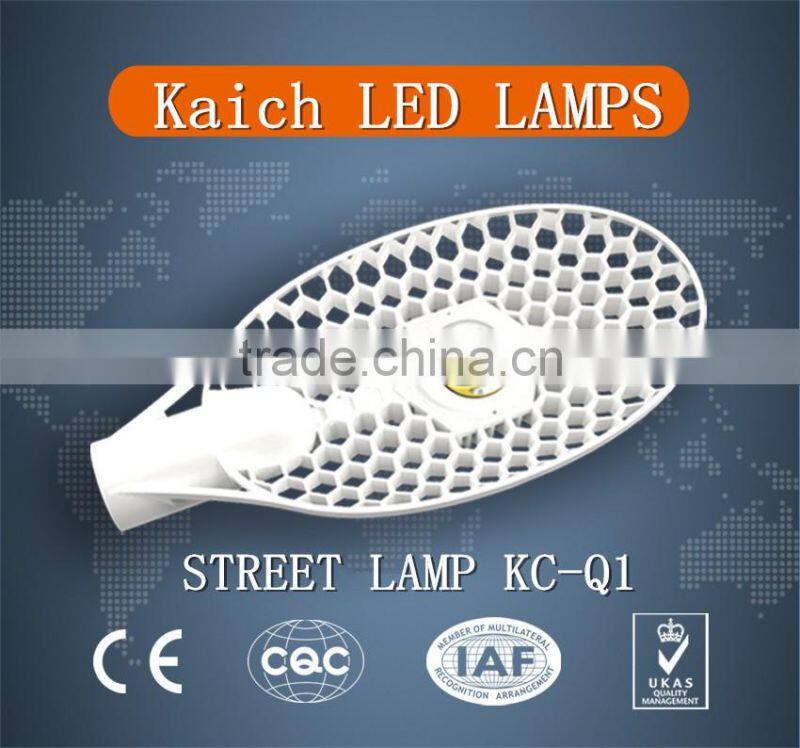

Kaich LED Street Light KC-Q1 | |||||
NO. | Specification | ||||
1 | Model | KC-Q1 | |||
2 | Power Range(W) | 30W 40W 50W 60W | |||
3 | Light source | Intergrated Bridgelux COB | |||
4 | Certifications | CE RoHS CQC UL CCC | |||
5 | Color Temperature | 3000K-6000K | |||
6 | Angle of Light Diffusion | 160°×80° | |||
7 | Rated Voltage | 110v/220v(constant-current) 1224V | |||
8 | Temp. Rise | 4-23°C | |||
9 | Light Effect | 122mw(with AC) 147lmw (with solar panel) | |||
10 | Power Factor | >95% | |||
11 | IP Code | 65 | |||
12 | Lifetime | >50000Hours | |||
13 | Ambient Tem. | -30~50°C | |||
14 | Body Material | ADC12 Die casting Aluminum | |||
15 | Flux | 3300-6600lm | |||
16 | Product Size(cm) | 53CM*26CM*8.6CM | |||
(inches) | 19x 10.2x 3.4 | ||||
17 | Lens material | High borosilicate glass 3.3 | |||

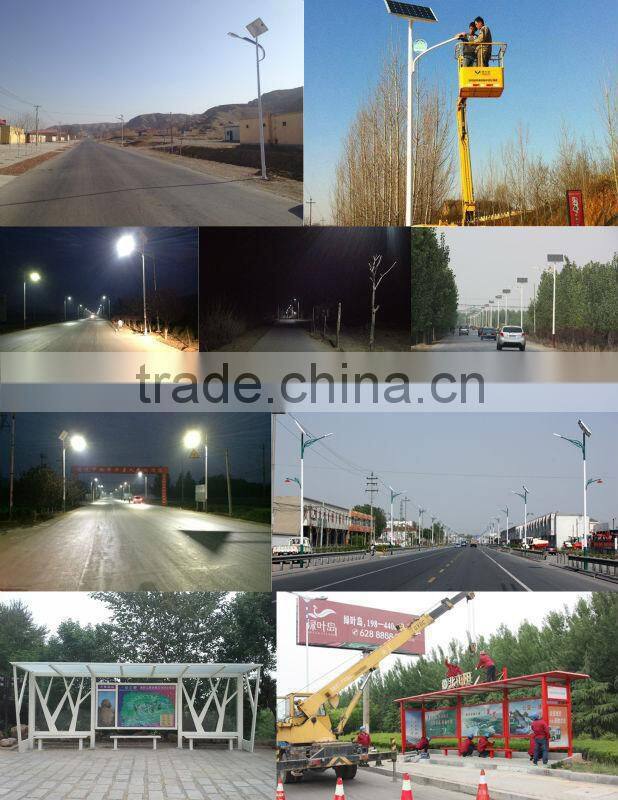

Application: road lighting of express ways, urban roads
Recommended installation height: 30w-60w lamps 4-8m
Advantage analysis of Kaich LED lights
Patent heat dissipation technology

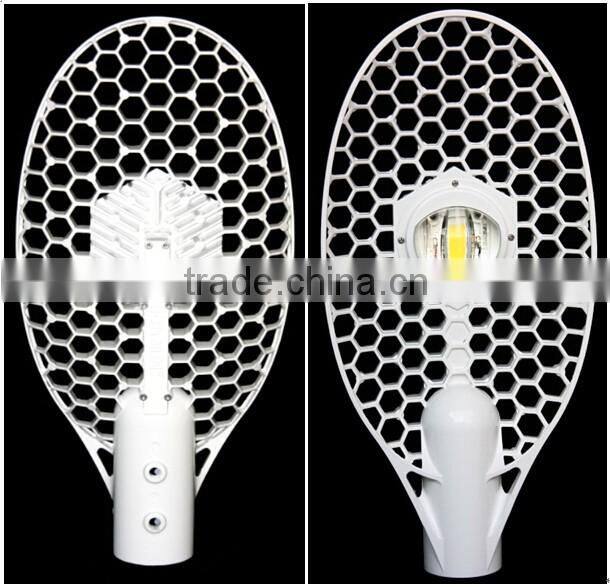

Hexagonal honeycomb heat dissipation structure

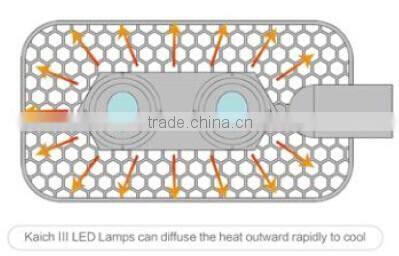

1st. Heat conduction
Regarding the housing material, Kaich Led lamp adopts ADC12 die-casting aluminum, having a better and faster heat dissipation effect in all of the metal elements. Except for the material, it is also designed with a Hexagonal honeycomb structure, which is more conductive to diffuse the heat out of the center of LED chip. In this way, the lamp housing‘s cooling effect is much more obvious.
2nd .Heat convection
Kaich Led lamp adopts an up-down through-hole heat dissipation structure, speeding up the flow of hot and cold air and gaining a better cooling effect.

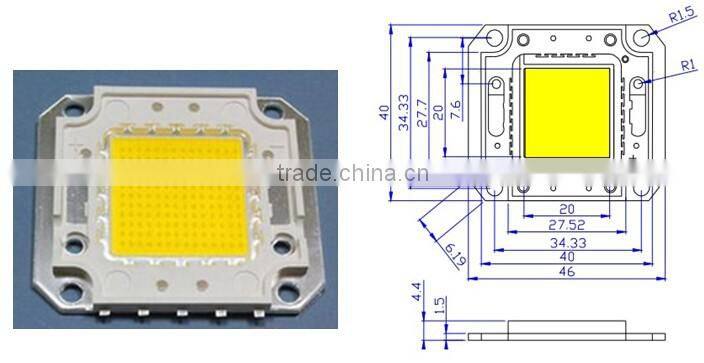

3rd. COB LED chip
Kaich Led lamp adopts high power integrated COB chip, which is the LED lighting technical direction, greatly improving the assembly efficiency and IP rate, and also reducing the production cost and damage rate.

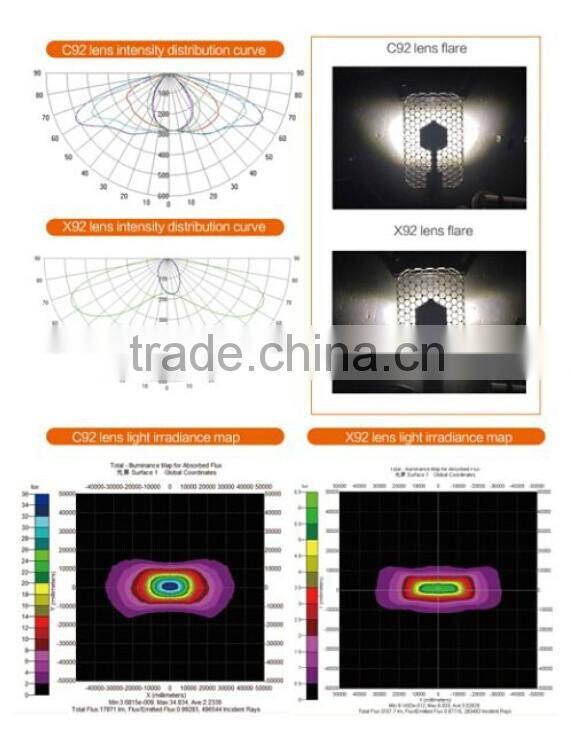

4th. Patent lens
Kaich Led lamp adopts the high transmittance PC and Glass patent lens, greatly improving the illumination uniformity and having a better light distribution, more directional.
Management certificate

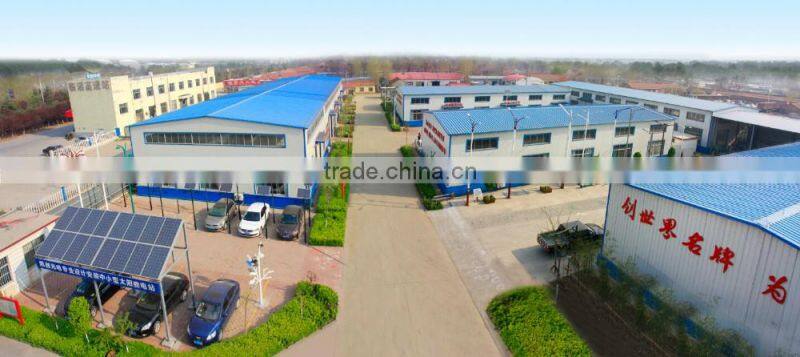

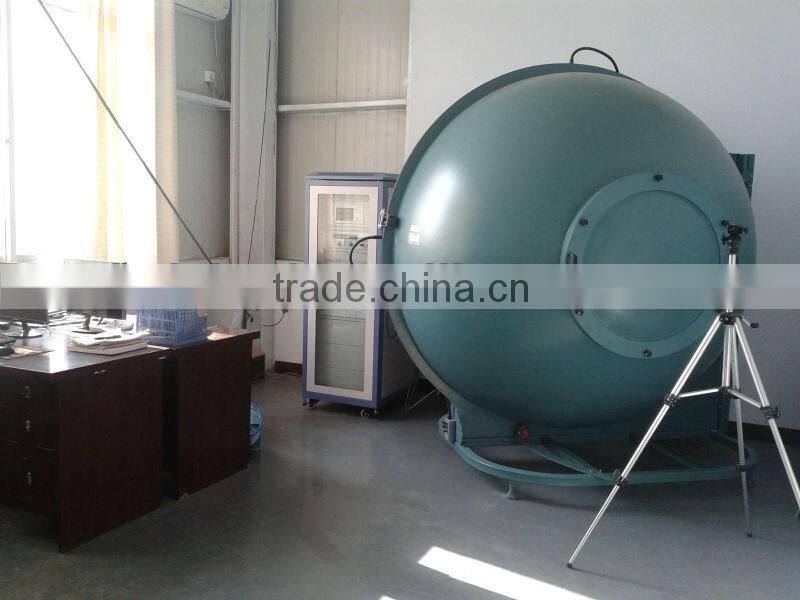

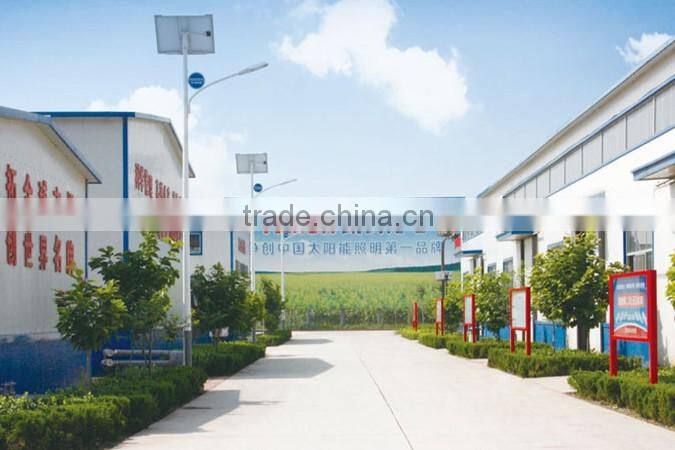

Shandong kaich optical and electronic technology co., ltd, with the registration capital of CNY 10 million ,is the manufacturing base of LED lighting, which is applied for the patent in china and other target oversea markets. We have our own modern workhouse 5000SQM ,6 senior engineers, more than 50 technicians with Marketing Department, Management Department, Technology R&D Department, Engineering Department and After-service Department .The high power LED producing line has its own large coil bending machine, cutting board machine, spray painting and other testing equipment.
Kaich Group ,with high starting point , high standard, professionalization, high quality products localization, puts the service concept “create value for customers with total satisfaction .move customers with sincerity ,beyond customers expectation” into every service process .Kaich group wins the praise from domestic and foreign clients with first class products and one-top service.
Contact Us
- Shandong Kaich Optical & Electronic Technology Co., Ltd.
- Contact nameAlice Zhang
- Phone86-532-68069698
- AddressKaich Technology Industrial Zone, No.1 Kaich Road, Linzi District Zibo,Shandong
