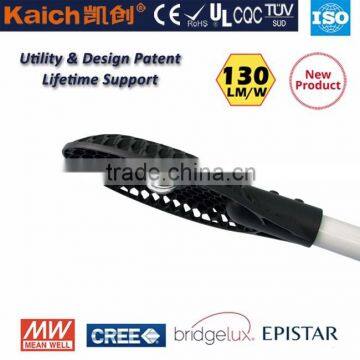

COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture

COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture thumbnail-1
COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture thumbnail-2
COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture thumbnail-3
COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture thumbnail-4
COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture thumbnail-5
COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture thumbnail-6
COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture photo-1
COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture photo-2
COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture photo-3
COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture photo-4
COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture photo-5
COB LED Street Light 50W IP66 KC-Q1Replace Hps Street Light Fixture photo-6
US$ 50 - 72 MOQ: 3 Pieces
Key Specifications
Get Latest Price
LED Light Source:
integrated
Input Voltage(V):
12/24
Lamp Power(W):
80
Contact Supplier Request Quote Chat Now
Shandong Kaich Optical & Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source integrated
Input Voltage(V) 12/24
Lamp Power(W) 80
Lamp Luminous Flux(lm) 4500-8800
Lamp Luminous Efficiency(lm/w) 110
Color Temperature(CCT) Pure White
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP66
Certification CCC, CE, CQC
Warranty(Year) 3
Place of Origin Shandong, China
Brand Name Kaich
Model Number Q1

LED STREET LIGHT

KC-Q1  30-80W

BEST QUALITY, LOWEST PRICE,

THE MOST POPULAR DESIGN IN 2016!

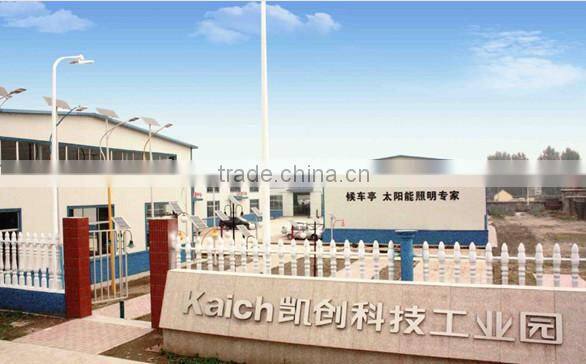

Company Information



Kaich Optical & Electronic is specialized in providing high efficient LED street light, Landscape Light, Cast light, Solar LED street light  and small Solar Generation system from Shandong, China since 2008. In order to prolong the service life of LED light source, we have adopted a patent honeycomb structured heat sink to dissipate the sizable amounts of heat being generated by LED chip. According to the test taken in our factory, with using this honeycomb structured lamp shell, the luminous decay is less than 1% after lighting 8800 hours continuously.

We also developed our own lenses to control the scatter light for better light uniformity and brightness and reducing light pollution.

Both LED light and Solar LED light can achieve energy saving and decrease CO2 emission.

All of our products enjoy 5 years warranty.

When you give out a requirement, we will try our best to return you a solution for maximum energy efficiency with the most reasonable cost.

COB LED street light 50W IP66 KC-Q1Replace Hps Street Light Fixture



Shandong Kaich Optical& Electronic Technology Co., Ltd

     1.We have been in LED light for more than 8 years.

    2.Our main products are LED street light, solar LED street light system, LED flood light, LED garden light.

    3.We have a professional technical team to serve every customer.

    4.The design, honey-comb structure, have gotten patent from more than 9 countries: USA,        european Union, Australia, India, Russia, South Africa and so on.

    5.The lens are all designed by our optical design team and have gotten patents.

    6.Our products have been sold to more than 20 countries.

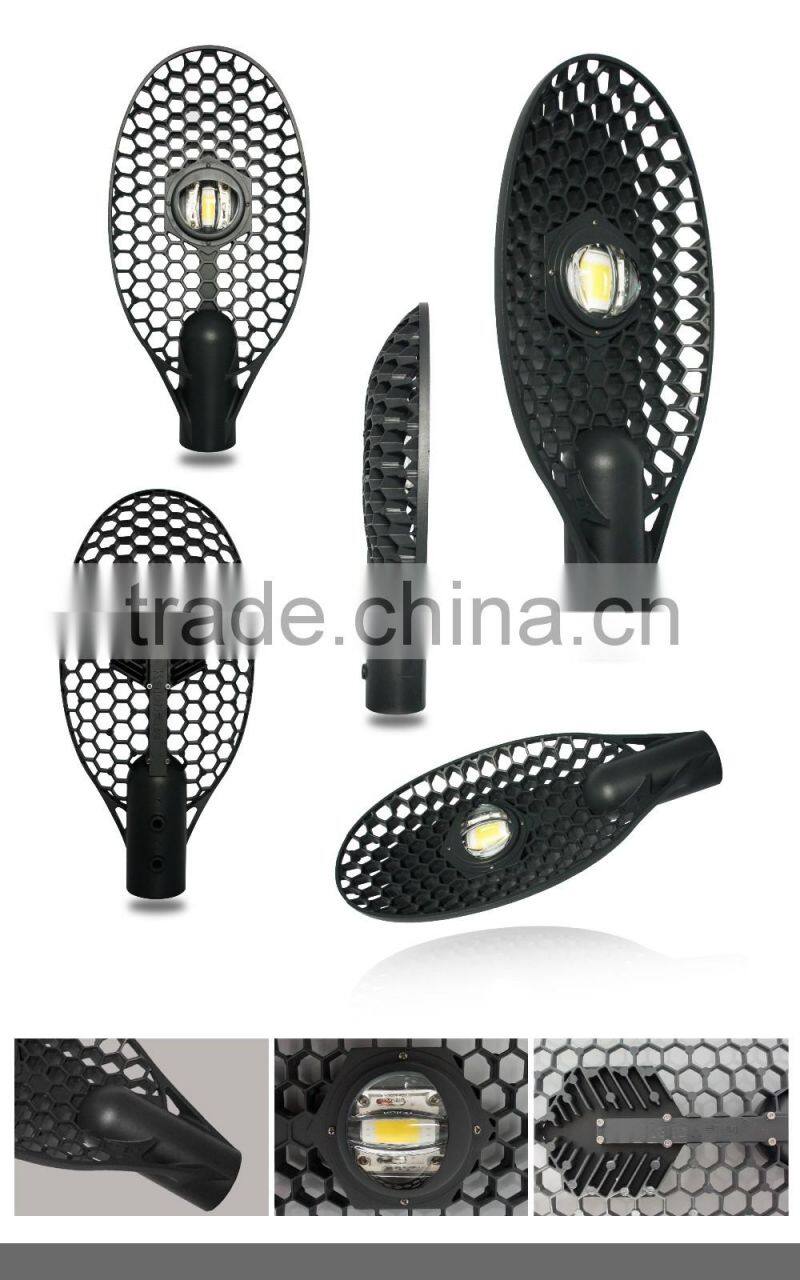

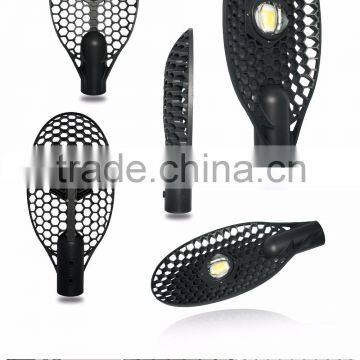

Lamp Body

Powder painted Die-casting Alluminium lamp body speciallt design in honeycomb structure for better heat dissipation.

COB LED street light 50W IP66 KC-Q1Replace Hps Street Light Fixture

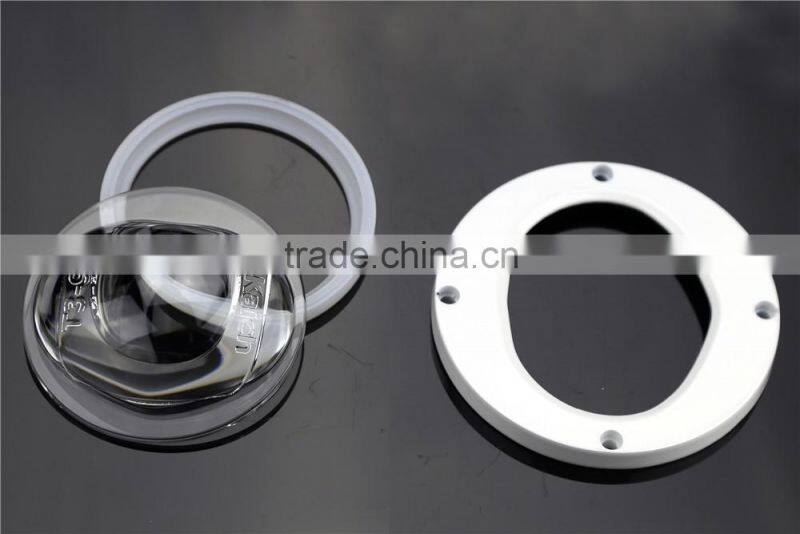

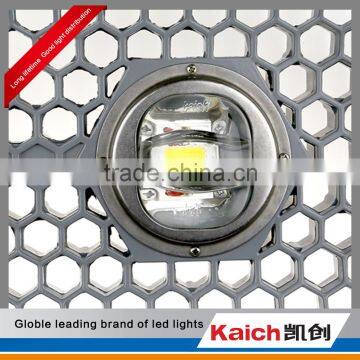

Lens

For Street Light, we have designed glass lens with polarizing angle to distribute light beam onto the road better to avoid light pollution.

COB LED street light 50W IP66 KC-Q1Replace Hps Street Light Fixture

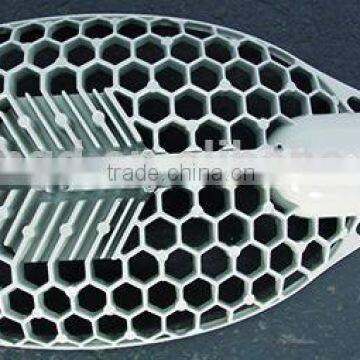

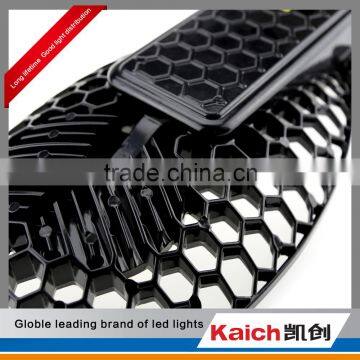

Honeycomb Structure





About Q1



KC-Q1 Lamp Parameters
Model KC-Q1
Power consumption 50w 60w 70w 80w
Luminous Flux 4500-5500lm 5400-6600lm 6300-7700lm 7200-8800lm
Lamp Body Material Die-casting aluminum
lamppost material Q235
Lens High transmittance borosilicate glass lens
Source type integrated light source
Lighting effect 100-120 lm/w
Input & Voltage AC 110/220V & DC12/24V
Working Lifetime >50000 hours
Warranty 3 years
Color temperature 3000-6000K
CRI Ra>85
Power factor >0.95
IP rating IP65
Driver brand: Meanwell,Philips
Battery type Gel lead-acid battery
Led chip brand Cree / Bridgelux / Epistar
Material Aluminum with powder painting
Angle of light diffusion 160°*80°/170°*60°
Working temperature -40°C~50°C
Certification CE ISO CQC Rohs
Colar multicolor
Size 530mm*260mm*85mm
Product net weight 3.2kg
Driver position outside
Application village,township,residential area,park, factory
Installation height 6-8m
package carton or wooden cases or Customers packing are acceptable
Drive mode the city electricity ,solar energy



Testing

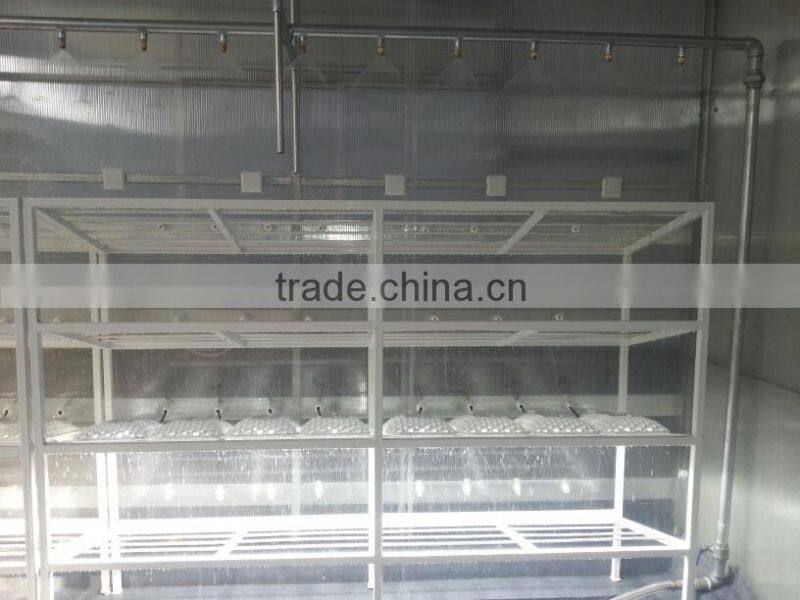

Waterproof testing

COB LED street light 50W IP66 KC-Q1Replace Hps Street Light Fixture COB LED street light 50W IP66 KC-Q1Replace Hps Street Light Fixture

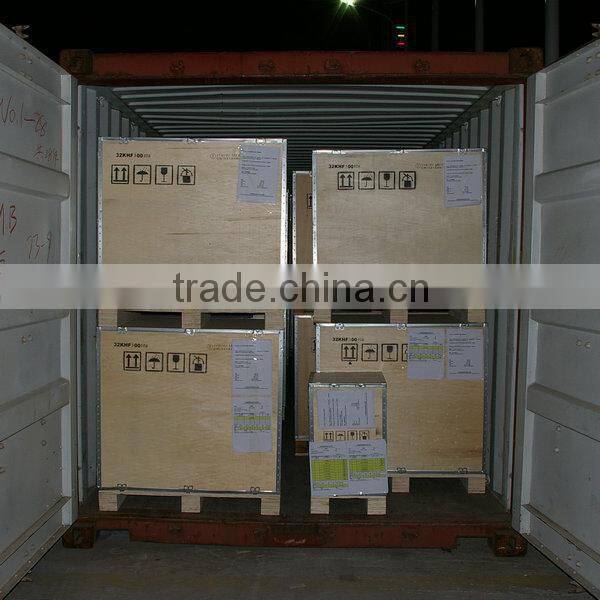

Packaging & Shipping

 COB LED street light 50W IP66 KC-Q1Replace Hps Street Light FixtureCOB LED street light 50W IP66 KC-Q1Replace Hps Street Light FixtureCOB LED street light 50W IP66 KC-Q1Replace Hps Street Light Fixture

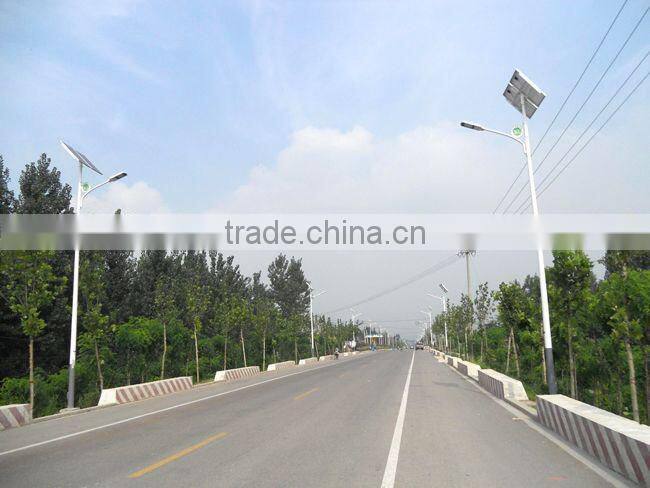

Project Cases

 COB LED street light 50W IP66 KC-Q1Replace Hps Street Light FixtureCOB LED street light 50W IP66 KC-Q1Replace Hps Street Light Fixture

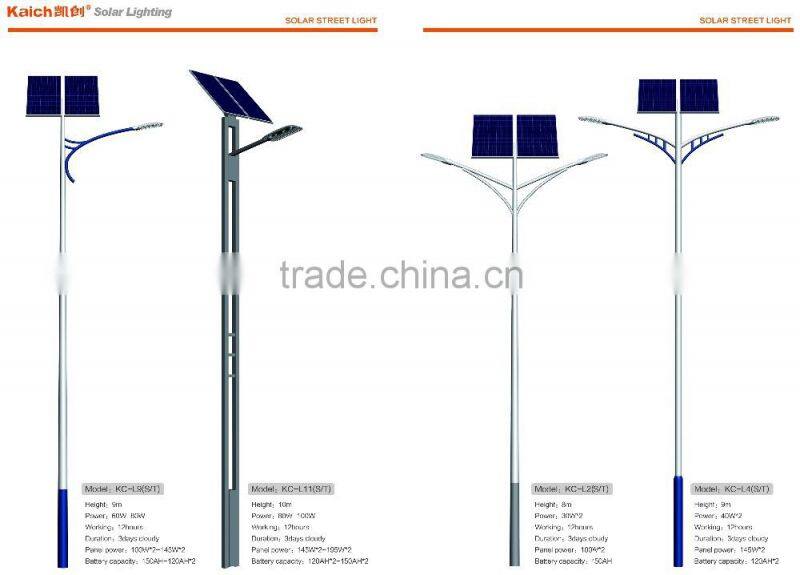

Other Products



COB LED street light 50W IP66 KC-Q1Replace Hps Street Light Fixture

COB LED street light 50W IP66 KC-Q1Replace Hps Street Light Fixture
