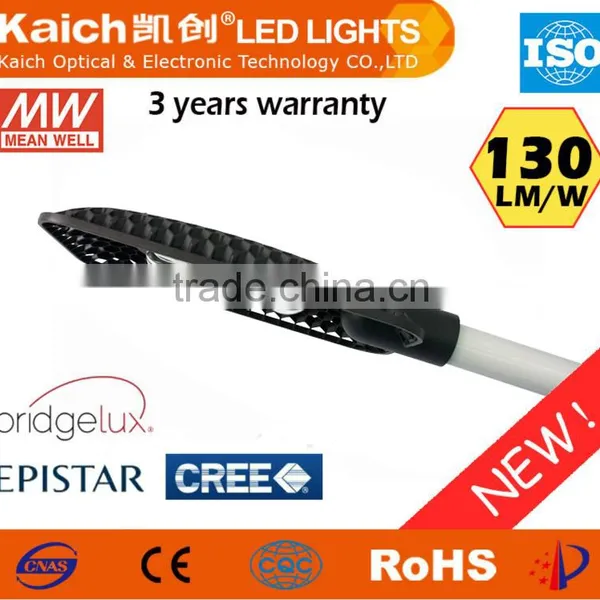

Help CenterHoneycomb Structure Bridgelux COB 60W Led Street Lamp Urban Road Lighting
Related Products
-
Led Outdoor Lighting COB IP65 30W 50W 60W Led Street LightUS$ 70 - 120MOQ: 3 Pieces -
2016 China High-end 100W 120W 140W 160W LED Street Lamp PostUS$ 125 - 140MOQ: 1 Piece
-
2016 Unique Honeycomb Design 30W Led Street Light for Quality Street LightingUS$ 75 - 88MOQ: 3 Pieces
-
2016 China High-end 120W 150W 180W 210W 240W LED Street Lamp Post PricesUS$ 130 - 170MOQ: 10 Pieces
-
2016 Newest Design IP66 Die Casting Aluminum 70 Watt Led Street Light With Meanwell Driver UL CE ROHS CertificateUS$ 83 - 86MOQ: 200 Pieces
Product Images

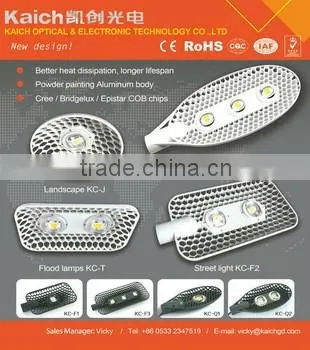

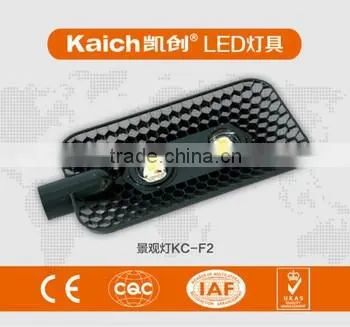

| Kaich LED Street Light KC-F2 | |||||
| NO. | Specification | ||||
| 1 | Model | KC-F2 | |||
| 2 | Power Range(W) | 60W 80W 100W 120W | |||
| 3 | Light source | Intergrated Bridgelux COB | |||
| 4 | Certifications | CE RoHS CQC UL CCC | |||
| 5 | Color Temperature | 3000K-6000K | |||
| 6 | Angle of Light Diffusion | 160°×80° | |||
| 7 | Rated Voltage | 110v/220v(constant-current) 1224V | |||
| 8 | Temp. Rise | 4-23°C | |||
| 9 | Light Effect | 122mw(with AC) 147lmw (with solar panel) | |||
| 10 | Power Factor | >95% | |||
| 11 | IP Code | 65 | |||
| 12 | Lifetime | >50000Hours | |||
| 13 | Ambient Tem. | -30~50°C | |||
| 14 | Body Material | ADC12 Die casting Aluminum | |||
| 15 | Flux | 5400-13200lm | |||
| 16 | Product Size(cm) | 48.4CM*26CM*8CM | |||
| (inches) | 19x 10.2x 3.1 | ||||
| 17 | Lens material | High borosilicate glass 3.3 | |||
Application: road lighting of express ways, urban roads
Recommended installation height: 120w-240w lamps 10-12m
Advantage analysis of Kaich LED lights
Patent heat dissipation technology
Hexagonal honeycomb heat dissipation structure
1st. Heat conduction
Regarding the housing material, Kaich Led lamp adopts ADC12 die-casting aluminum, having a better and faster heat dissipation effect in all of the metal elements. Except for the material, it is also designed with a Hexagonal honeycomb structure, which is more conductive to diffuse the heat out of the center of LED chip. In this way, the lamp housing‘s cooling effect is much more obvious.
2nd .Heat convection
Kaich Led lamp adopts an up-down through-hole heat dissipation structure, speeding up the flow of hot and cold air and gaining a better cooling effect.
3rd. COB LED chip
Kaich Led lamp adopts high power integrated COB chip, which is the LED lighting technical direction, greatly improving the assembly efficiency and IP rate, and also reducing the production cost and damage rate.

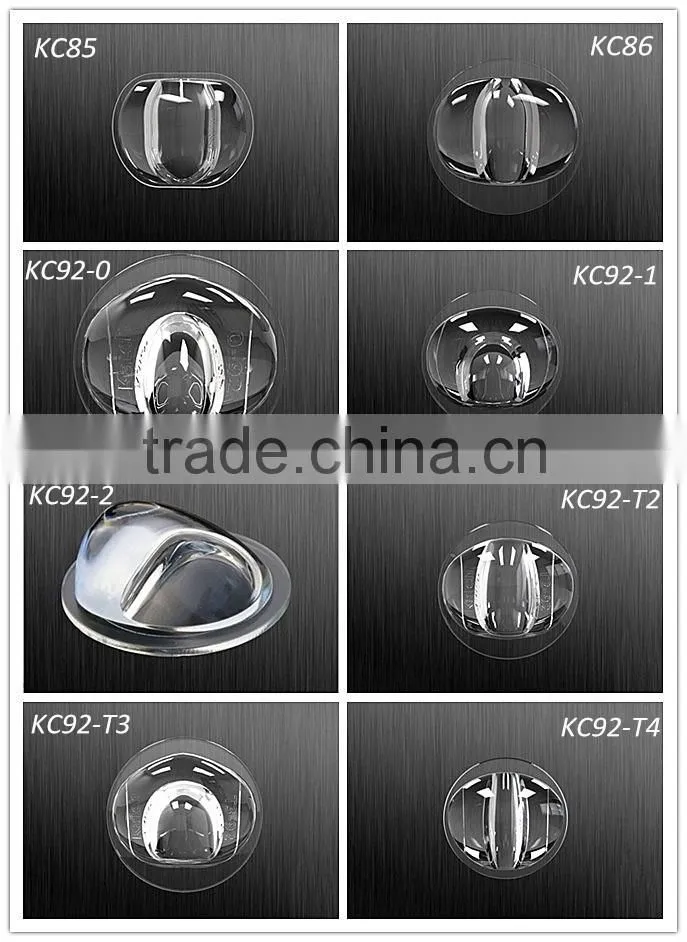

4th. Patent lens
Kaich Led lamp adopts the high transmittance PC and Glass patent lens, greatly improving the illumination uniformity and having a better light distribution, more directional.
5th. Practical but artistic housing design
The unique design with or without power supply box, can meet different clients conditions, also reduces the damage rate and lower the production and maintenance costs. In addition, the stream line design can make use of the crosswind to realize the dissipation purpose, and protect the lens.

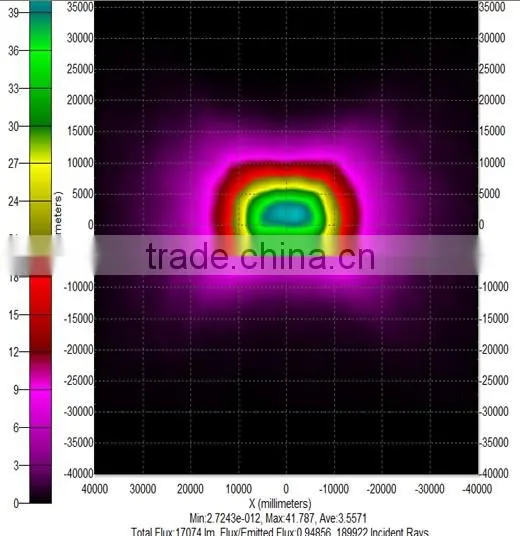

Illuminance Map
Management certificate

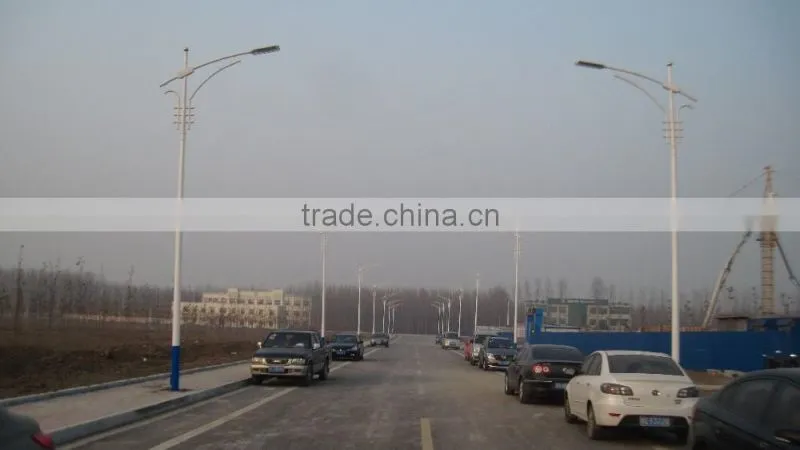

Applicable Places
OEM,Customized; 5 years warranty,10 years technical support;
Welcome overseas agents!
Phone:+86 131 532 77575 Skype: kaich grace
Prodcution workshops

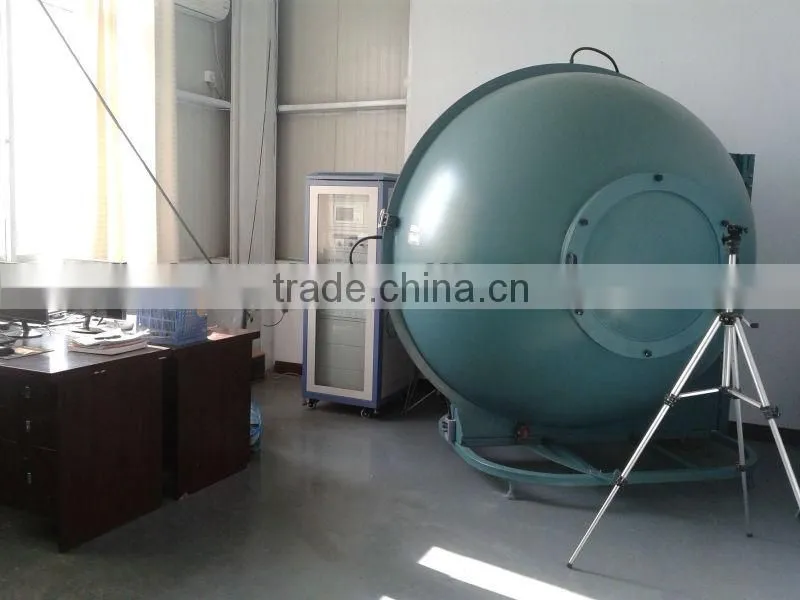

Quality Control

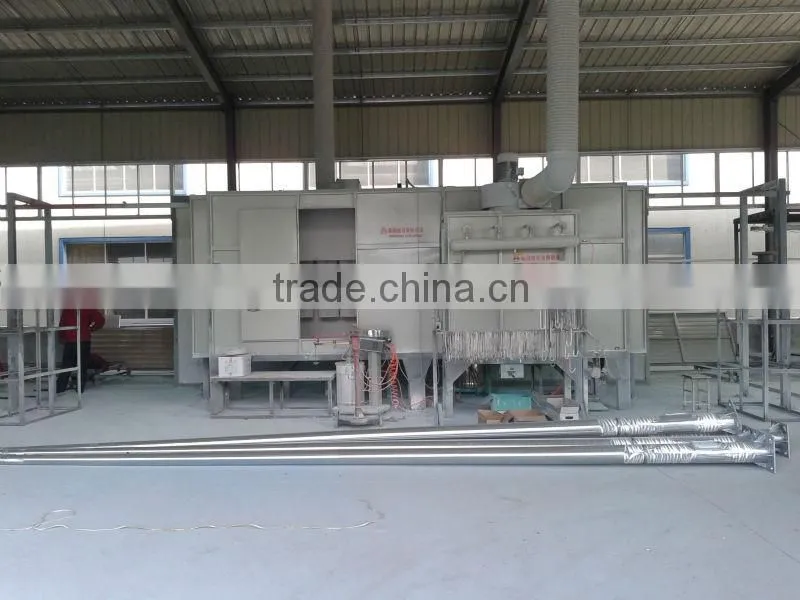

large spray painting room
