Electrical equipment manufacturing diesel generator 5kva

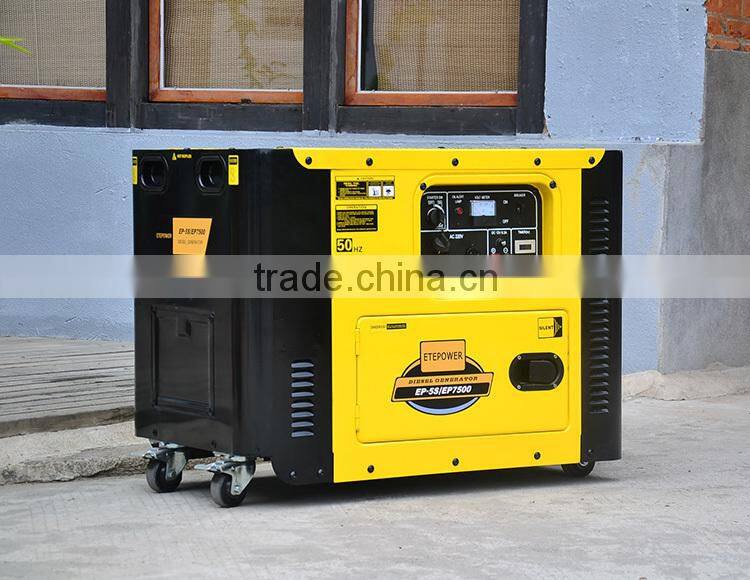

silent type:
New Design:
1.360° Rotation Wheels; 2.Top Fuel Tank,100% No leaking;
3.Inside Extra Radiator Fan; 4.Super Silent Canopy(65db-68db)

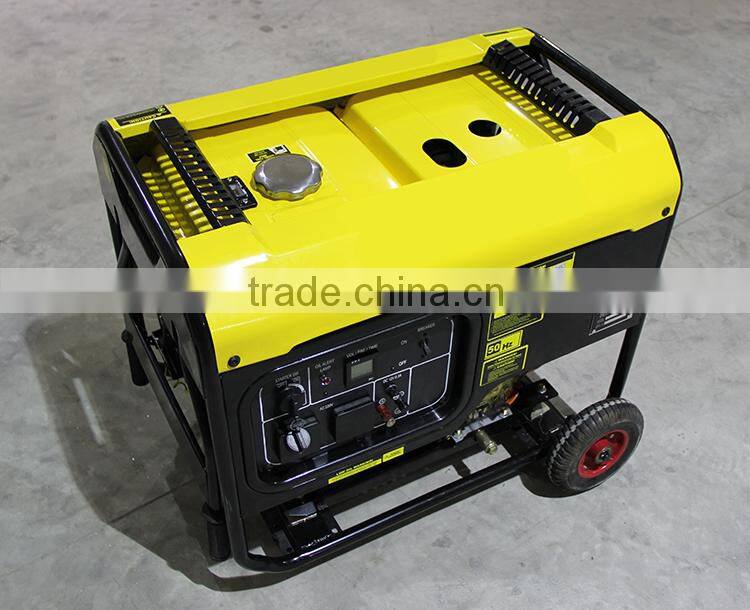

open type with handle and wheels:
Genset Specifications
1-Phase, 50Hz@3000RPM, 220v (Also Can Be Made According To Customers’ Requirements)
Prime Power |
5KW/5KVA |
Standby Power |
5.5KW/5.5KVA |
Rated Speed |
3000RPM |
Output Frequency |
50HZ |
Phase |
1 |
Rated Voltage |
240V |
Engine Model |
186FA |
Alternator Model |
N-5 |
Fuel Consumption of 100% load |
281g/kw.h |
Fuel tank capacity(L) |
13 |
Voltage Regulation Rate |
≤±1% |
Random Voltage Rate |
≤±1% |
Frequency Regulation Rate |
≤±5% |
Random Frequency Variation |
≤±0.5% |
Dimension (silent type) |
920*545*705(mm) |
Weight (silent type) |
180kg |
20' container qty(normal loading) |
72 |
40' HQ container qty (normal) |
144 |
Engine Specifications
186FA Diesel engine
Engine Model |
186FA |
Number of Cylinder |
Single cylinder genset |
Cylinder arrangement |
Vertical in-line |
Cycle |
Four Stroke |
Aspiration |
Natural Aspiration |
Bore×Stroke (mm×mm) |
86×72 |
Displacement (cc) |
418 |
Starting System |
Electric starting |
Continue Running Time |
≥9 hr |
Lubrication System |
Pressure splashed |
Lube. Oil Capacity |
1.65L |
Cooling System |
Air cooled diesel generator |
Fuel Tank Type |
With zinc-plated inside |
Total Lubrication System Capacity (L) |
418 |
Combustion System |
Direct Inject |
Fuel Consumption at 100% Load(g/kwh) |
281(at 3600RPM) |
Battery capacity(V-Ah) |
36 |
Alternator Specifications
Alternator Model |
N-5 |
Alternator Brand |
China Stamford Alternator |
Exciter Type |
Brush, Self-excited |
Rated Output |
5kw diesel generator |
Rated Speed |
3000RPM |
Rated Frequency |
50HZ |
Phase |
Single phase ac generator |
Rated Voltage |
230V (Available with customer requirements) |
Power Factor |
1 |
Voltage Adjust Range |
≥5% |
Voltage Regulation NL-FL |
≤±1% |
Insulation Grade |
F |
Protection Grade |
IP20 |
ETE promise:
100% copper wire inside alternator
100% no leaking oil
100% no high temperature
100% never losing power
100% invention patent product
100% zinc-plated inside top fuel tank
100% super silent canopy
