Specifications
Key Start 5KW/5KVA Silent Diesel Generator1. zinc-plated fuel tank
2. 360 degree rolling wheels
3. 100% copper

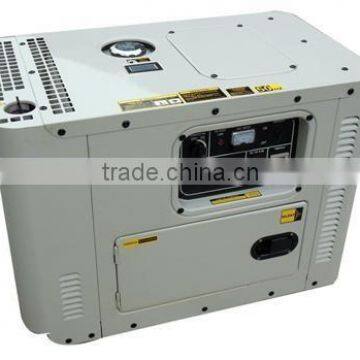

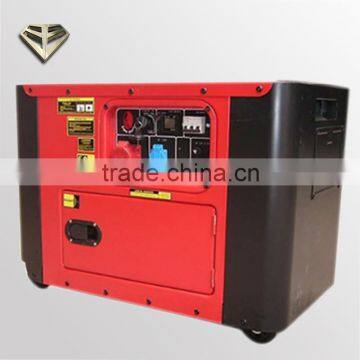

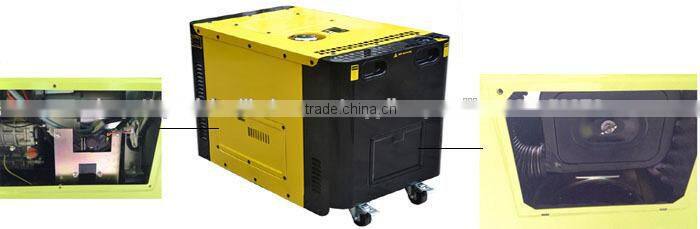

Key Start 5KW/5KVA Silent Diesel Generator
Genset Main Specifications |
1-PH, 50Hz@3000RPM, 220 (Also Can Be Made According To Customers’ Special Requirements)

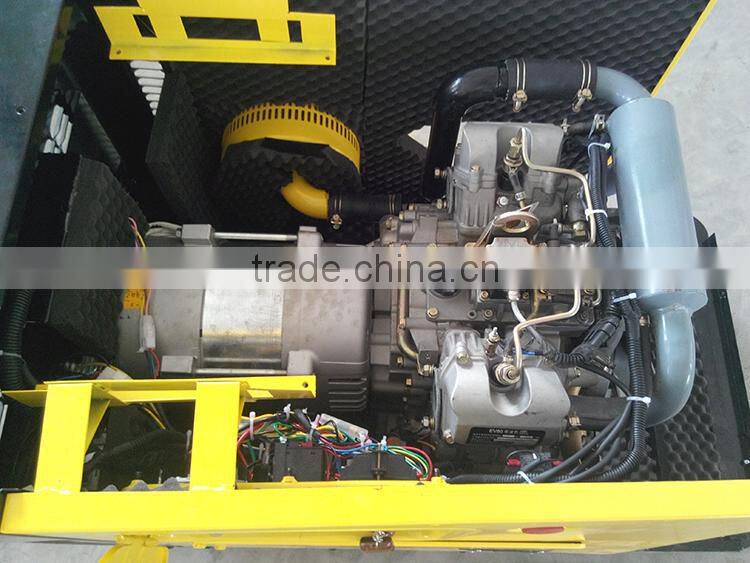

1.Composed of 186FA diesel engine and China Alternator
2.12V DC start motor and storage battery
3. Brush, Self-excited, IP20, insulation class F alternator
4.Key start panel control system as standard, digital auto-start panel is optional
5.8-hour operationTOP tank
6.Optional open type or silent type
7.All generator sets are gone through rigorous testing before being released to the market place, including 50% load, 75% load, 100% load, 110% load and all protection function (overspeed stop, high water temperature, low oil pressure, battery charging fail, emergency stop)
Prime Power |
5KW/5KVA |
Standby Power |
5.5KW/5.5KVA |
Rated Speed |
3000RPM |
Output Frequency |
50HZ |
Phase |
1 |
Rated Voltage |
230V |
Engine Model |
186FA |
Alternator Model |
N-5 |
Fuel Consumption of 100% load |
275g/kw.h |
Fuel tank capacity(L) |
14 |
Voltage Regulation Rate |
≤±1% |
Random Voltage Rate |
≤±1% |
Frequency Regulation Rate |
≤±5% |
Random Frequency Variation |
≤±0.5% |
Dimension (silent type) |
940*545*655mm) |
Weight (silent type) |
180kg |
20' container qty(normal loading) |
72 |
40' HQ container qty (normal) |
144 |
Prime Power:
This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annul hours of operation and 10% overload power can be supplied for 1 hour in 12.
Standby Power:
This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.
Rated Voltage:
Available with customer requirements.
Engine Specifications |
Diesel Engine
Engine Model |
186FA |
Number of Cylinder |
Single |
Cylinder arrangement |
Vertical in-line |
Cycle |
Four Stroke |
Aspiration |
Natural Aspiration |
Bore×Stroke (mm×mm) |
86×72 |
Displacement (cc) |
418 |
Starting System |
Electric starting |
Continue Running Time |
≥9 hr |
Lubrication System |
Pressure splashed |
Lube. Oil Capacity |
1.65L |
Cooling System |
Air-cooled |
Fuel Tank Type |
With zinc-plated inside |
Total Lubrication System Capacity (L) |
418 |
Combustion System |
Direct Inject |
Fuel Consumption at 100% Load(g/kwh) |
275(at 3000RPM) |
Battery capacity(V-Ah) |
36 |
Alternator Specifications |
Alternator Model |
N-5 |
Alternator Brand |
China Stamford |
Exciter Type |
Brush, Self-excited |
Rated Output |
5kw |
Rated Speed |
3000RPM |
Rated Frequency |
50HZ |
Phase |
Single |
Rated Voltage |
230V (Available with customer requirements) |
Power Factor |
1 |
Voltage Adjust Range |
≥5% |
Voltage Regulation NL-FL |
≤±1% |
Insulation Grade |
F |
Protection Grade |
IP20 |
