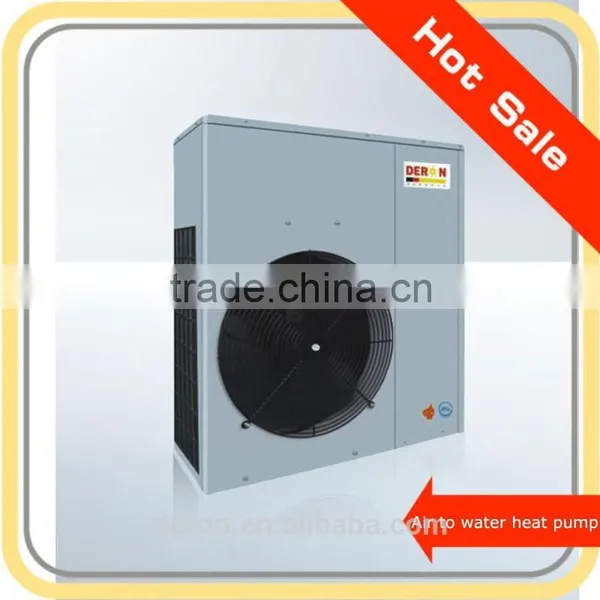

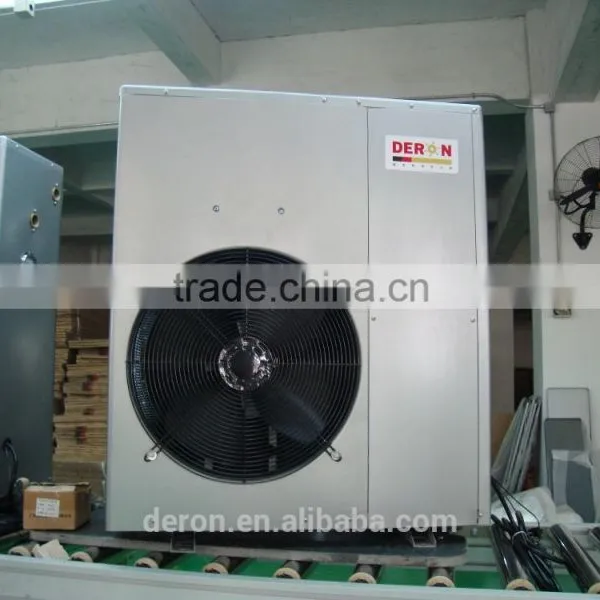

DERON Solar Heat Pump Air To Water With CE, SAI, SABS, CCC

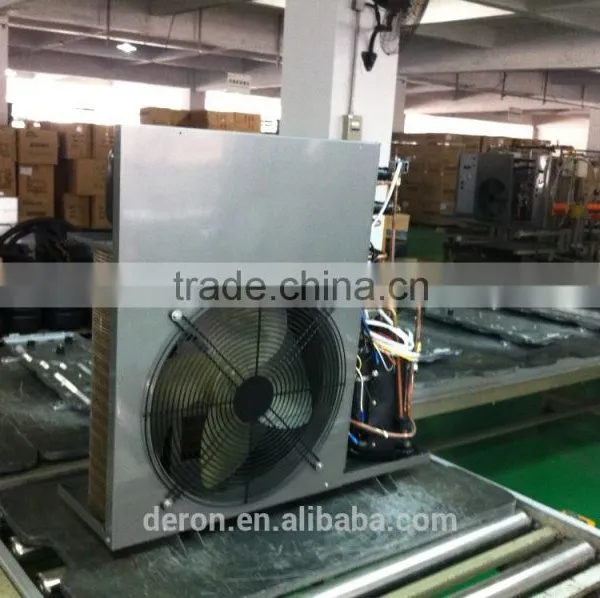

Small Heat Pump for Cold Area with Circulation Pump inside with CB&CE
1) Domestic compact design, with built-in circulation pump, simply installation and lower cost.
2) Can be connected with solar heating system as a back up heater.
3) 3 sets of timer function, flexible start-stop control.
4) Strengthened 1.0mm thickness well-coated casing, durable and anti-corrosion.

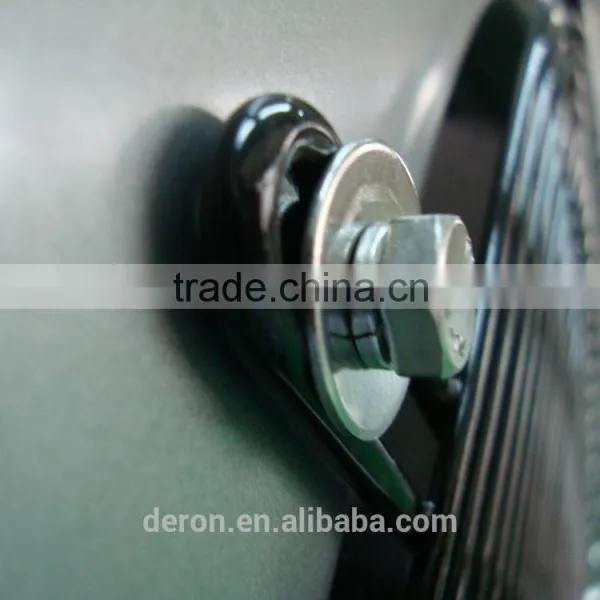

5) New gerneration fiber nylon fan, ultra quiet and indeformable.

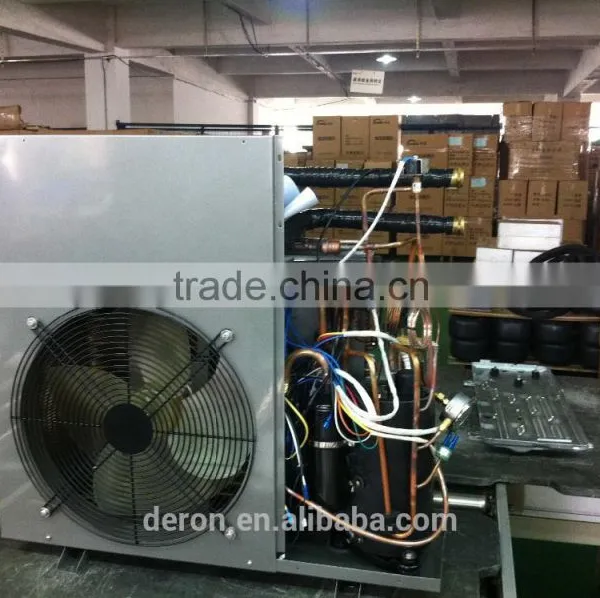

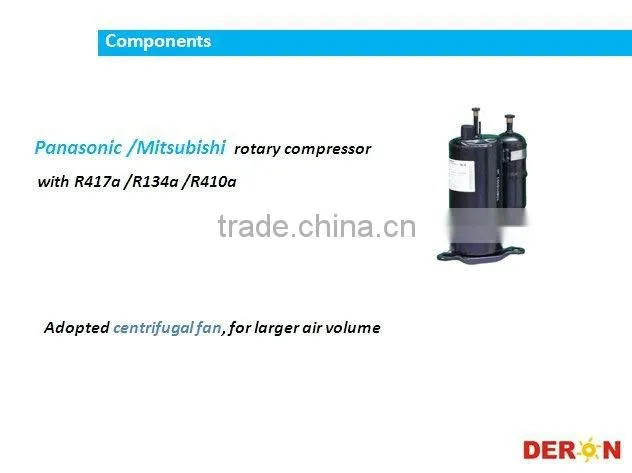

6) PANASONIC compressor, reliable brands and quality assured.
7) Golden evaporator, nice looking and stronger corrosion resistance.
8) Outstanding anti-frost performance with improved structure and control.

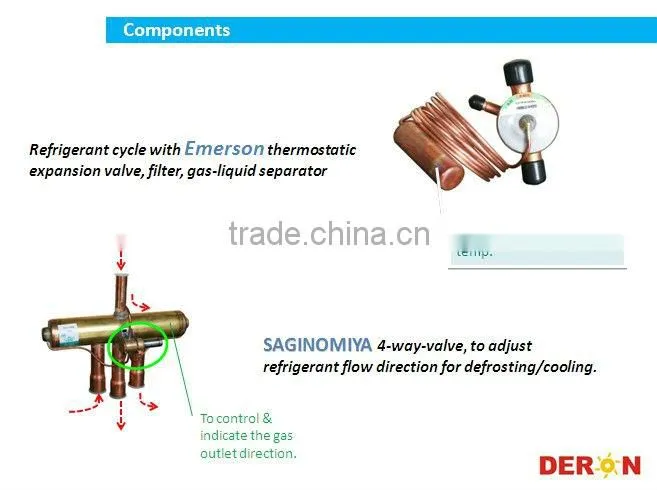

9) 4 way-valve revert circuit defrosting, with adjustable defrosting setting.
10) High purity imported DuPont R417a refrigerant, green R410a is also available.
11) COP up to 4.0.
12) Spare terminal for auxiliary heater.
heat pump with CE
| Model | DE-9WB | DE-13WB | DE-18WB | DE-27WB |
| Power supply(V/ph/Hz) | 220/1/50 | 220/1/50 | 220/1/50 | 220/1/50 |
| *Heating capacity(kw) | 3.8 | 5.2 | 7.2 | 10.8 |
| *Heating capacity(BTU) | 12280 | 17700 | 24560 | 24550 |
| Rated power input(kw) | 0.9 | 1.3 | 1.8 | 2.7 |
| **Heating capacity(kw) | 2.5 | 4 | 5.5 | 8.3 |
| **Heating capacity(BTU) | 8370 | 13600 | 18700 | 28160 |
| Rated power input(kw) | 0.8 | 1.14 | 1.6 | 2.2 |
| Water feed speed(L/h) | 82 | 110 | 155 | 232 |
| Max.current(A) | 6 | 9.5 | 13 | 19.5 |
| Refrigerant | R417A | |||
| Refrigerant weight(g) | 900 | 1200 | 1500 | 2000 |
| Level against electric shock | I | I | I | I |
| Water-proof grade | IPX4 | IPX4 | IPX4 | IPX4 |
| Net weight(kg) | 52 | 58 | 67 | 84 |
| Net size(mm)-(L*W*H) | 790*270*760 | 790*270*760 | 790*270*760 | 830*310*960 |
| Required water flow rate(m3/h) | 1.2 | 1.2 | 1.6 | 2 |
| Water connection | G3/4" | G3/4" | G3/4" | G1" |
| Operation temp.range(°C) | -10-45 | -10-45 | -10-45 | -10-45 |
| Noise dB(A) | ≤48 | ≤48 | ≤48 | ≤48 |
Test condition
*Heating:Ambient temp.(DB/WB):20°C/15°C; Water temp.(Initial/Final):15°C/55°C ;
**Heating:Ambient temp.(DB/WB)7°C/6°C; Water temp.(In/Out)30°C/35°C .
INSTALLATION
CERTIFICATES
Factory Scenes
