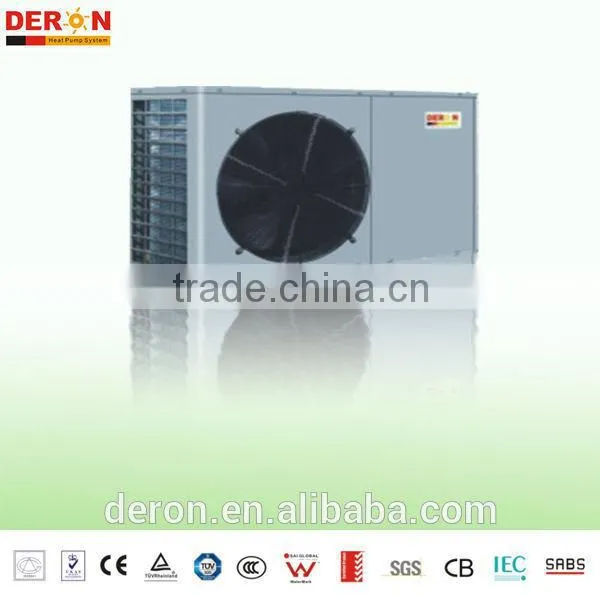

R417a water pump stainless steel air water heat pump Guangzhou

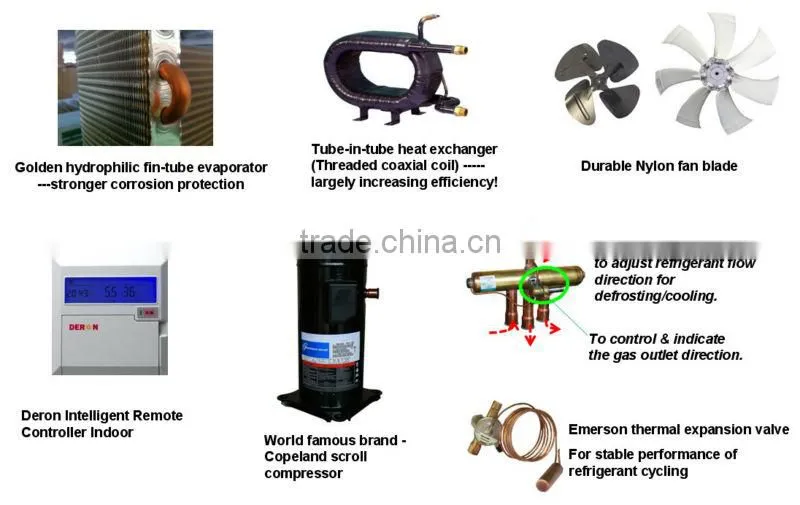

MAIN COMPONENT
PARAMETER LIST
| Model | DE-27W/CB | DE-36W/CB | DE-27W/CB | DE-36W/CB | DE-46W/CB |
| Power supply(V/ph/Hz) | 220/1/50 | 220/1/50 | 380/3/50 | 380/3/50 | 380/3/50 |
| *Heating capacity(kw) | 10.8 | 14.4 | 10.8 | 14.4 | 18.4 |
| *Heating capacity(BTU) | 24550 | 49130 | 24550 | 49130 | 62780 |
| Rated power input(kw) | 2.7 | 3.6 | 2.7 | 3.6 | 4.6 |
| **Heating capacity(kw) | 8.3 | 14.2 | 8.3 | 11 | 14.2 |
| **Heating capacity(BTU) | 28160 | 49130 | 28160 | 37830 | 48340 |
| Rated power input(kw) | 2.2 | 3.8 | 2.2 | 3 | 3.8 |
| Water feed speed(L/h) | 232 | 310 | 232 | 310 | 395 |
| Max.current(A) | 19.5 | 25 | 7.2 | 10 | 13 |
| Refrigerant | R22/R417A/R134a | ||||
| Refrigerant weight(g) | 2000 | 2300 | 2000 | 2300 | 2500 |
| Level against electric shock | I | I | I | I | I |
| Water-proof grade | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Net weight(kg) | 84 | 95 | 84 | 95 | 110 |
| Net size(mm) | 830*310*960 | 880*360*1050 | 830*310*960 | 880*360*1050 | 1120*425*1260 |
| Required water flow rate(m3/h) | 2 | 3 | 2 | 3 | 4 |
| Water connection | G1" | G1" | G1" | G1" | G1" |
| Operation temp.range(°C) | -10-45 | -10-45 | -10-45 | -10-45 | -10-45 |
| Noise dB(A) | ≤48 | ≤50 | ≤48 | ≤50 | ≤52 |
| Test Condition | *Heating:Ambient temp.(DB/WB):20°C/15°C; Water temp.(Initial/Final):15°C/55°C **Heating:Ambient temp.(DB/WB)7°C/6°C; Water temp.(In/Out)30°C/35°C |
||||

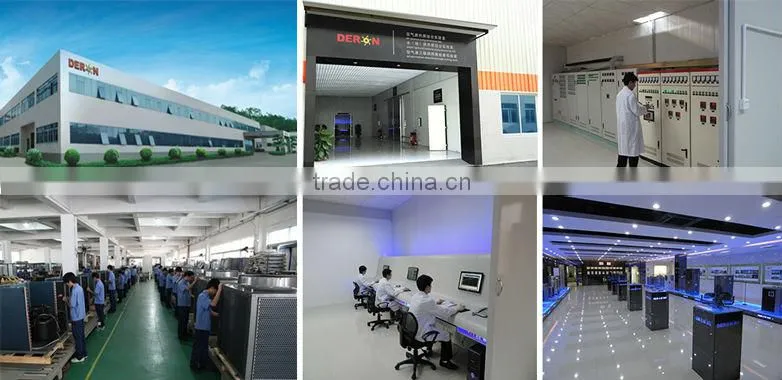

Guangzhou DERON Heat Source Facilities Co. Ltd is among the earliest companies to establish the heat pump R&D center in China; the factory area is 30,000 m2 and has about 300 employees, and its production capacity up to 120,000,000.00US dollars per year. Its national heat pump laboratory has been approved by TUV Germany. The company is also the strategic partner of Emerson-Copland Company from America.
All DERON heat pumps are processed with strict management system to ensure the quality and consistency. All the heat pumps like air to water heat pumps, water to water heat pumps, sell well in the global market.
CERTIFICATES(CE/ CB/ ISO 9001: 2008)
PACKAGING & DELIVERY
1) OEM
2) To accept the 1 set order and different payment
3) To arrange visiting company factory and technical conditions.
4) To arrange accommodation at hotel
5) To provide the transportation.
6) To arrange technical training and installation knowledge.
7) More requirements, please tell us!
Q1. Does your company have any quality certifications?
1) Yes, we have CE/ CB/ ISO 9001: 2008/ WATERMARK and so on.
Q2. Does your company have any advantage of heat pump?
1) Yes, we have applies the USAGE RIGHTS of Copeland compressor that is from American Brand. It is signed by our boss with Copeland Company in U.S.A, in 2010.
2) We have our own factory that specialized in heat pump over 9 years in Guangzhou, China. The factory has a big area more than 3000 square meter and 300 employees.
3) We have the Laboratory where have the advanced TESTING EQUIPMENT which is introduced by Germany.
Q3. If you have any professional questions, you can Click “Send”.
Our products have been widely sold to more than 30 countries and enjoyed good sales in the markets.
♥ If you want to know more about our products welcome to contact us in any time, And welcome to Deron company!
Contact :Alyssa Wu
Sales manager
Guangzhou DERON Heat Source Facilities Co. Ltd
Tel: +86-(20)2868-5678-6004
Fax: +86-(20)2868 5651
Skype: alyssa-wu104
QQ: 470015017
