Specifications
air source heat pump with grundfos pump insideDaikin or Copeland compressor
work in -10~45degree
Easy installing
low niosy
China supplier air source heat pump
with grundfos pump inside

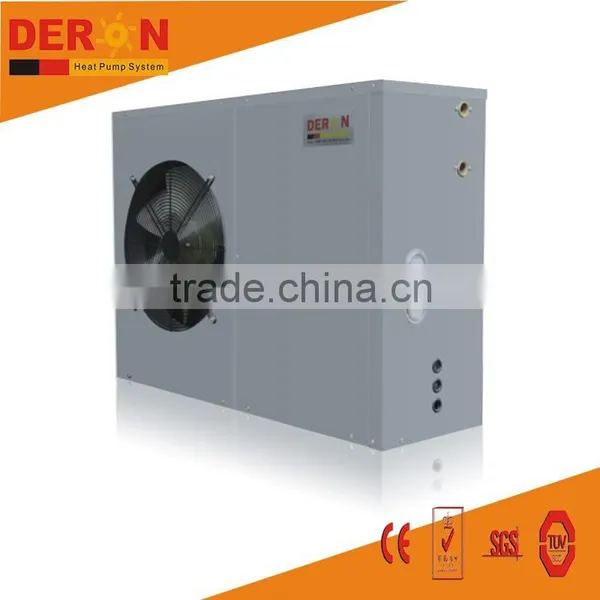

Model:DE-36WB
product instroduction:
This series of Air to Water Heat Pump adopts high efficiency tube-in tube heat exchanger and built-in water pump , which ensures not only high efficiency performance of the system but also easy installation work. Just simply connect the heat pump unit to the water tank through water piping.
It can supply sanitary hot water for bathroom or central house heating. These units have got CE approval
Product Features:
1) Built-in highly efficient tube-in-tube heat exchanger and WILO/Grundfos water pump.
2)Compact design, easier for installation
3) Outstanding and high efficiency anti-frost performance with improved structure and control.
4) Optional auxiliary electric heater or solar heater control function is inside, as a standby of heat pump.
5) 3 sets of timer function, flexible start-stop control.
6) Strengthened 1.0mmthickness well-coated casing, durable and anti-corrosion.
7)Golden evaporator, nice looking and stronger corrosion resistance.
8) Easy installation: can be placed on roof top, balcony, yard, or basement.
9) Economical operation: Generally cost less to operate than other types of conventional heating systems, save your electricity or gas bills.
10) General testing and operational test carried out for every unit to ensure the superior quality and feature before well package in factory.
Main components:

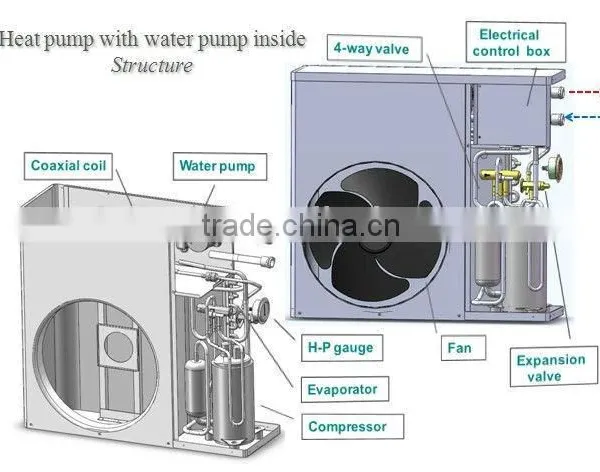

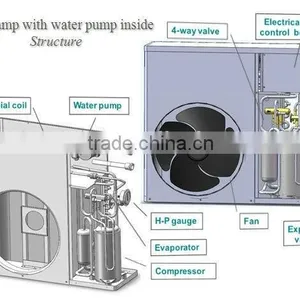

basic device:
parameters list:
| Model | DE-36WB | |
| Power supply | V/Ph/Hz | 380/3/50 |
| 1)Heating capacity | kW | 13.8 |
| BTU | 47086 | |
| Rated power input | kW | 3.6 |
| 2)Heating capacity | kW | 11 |
| BTU | 37532 | |
| Rated power input(kw) | kW | 3 |
| Refrigerant | R410A | |
| Compressor | Type | Scroll |
| Fan | Qty | 1 |
| Required hot water flow rate | m3/h | 3 |
| Water connection | G1" | |
| Noise | dB(A) | ≤50 |
| Max. current | A | 7.5 |
| Max. water temp. | ℃ | 60 |
| Operation temp. range | ℃ | -10-45 |
| Net weight | kg | 95 |
| Net size(L/W/H) | mm | 1195×390×920 |
| 1)Heating by Ambient temp.(DB/WB):20℃ /15℃ and Water temp.(in /out): 15℃/55℃; | ||
| 2)Heating by Ambient temp.(DB/WB):7℃ /6℃ and Water temp.(in /out): 30℃/35℃; | ||
| Above information just for your reference, Please subject to the nameplate on the unit | ||
| Refrigerant is optional | ||
Company information:
There has been over 8 years of heat pump manufacture experience by Deron!
we are a golden supplier which has got certificate from TUV and .
1. Over 8 years of Heat pump production.
2. Passed ISO9001:2012 and TUV, CE, EN14511 Certificate
3. Got 3 National standard laboratories passed TUV certificate
4. Has a branch office in Frankfurt Germany.
5. Provide Professional and flexible OEM service.

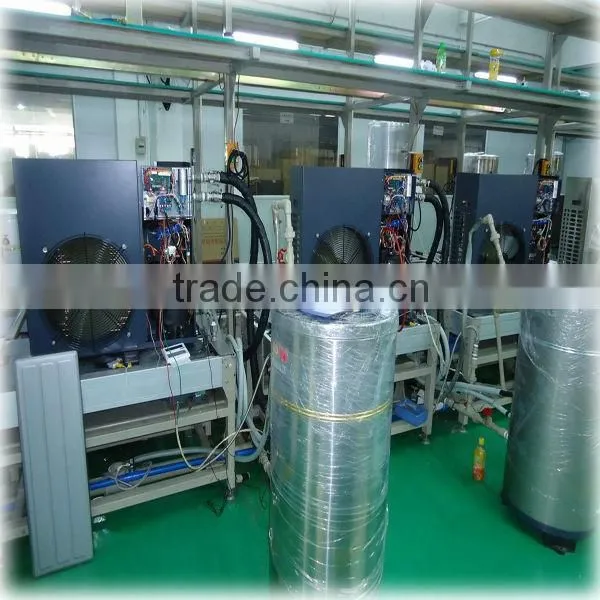

Producing line:
Installation view:
Packaging and shipping:
Warranty:
Air-water heat pump: 18 months
Water-water heat pump: 18 months
Swimming pool heat pump: 24 months
♥ If you want to know more about our products, you could contact us anytime. And welcome to visit Deron company!
