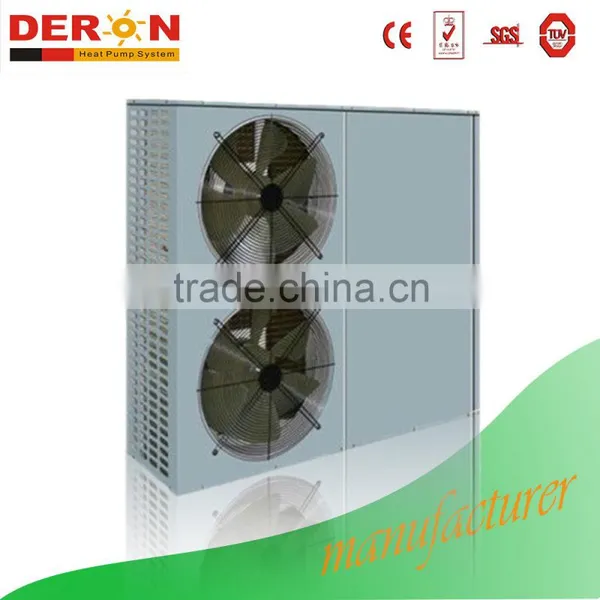

Deron air to water heat pump hammam spa ptac for hotel
Model:DE-46WB
This series of Heat Pump adopts high efficiency tube-in tube heat exchanger and built-in water pump , which ensures not only high efficiency performance of the system but also easy installation work. Just simply connect the heat pump unit to the water tank through water piping.
It can supply sanitary hot water for bathroom or central house heating. These units have got CE approval.
1)Adjustable defrosting according to different weather conditions (with four way valve inside).
2)Optional auxiliary electric heater or solar heater control function is inside, as a standby of heat pump.
3) With auxiliary heating control, circulation pump control and timer function.
4) General testing and operational test carried out for every unit to ensure the superior quality and feature before well package in factory
5) Multiple protections to protect the compressor and the heat exchanger, like anti-freezing protection, water flow protection, over high pressure protection, over low pressure protection insufficient water flow protection etc.
6) Anti-corrosion case: durable coating case or stainless steel case; all case with stainless steel bolts and nuts.
7) Safety: Operate at a high efficiency with no flames, fumes, or flues; Water and electricity isolated.
8) Easy operation: With intelligent control systems which convenient and simple operation
9) Economical operation: Generally cost less to operate than other types of conventional heating systems, save your electricity or gas bills.
10)Environment protection: No pollution and waste needs to discharge in entire working cycle.
11)Modular and diversifying design: We can add on more units or design heat pumps according to customers’ requirement.
Fan:
Super high-stream fan
Silent fan unit
Al-Mg motor with Nylon blades
Evaporator:
Golden hydrophilic Al-fin + Cu-tube evaporator
Strong anti-corrosion
Enlarged area
High-efficiency
Condenser:
Tube-in-tube (threaded coaxial coil)+ 316L# stainless steel plate
High efficiency
High heat transfer surface efficient
High flow turbulence in the fluids
Lower heat loss
Strong erosion proof
| Model | DE-46WB | |
| Power supply | V/Ph/Hz | 380/3/50 |
| 1)Heating capacity | kW | 17.5 |
| BTU | 59710 | |
| Rated power input | kW | 4.6 |
| 2)Heating capacity | kW | 14.1 |
| BTU | 48109 | |
| Rated power input(kw) | kW | 3.9 |
| Refrigerant | R410A | |
| Compressor | Type | Scroll |
| Fan | Qty | 2 |
| Required hot water flow rate | m3/h | 4 |
| Water connection | G1" | |
| Noise | dB(A) | ≤52 |
| Max. current | A | 10 |
| Max. water temp. | ℃ | 60 |
| Operation temp. range | ℃ | -10-45 |
| Net weight | kg | 110 |
| Net size(L/W/H) | mm | 1345×350×1260 |
| 1)Heating by Ambient temp.(DB/WB):20℃ /15℃ and Water temp.(in /out): 15℃/55℃; | ||
| 2)Heating by Ambient temp.(DB/WB):7℃ /6℃ and Water temp.(in /out): 30℃/35℃; | ||
| Above information just for your reference, Please subject to the nameplate on the unit | ||
| Refrigerant is optional | ||
we are a golden supplier which has got certificate from TUV and .
1. Over 8 years of Heat pump production.
2. Passed ISO9001:2012 and TUV, CE, EN14511 Certificate.
3. Got 3 National standard laboratories passed TUV certificate.
4. Has a branch office in Frankfurt Germany.
5. Provide Professional and flexible OEM service.
--- Energy efficient
Reduce energy cost and greenhouse gas emission.
--- Safety
Water and electricity isolation technology and comprehensive protection, like anti-freezing protection, water flow protection, high/low pressure protection, phase sequence protection etc.
--- Convenience and economic
A perfect substitute for solar panels, electric & gas water heaters.
Can be installed where solar roof collectors aren’t suitable and looks better.
Less electricity and running cost, an ideal upgrade from the traditional water heaters.
---Strict quality control
ISO industry standards.
Standard & strict manufacture process.
Every product must be tested and double checked before package.
---Eligible for trade and distribution
CE, CB, CCC, WATERMARK, SAA, AUSTRALIA STANDARD, etc.
---Customer orientation
DERON provide you optimized solutions and product customization as well as globalized customer services.
--- Satisfaction guarante
18 months warranty for air-to-water heat pumps and water-to-water heat pumps, and 24 months special for swimming pool heat pumps.
Please don’t hesitate, click right now! Deron is your best choice.
We welcome your visit to our factory.
