Specifications

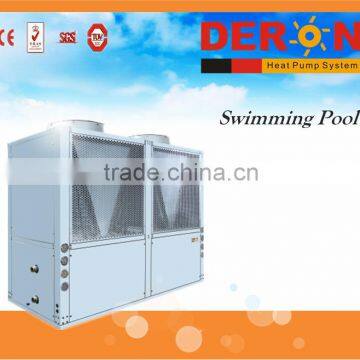

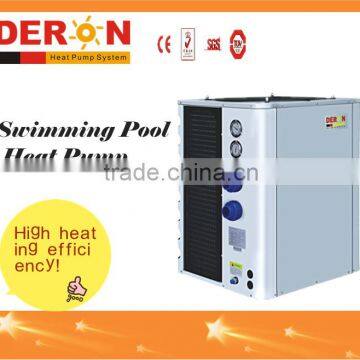

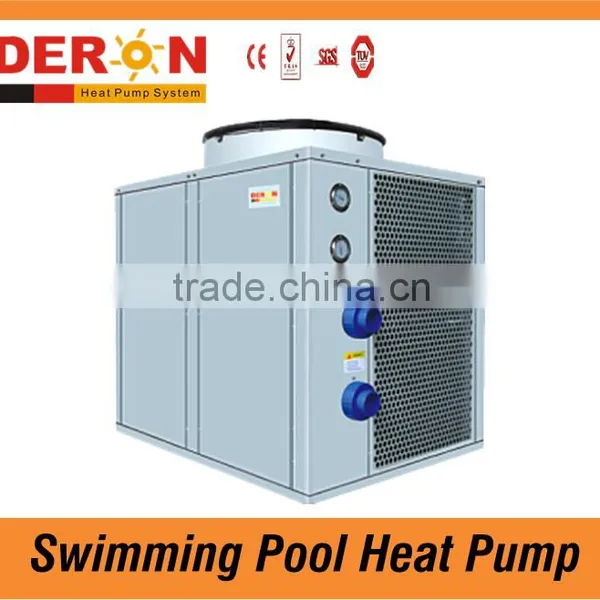

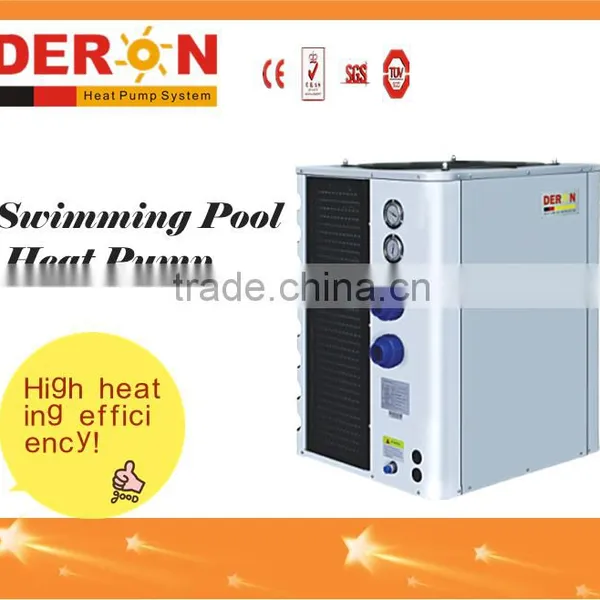

China Manufacturer Air to Water Air Source Swimming Pool Heat Pump Hot Water Heater Pool Heat Pump China Swimming Pool Heat PumpChina Manufacturer Air to Water Air Source Swimming Pool Heat Pump Hot Water Heater
Model: DE-105W/DY
Over 8 Years of Manufacture Experience!
Product Features:
1) The 100% titanium heat exchanger use seamless pure titanium tube as heat conductor, can ensure the titanium heat exchanger used for a long time without any cost in the after-sale services.
2) The well-known brand throttling device-Emersonexpansion valve are included, it can control the refrigerant flow accurately.
3) Adjustable defrosting according to different weather conditions (with four way valve inside).
4)Water flow switch of pool heat pump is optional .
5) Special design for the fan shroud, with accurate and equal distance between the fan blades and the fan shroud, low vibration, and low noise when running.
6)Compact design and accurate workmanship for fixing the case with bolts and nuts, no damage to the case coating, avoiding corrosion and rust to the case.
7) Multiple protections to protect the compressor and the heat exchanger, like anti-freezing protection, water flow protection, over high pressure protection, over low pressure protection insufficient water flow protection etc.
8) General testing and operational test carried out for every pool heat pump unit to ensure the superior quality and feature before well package in factory.
9) Modular and diversifying design: We can add on more units or design heat pumps according to customers’ requirement.

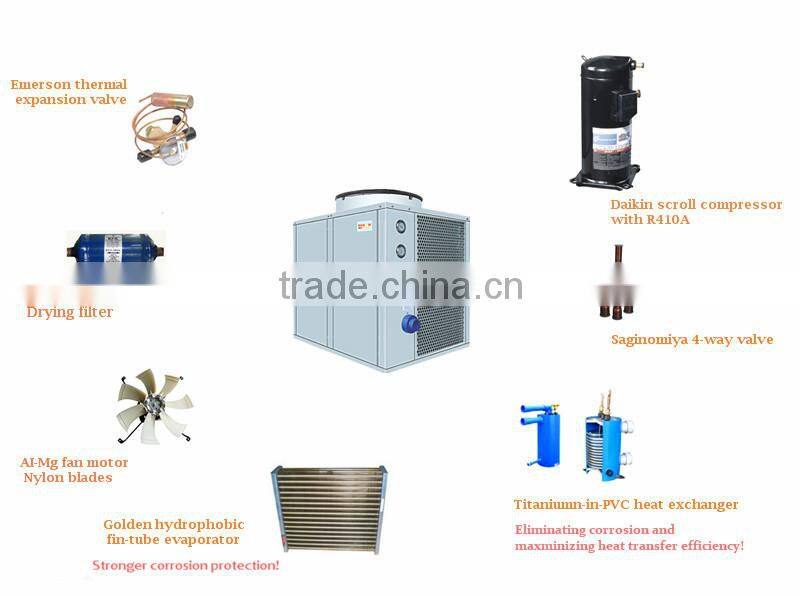

Adopting excellent components, guarantee the best quality!
Parameters List
| Model | DE-105W/DY |
| Power supply(V/ph/Hz) | 380/3/50(60) |
| Heating capacity(kw) | 46.5 |
| Heating power input(kw) | 8.2 |
| Cooling capacity(kw) | 29.4 |
| Cooling power input(kw) | 10.5 |
| Refrigerant | R410a |
| Refrigerant weight* compressor number(g) | 2500*2 |
| Max.current(A) | 30 |
| Rated water temp.(°C) | 28 |
| Level against electric shock | I |
| Water-proof grade | IPX4 |
| Net weight(kg) | 290 |
| Net size(mm) | 1200*920*1425 |
| Required water flow rate(m3/h) | 15 |
| Water connection(mm) | 63 |
| Operation temp.range(°C) | -10-45 |
| Noise dB(A) | ≤65 |
| Test condition |
Heating:Ambient temp.(DB/WB):20°C/15°C Cooling:Ambient temp.(DB/WB):35°C/24°C |

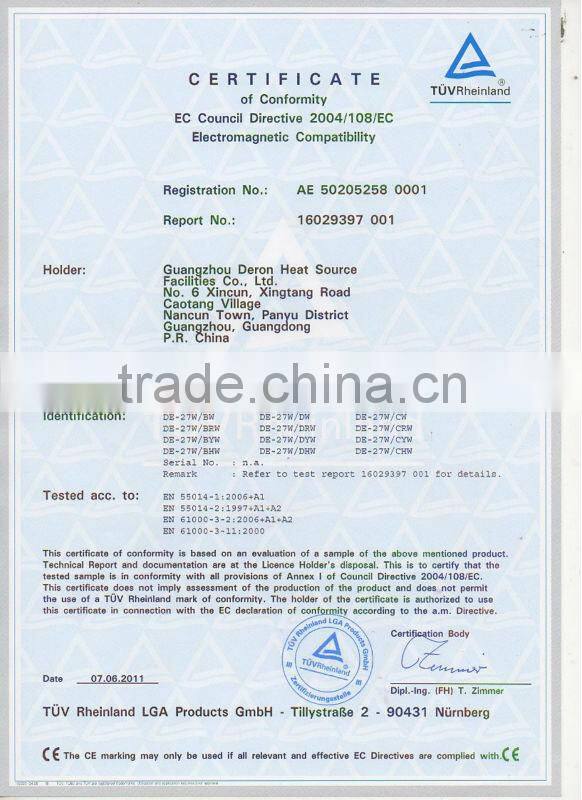

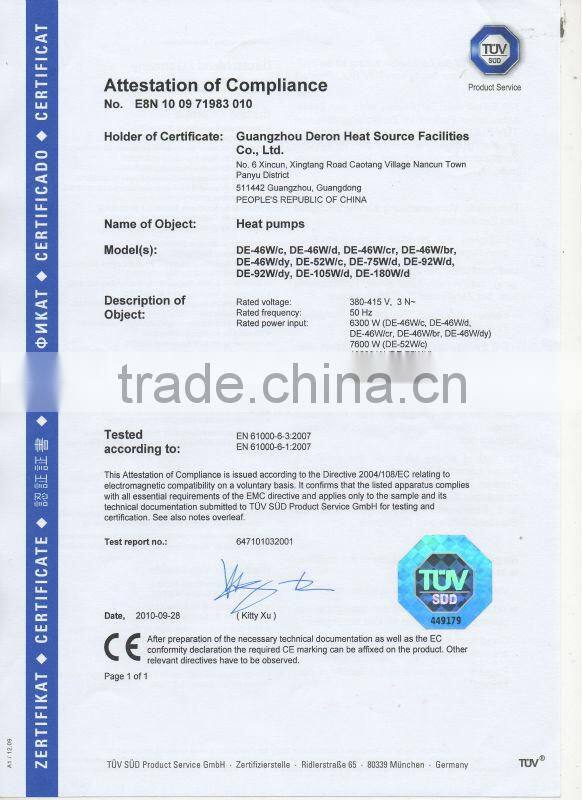

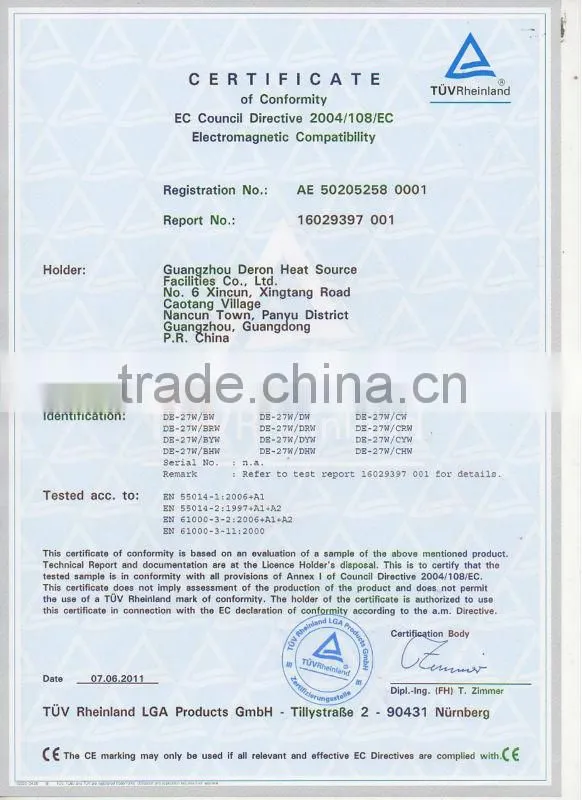

Certificates

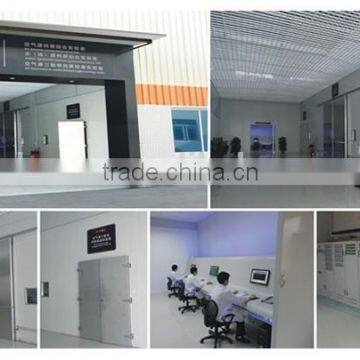

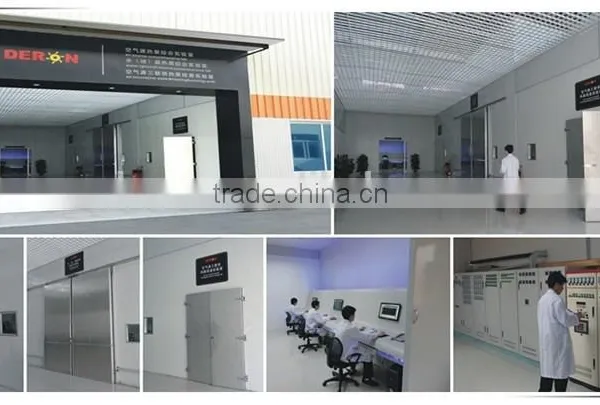

R&D Center
Three World-class Laboratories approved by TUV and EN14511.

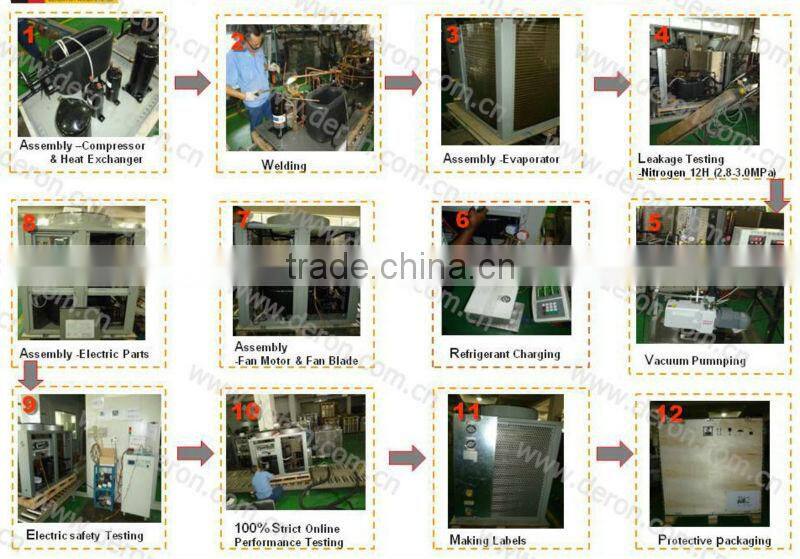

Strict Producing Line

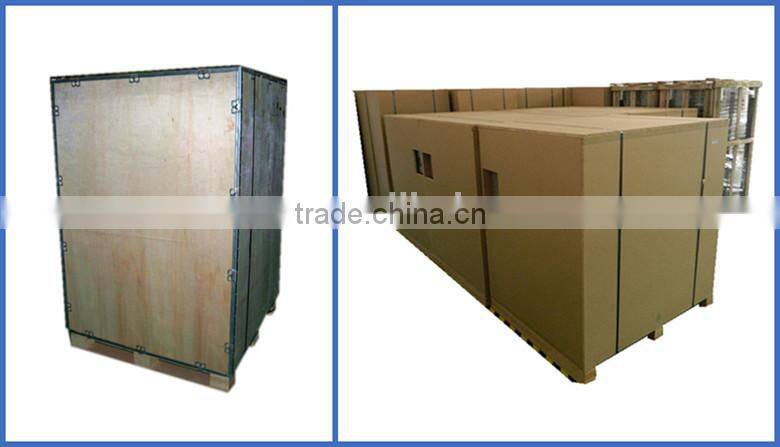

Package
Shipment

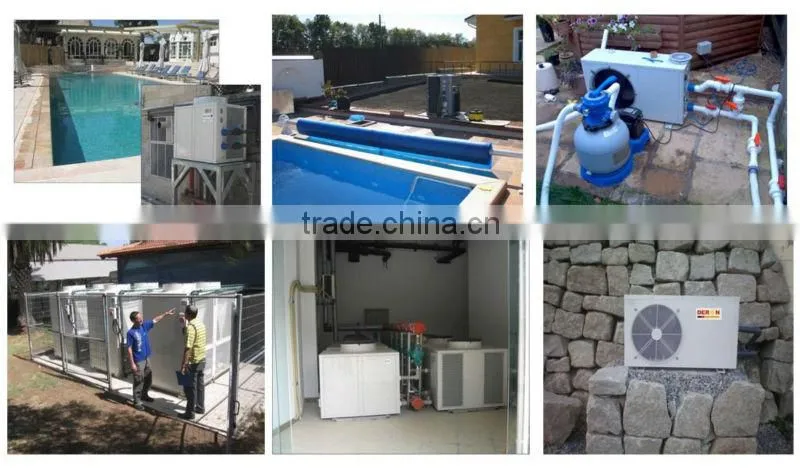

Installation Case

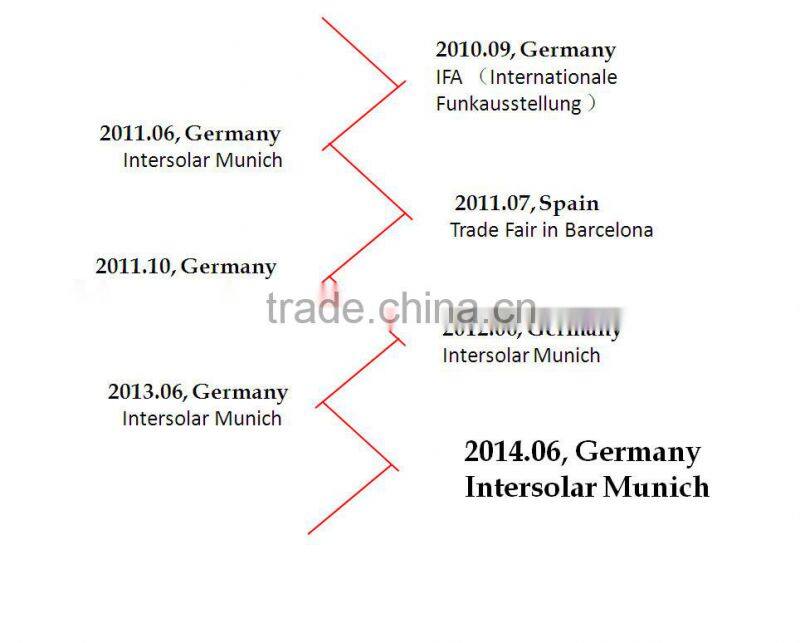

Exhibitions
Appreciations from Clients
Warranty
Air-water heat pump: 18 months
Water-water heat pump: 18 months
Swimming pool heat pump: 24 months
♥ If you want to know more about our products, you could contact us anytime. Your questions are highly appreciated and welcome to visit Deron company!
