Kitchen Water Heater Air to Water Heat Pump R407c Air Source Heat Exchanger With Fan for Hot Water Room Heating Cooling
US$ 600 - 8,215
MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Other, Air Source Heat Pump, air to water heat pump r407
Installation:
Freestanding
Storage / Tankless:
Storage
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DeronCE,CB.ROHS Certification Gas Air to Water Heat Pump Water HeaterUS$ 1,200 - 9,000MOQ: 1 Set -
Hot Water and Heating/cooling Heat PumpNegotiableMOQ: 1 Set
-
Deron High Cop Heat Recovery Air Source Heat Pump Water Heater and Water Chiller With CEUS$ 1,000 - 12,000MOQ: 1 Unit
-
Deron High Capacity Multifunctional Heatpump for Hot Water/cooling/heatingUS$ 1,500 - 9,000MOQ: 1 Set
-
China Top 10 Hot Sale Product Air Source Heat Pump Water Heater R410a Refrigerant for Hot Water Floor Heaing and House CoolingUS$ 999 - 3,999MOQ: 1 Set
Type
Other, Air Source Heat Pump, air to water heat pump r407
Installation
Freestanding
Storage / Tankless
Storage
Housing Material
Other, coated steel casing/stainless steel casing
Use
Other, Hotel/Villa/School/Hospital/Resterant/House building
Certification
CE, EMC
Place of Origin
Guangdong, China
Brand Name
DERON
Model Number
DE-46W/CR
kitchen water heater air to water heat pump r407c air source heat exchanger with fan for hot water room heating cooling

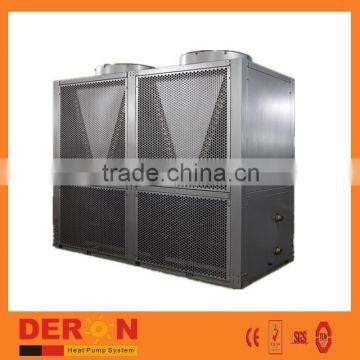

Model: DE-46W/CR
This series of Air Source Heat Pump with heating &cooling function is specially designed for house heating& sanitary hot water for bathroom in cold areas, and cooling& sanitary hot water in the hot weather.
1.5 modes: Cooling + hot water, Heating + hot water, Single cooling, Single heating, Single hot water
2.It can work in -10°C~45°C
3.Hot water output temp. 60°C.
4.refrigerant: R410A/r407C
5.Comprehensive protection
6.Anti-corrosion case: coating case or stainless steel case; all case with stainless steel bolts and nuts.
7.Every heat pump must be tested to guarantee the good quality and feature before package.
8. Two seperated heat exchangers, one for space heating/cooling, the other for hot water
| Model | DE-27W/CR | DE-36W/CR | DE-46W/CR | ||
| Power supply | V/Ph/Hz | 380/3/50 | 380/3/50 | 380/3/50 | |
| Heating | 1)Heating capacity | kW | 8 | 10.8 | 13.5 |
| BTU | 27296 | 36850 | 46062 | ||
| Rated power input | kW | 2.7 | 3.7 | 4.6 | |
| Cooling | 2)Cooling capacity | kW | 7.5 | 10 | 12.5 |
| BTU | 25590 | 34120 | 42650 | ||
| Rated power input | kW | 2.8 | 3.85 | 4.8 | |
| Hot water | 3)Heating capacity | kW | 10.8 | 15 | 19 |
| BTU | 36850 | 51180 | 64828 | ||
| Rated power input | kW | 2.7 | 3.75 | 4.75 | |
| Refrigerant | R410A | R410A | R410A | ||
| Compressor | Type | Scroll | Scroll | Scroll | |
| Fan | Qty | 1 | 1 | 1 | |
| Required cool water flow rate | m3/h | 2 | 3 | 3 | |
| Required hot water flow rate | m3/h | 2 | 3 | 3 | |
| Water connection | G1" | G1" | G1" | ||
| Noise | dB(A) | ≤56 | ≤58 | ≤58 | |
| Max. current | A | 7.5 | 10 | 13 | |
| Max. water temp. | °C | 60 | 60 | 60 | |
| Operation temp. range | °C | -10-45 | -10-45 | -10-45 | |
| Net weight | kg | 125 | 150 | 150 | |
| Net size(L/W/H) | mm | 755×545×1490 | 900×595×1490 | 900×690×1490 | |
| 1)Heating by Ambient temp.(DB/WB): 7°C /6°C and Water temp.(in/out): 40°C/45°C; | |||||
| 2)Cooling by Ambient temp.(DB/WB): 35°C /24°C and Water temp.(in/out): 12°C/7°C; | |||||
| 3)Heating by Ambient temp.(DB/WB): 20°C /15°C and Water temp.(in/out): 15°C/55°C; | |||||
| Above information just for your reference, Please subject to the nameplate on the unit | |||||
| Refrigerant is optional | |||||
♥Welcome to contact us for more information about Deron heat pump!
