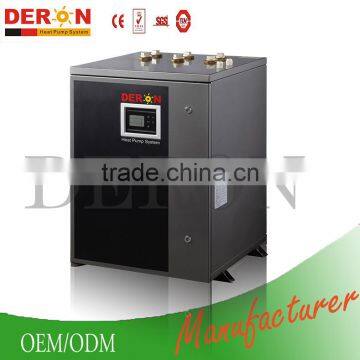

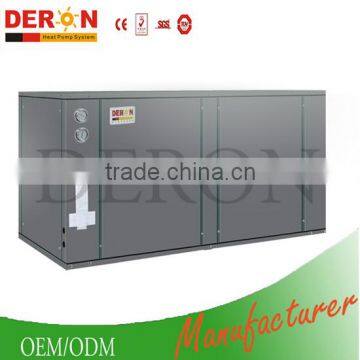

R417A R410A R407C hot water house heat pump heater low temperature geothermal heat pump ground water
More than 10 years manufacturing experience!
Model:75W/SBE
Ground source heat pump Instroduction:
Ground source heat pump absorbs energy from underground and then transfers it into water. It can also take the energy from the water and transfer it to the ground. It can supply sanitary hot water for bathroom or central heating/cooling to under floor heating pipes or fan coils.
The ultra quiet design makes the whole compressor and heat pump system on a floating plate, leads to a compete isolation from the heat pump bottom, and reduce vibration and noise at the most extent. That is to say, Deron new water to water heat pump is ideal for indoor installation.These units have got CE approval.
Ground source heat pump Features:
1) Water to water design, hot water outlet up to 60 deg.C, suitable for floor heating and radiator, as well as domestic sanitory hot water.
2)Fashionable& noble appearance: the design is completely a household application style in European market. the control panel is light-touch pad type and with Invisible-screw design.
3) Built-in heat curves (temperature compensation function), water temperature set value changes as per outdoor temperature.
4) Ultra quiet design, the whole heat pump system is on a floating plate isolated from the heat pump cabinet to reduce vibration and noise at the most extent. The inside is with noise absorption layers, lower noise.
5) The controller is equipped with auxiliary heating terminal for the central heating cycle. This function is much necessary in cold winter. This function can be enabled or disabled by parameter setting.
6) Multiple protections to protect the compressor and the heat exchanger, like anti-freezing protection, water flow protection, over high pressure protection, over low pressure protection insufficient water flow protection etc.
7) General testing and operational test carried out for every unit to ensure the superior quality and feature before well package in factory.
Ground source heat pump main components:
Parameter:
| Model | DE-150W/SBE | |
| Power supply | V/Ph/Hz | 380/3/50 |
| 1)Heating capacity | kW | 35 |
| BTU | 119420 | |
| Rated power input | kW | 8.7 |
| 2)Heating capacity | kW | 34.2 |
| BTU | 116690 | |
| Rated power input | kW | 10.2 |
| 3)Heating capacity | kW | 31.5 |
| BTU | 107478 | |
| Rated power input | kW | 12.6 |
| 4)Heating capacity | kW | 26.7 |
| BTU | 91100 | |
| Rated power input | kW | 12 |
| Refrigerant | R410A | |

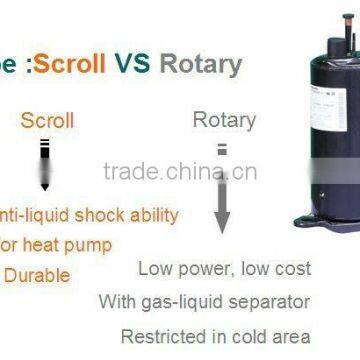

| Compressor | Type | Scroll |
| Required hot water flow rate | m3/h | 12 |
| Required water source flow rate | m3/h | 9.6 |
| Water connection | G2" | |
| Noise | dB(A) | ≤45 |
| Max. current | A | 37 |
| Max. water output temp. | ℃ | 60 |
| Water source temp. range | ℃ | -5~35 |
| Net weight | kg | 360 |
| Net size(L/W/H) | mm | 1560×1000×1380 |
| 1)Heating by Ground/Brine source temp.In:0℃ and Water temp. (In/Out):30℃/35℃; | ||
| 2)Heating by Ground/Brine source temp.In:0℃ and Water temp. (In/Out):40℃/45℃; | ||
| 3)Heating by Ground/Brine source temp.In:0℃ and Water temp. (In/Out):50℃/55℃; | ||
| 4)Heating by Ground/Brine source temp.In:-5℃ and Water temp. (In/Out):50℃/55℃ | ||
| Above information just for your reference, Please subject to the nameplate on the unit | ||
| Refrigerant is optional | ||
Internal structure:
Certificates:
Quality control:
1) Complying with ISO9001 quality system.
2) TUV attestation for laboratory.

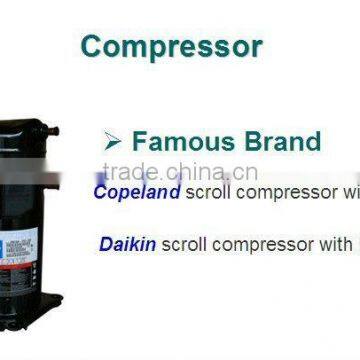

3) Using world famous Copeland/Daikin compressor.
4) Complete Inspection covering water system and electricity, ensuring stable hot water production.
5) Equipped with high efficient compressor jacket for heat preservation.

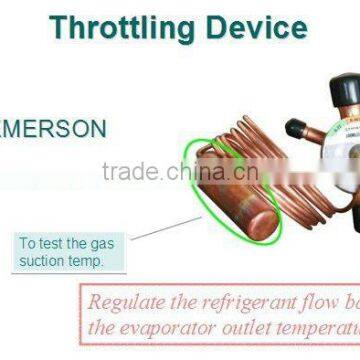

6) Electric Expansion valve with accurate flow control and gas distribution.
Installation diagram:
Packaging & Delivery:
Delivery Time: 25 working days after receipt of T/T deposit
Company information:
we are a golden supplier which has got certificate from TUV and .
1. Over 8 years of Heat pump production.
2. Passed ISO9001:2012 and TUV, CE, EN14511 Certificate.
3. Got 3 National standard laboratories passed TUV certificate.
4. Has a branch office in Frankfurt Germany.
5. Provide Professional and flexible OEM service.
Exhibition:
Our promise:
--- Energy efficient
Reduce energy cost and greenhouse gas emission.
--- Safety
Water and electricity isolation technology and comprehensive protection, like anti-freezing protection, water flow protection, high/low pressure protection, phase sequence protection etc.
--- Convenience and economic
A perfect substitute for solar panels, electric & gas water heaters.
Can be installed where solar roof collectors aren’t suitable and looks better.
Less electricity and running cost, an ideal upgrade from the traditional water heaters.
---Strict quality control
ISO industry standards.
Standard & strict manufacture process.
Every product must be tested and double checked before package.
---Eligible for trade and distribution
CE, CB, CCC, WATERMARK, SAA, AUSTRALIA STANDARD, etc.
---Customer orientation
DERON provide you optimized solutions and product customization as well as globalized customer services.
--- Satisfaction guarantee
18 months warranty for air-to-water heat pumps and water-to-water heat pumps, and 24 months special for swimming pool heat pumps.
Please don’t hesitate, click right now! Deron is your best choice!
We welcome your visit to our factory. http://deron.en./contactinfo.html
