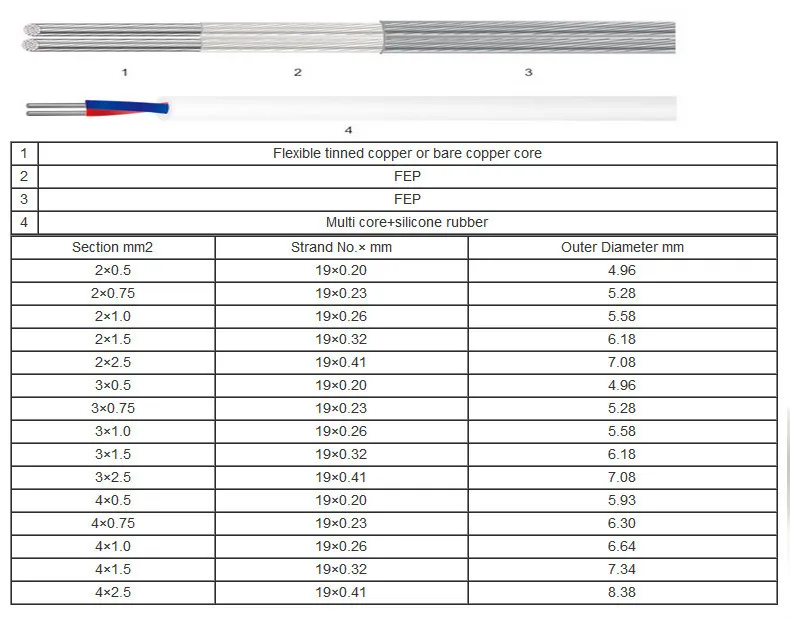

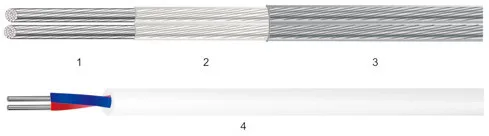

2 core FEP+FEP Silicone Coated insulated Teflon cable wire
Flexible tinned copper or bare copper core
FEP
FEP
Multi core+silicone rubber
Technical Data:
Rated Voltage: 300/500V
Testing Voltage:4000V
Rated Temperature: -60℃~+180℃,peaks to 230 ℃
Conductor Material:Flexible Tinned Copper or Bare Copper Core
Insulation Material: FEP
Colours: Available in Color
Capability:
Excellent corrosion resistance, almost insoluble in any organic solvent, oil resistance, acid and alkali resistance, strong oxidizing agent
Excellent electrical insulation performance of high voltage
Small loss at high frequency, no moisture absorption, insulation resistance
Excellent flame resistance, aging resistance
Long service life
Application:
Wiring of electrical household appliance
Lamps
Electrical equipment and high temperature environment ,etc.
The cable is capable of withstanding short surges of several times these ratings.
As an idea of what size is used for what, here is a guide to what we use it for:
10AWG - Big lipos >5,000mAh
12AWG - Big lipos >3,300mAh, biggest that will fit 4mm bullets, etc.
14AWG - Most common, used on SubC NiMH packs, lipos >2,000mAh, motors etc.
16AWG - Airsoft mini batteries, Lipos >1300mAh
18AWG - AA power packs, Lipos >1,000mAh
20AWG - Small power packs, thickest wire that will fit JST connector, Mini-T connectors etc.
22AWG - Receiver batteries, commonly used for Futaba, JST etc connectors, LED & low power lighting
24AWG - Light weight receiver batteries, LED lighting.
1.Certifications:Chinawye is ISO9001:2008,ISO14001,SGS certified company ,and all our materials are
UL,CUL,VDE,CCC,CE,F－MARK,ROHS certified;
2.Capabilities:
1).Custom Design,
2).High temperature(Mica,Fiberglass)wires and cables;
3).High temperature silicone wires and cables;
4).High temperature Teflon(FEP,PFA,PTFE)lead wires and cables;
5).Silicone rubber tubes;
6).Fiberglass sleeves;
7).Insulation material,etc.
3.Small Order:Welcomed
4.Payment: For the sample,100% T/T,Western Union,Paypal or Alibaba Trade Assurance in advance; For the mass production,50% T/T in advance.The balance before shipment.
5.Package: Fine Packaging Will Be Used For Your Goods:
1).Our Exporting Standard Packaging:
Making roll/coil+Packaging film+Carton Box+Pallet;
2).Custom Packaging:All the cartons we used are ultrahard and thicken
6.Quality Guarantee:Quality is our soul!Normally,we can make the products higher quality than your requested standard.
7.Delivery: Normally3~5 days for samples,it will depend on when you place the order and at that time if our production is busy or free. After all the sample confirmed, 7~15 days for the mass production.However,we'll do our best to speed up with not low the quality.
8.QC:100% strict control during every process,and carefully inspect one by one before shipment. The inspection report can be provided to you.
9.Shipment: By express,by air or by sea as your request.
10.Customer Service:Perfect Service(an excellent team serving you) 24*7 hours available.
