Product Name: CCC tinned copper heat resist silicone rubber wire

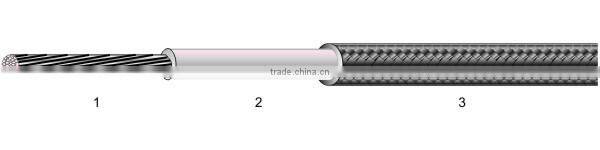

Material:
Conductor:Flexible tinned copper or bare copper core
Insulation:Silicone rubber
Jacket: Fiberglass Braid With Silicone Impregnate Coating
Characteristics:
Feature: (1)Applicable for internal wiring,Not for immersed applications.
(2)Superior flexibility.
(3)Good resistance to thermal shock and UV.
(4)Excellent ageing resistance.
Application: (1)Wiring of electrical household appliance
(2)Lamps
(3)Electrical equipment and high temperature environment
(4)General electronics, electrical equipment, computer internal connection
Specilication:
Rated Voltage:300/500V
Testing Voltage:2KV
Rated Temperature:-60℃+200℃,peaks to 230℃
Information Included In This Catalog Is Intended As A Guideline Only.
For Applications That Require Tight Tolerances, Please Contact Us For Verification.
Technology Data:
Items |
Technical datas |
Applied standard |
||
Outer appearance |
Smooth, even, without loose |
UL 758
|
||
Spark test |
AC5KV/ 0.15 S |
|||
Vol. test |
1.5KV/1 min |
|||
mechanical properties of insulation material |
Before aging |
Tensile strength |
≥3.45N/mm² |
|
elongation at break |
≥100% |
|||
After aging |
Tensile strength |
60% of the tensile strength before aging |
||
(210±1℃×1440h) |
elongation at break |
25% of the elongation before aging |
||
Poisonous substance control |
Comply with ROHS rule |
EU—2002/95/EC |
||

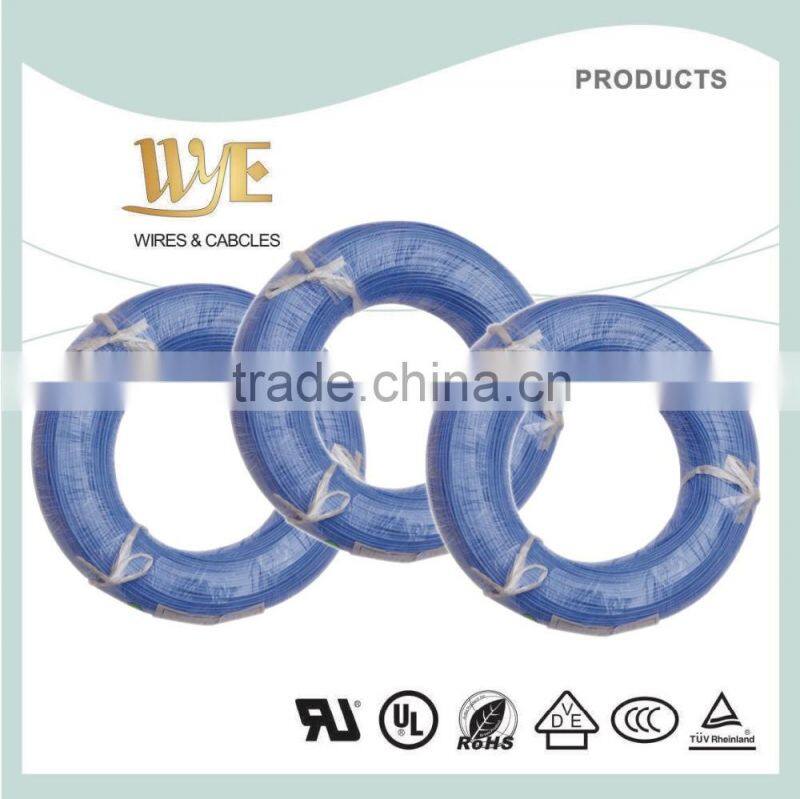

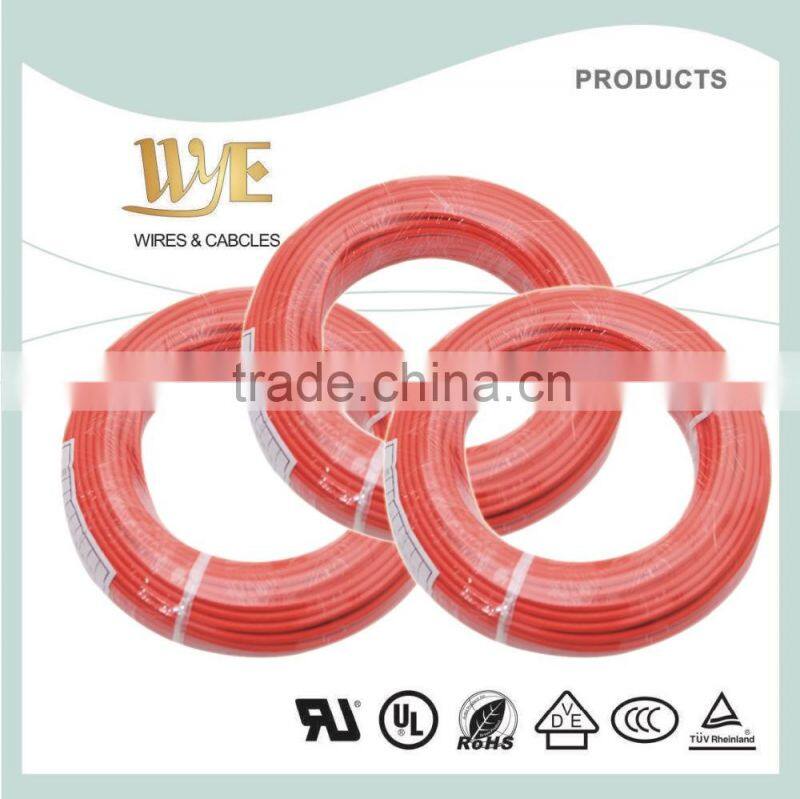

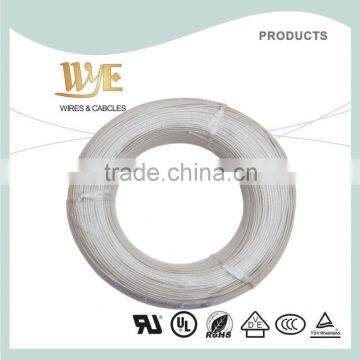

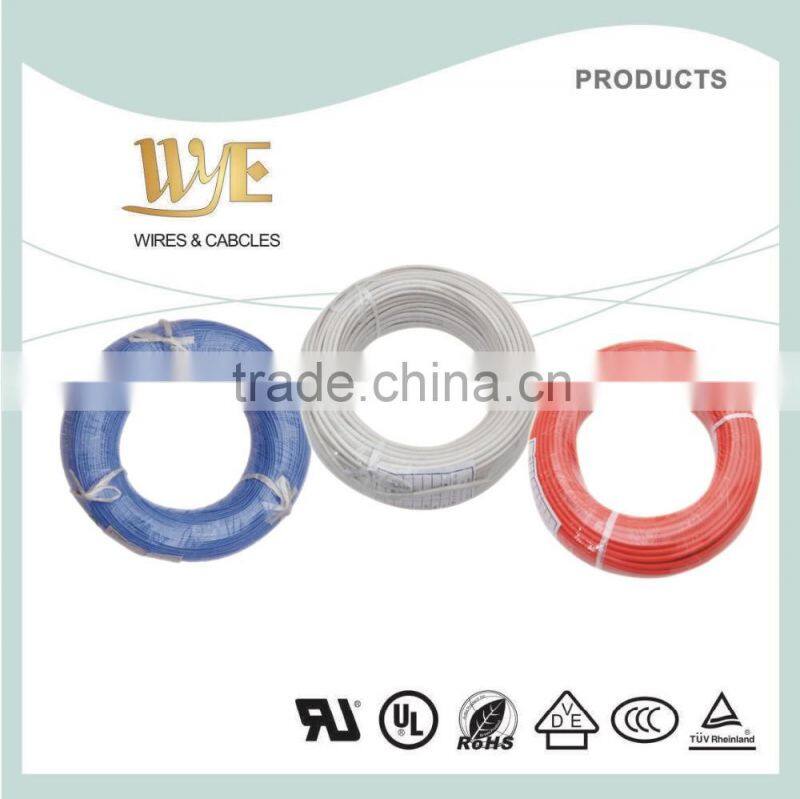

Product Show
Our Silicone cable can be used in high voltage household electrical appliances,such as rice cooker,Electromagnetic furnace,Microwave Oven,Electric kettle...and so on.

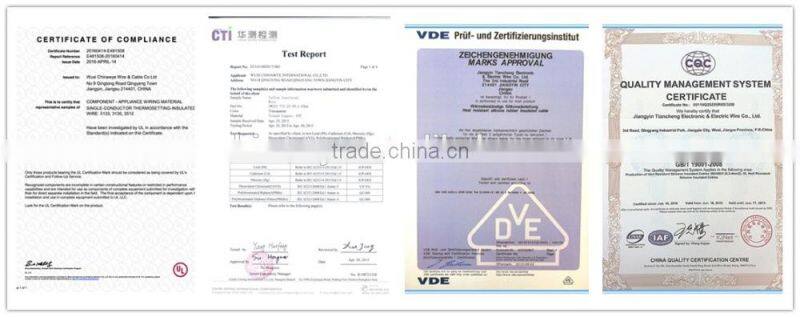

Certification

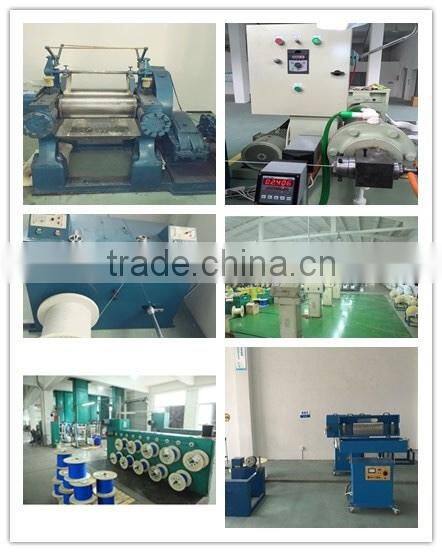

Production Line

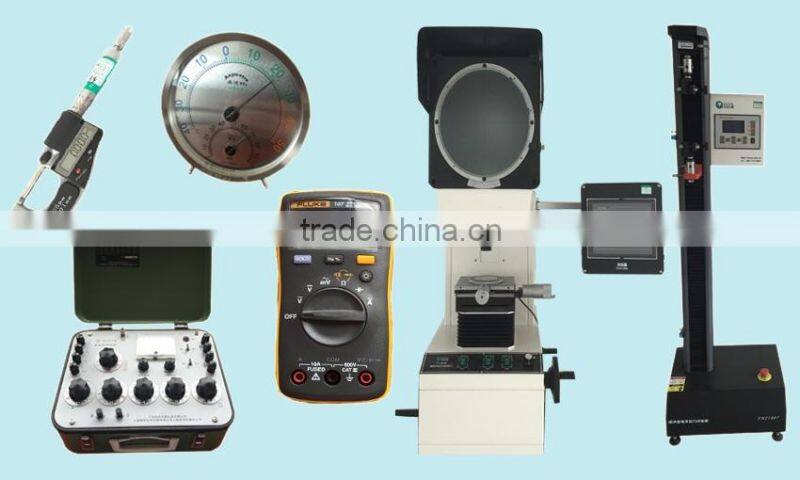

Our Lab equipment
1: SAMPLE FREE BEFORE PRODUCE
2: ANY QUESTION WILL BE SOLVE IN 24 HOURS
3:PACKING ACORDING CLIENTS REQUIRE.
4:FILISHED GOODS ON TIME.
5:SERVICE CUSTOMERS IS OUR PURPOSE.
Cable distribution attention matters:
1.Cables should be stored in the interior, and can not have heavy pressure.
2.Cables should avoid impact and external extrusion in the handling and transportation process,because of cable tray’s great weigh,so it need to use the crane, the springboard to help in the process.
3.Cable should put the line from outer circle after unparking, absolutely can not from the inner circle,in order to prevent the cable radius too small to form torque in the distribution.
4. When the cable is bent in the distribution, can not use the method of local force, such as hammer, but should be soothe cable shape slowly through a number of people.
5.The radius of curvature of the bending part of the cable is not less than 10 times the diameter of the cable.
6.The support of the cable, the force part and the external contact surface should be smoothly contact, the contact surface can not have a prominent object and edge.
