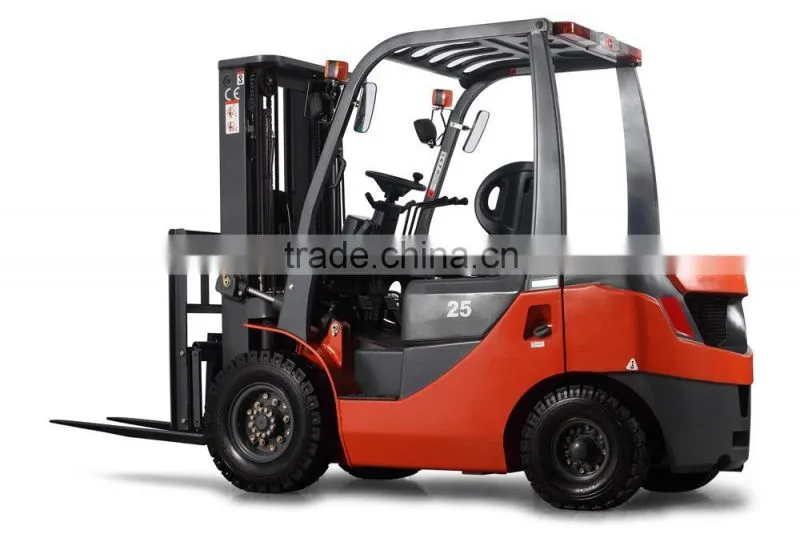

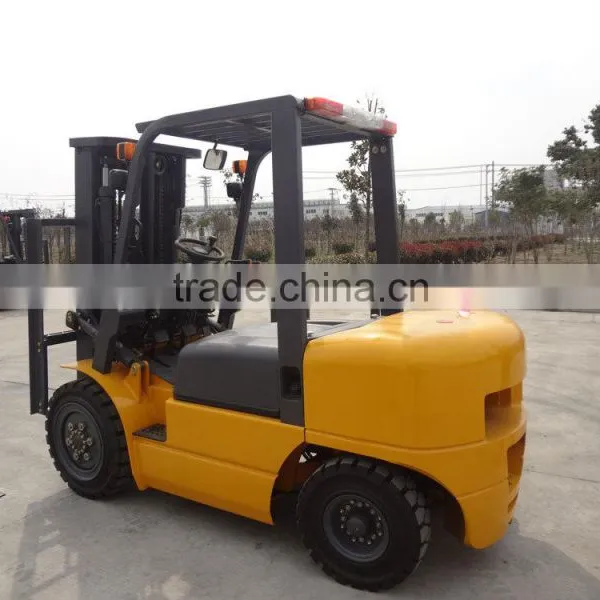

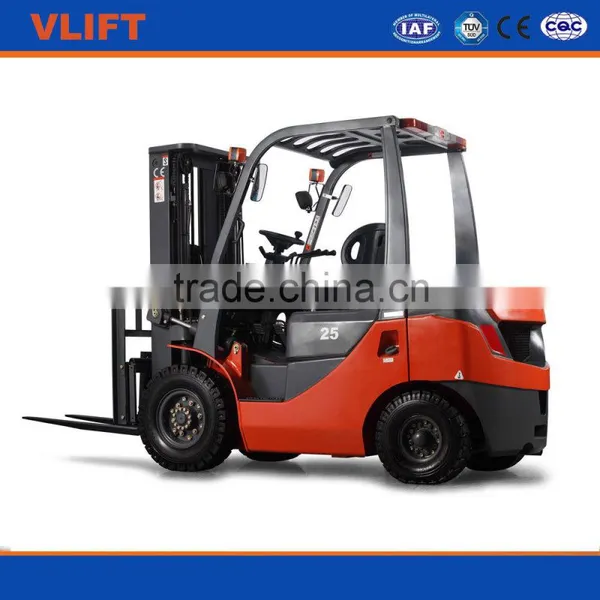

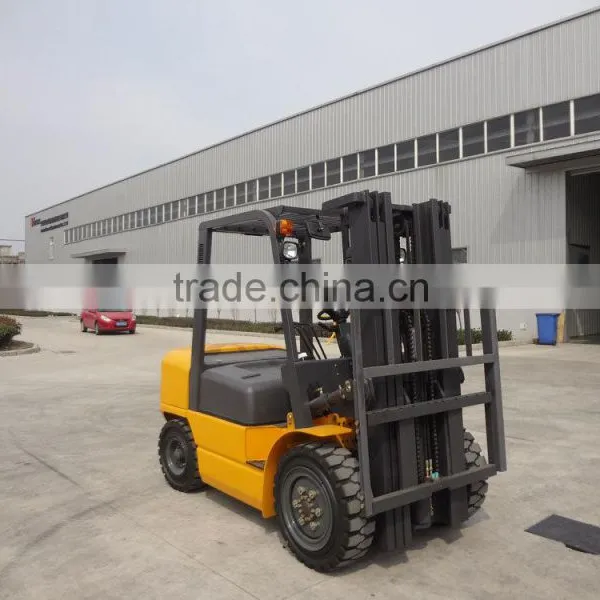

2.5 ton hydraulic diesel forklift with 3m full free mast work in container
| CPCD25 Technology Specification | |||||
| Features | 1 | Manufacturer | VLIFT | ||
| 2 | Model | Power shift | CPCD25 | ||
| 3 | Load capacity | kg | 2500 | ||
| 4 | Load center | mm | 500 | ||
| 5 | Power unit | Diesel | |||
| 6 | Operator type | Driver/seat | |||
| 7 | Tire type | Pneumatic | |||
| 8 | Wheel | Front/rear | 2/2 | ||
| Dimension | 9 | Max. lifting height | mm | 3000 | |
| 10 | Free lift | mm | 160 | ||
| 11 | Fork size | L*W*T | mm | 1070*122*40 | |
| 12 | Tilt range | Mast forward/backward | deg | 6/12 | |
| 13 | Overall length(without fork) | mm | 2530 | ||
| 14 | Total width | mm | 1150 | ||
| 15 | Mast height (fork lowering) | mm | 1995 | ||
| 16 | Overall height fork raised | With backrest | mm | 4030 | |
| 17 | Height to head guard | mm | 2120 | ||
| 18 | Turning raduis(outside) | mm | 2240 | ||
| 19 | Front face of fork to front axle | mm | 450 | ||
| 20 | Min. right angle stacking aisle without load length&clearence | mm | 2690 | ||
| Performance | 21 | Speed | Max Travelling full/no load | km/h | 17/19 |
| 22 | Lifting full/no load | mm/s | 550/580 | ||
| 23 | Lowering full/no load | mm/s | 450/550 | ||
| 24 | Max.drawbar pull | Power shift T/M full/no load | kg | 1670/830 | |
| 25 | Gradeability at 1.6km/h | Power shift T/M full/no load | % | 23/18 | |
| Weight | 26 | Truck weight | kg | 3670 | |
| 27 | Weight distribution | Full load front/rear |
kg | 5410/760 | |
| 28 | No load front/rear |
kg | 1430/2240 | ||
| Frame | 29 | Tires | Number | front/rear | 2/2 |
| 30 | Model | front axle | 7.00-12-12PR | ||
| 31 | rear axle | 6.00-9-10PR | |||
| 32 | Wheelbase | mm | 1600 | ||
| 33 | Tread | Front/rear | mm | 970/970 | |
| 34 | Ground clearence | At lowest point(mast) | mm | 110 | |
| Frame | mm | 115 | |||
| 35 | Brake | Service brake | Hydraulic-foot pedal | ||
| Parking brake | Mechanical-hand lever | ||||
| Engine | 36 | Battery | Voltage/capacity | V/AH | 12/80 |
| 37 | Engine | Model | XINCHAI C490 | ||
| Rated power | kw/rpm | 34.3/2500 | |||
| Rated torque | N.m | 138/1800 | |||
| Number of cylinders | 4 | ||||
| Placement | L | 2.369 | |||
| Fuel tank capacity | L | 70 | |||
| 38 | Transmission | Speed forward/backward | Power shift | 1-1 power shift | |
| 39 | Operating pressure | Hydraulic system pressure | kg/cm² | 180 | |
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 25 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.
5. How many colors of forklift you can supply?
Sliver, Orange, Yellow, Red. As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
Vlift forklift export standard package; Full set documents including spare parts list, operate maintenance manual and engine operate manual; One set of inspeciton certificate issued by manufacturer; One set of common use tools; All above mentioned will be put in tool box.
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
|
|
|
|
|
|
