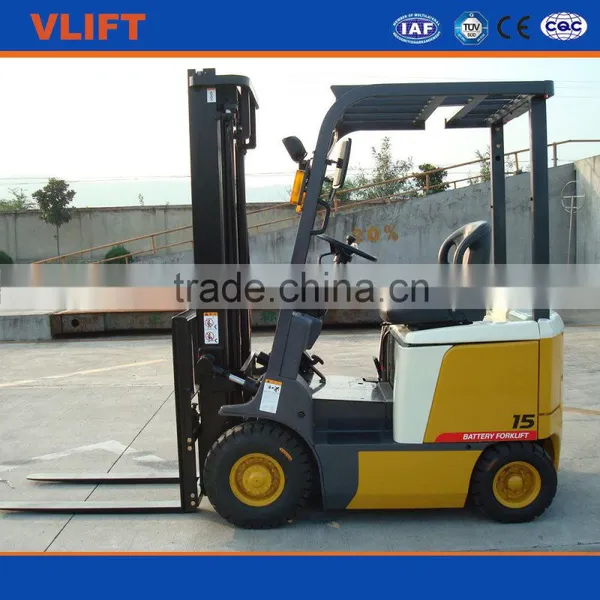

1.5 Ton Full Electric Forklift Truck Lifting Height 4m
| CPCB15 TECHNOLOGY SPECIFICATION | ||||
| Specifications | Manufacturer | VLIFT | ||
| Model | CPCB15 | |||
| Load capacity | kg | 1500 | ||
| Load center | mm | 500 | ||
| Power unit | Battery | |||
| Operator type | Driver/seat | |||
| Tire type | Pneumatic | |||
| Wheel(x=driving) | Front/rear | 2X/2 | ||
| Dimensions | Max. lifting height | mm | 4000 | |
| Free lift | mm | 155 | ||
| Fork size | L*W*T | mm | 920*100*35 | |
| Tilt range | Mast forward/backward | deg | 6/12 | |
| Overall length(without fork) | mm | 1955 | ||
| Total width | mm | 1070 | ||
| Mast height (fork lowering) | mm | 2545 | ||
| Overall height fork raised | With backrest | mm | 4030 | |
| Height to head guard | mm | 2100 | ||
| Turning raduis(outside) | mm | 1780 | ||
| Load distance | mm | 375 | ||
| Min. right angle stacking aisle | not add load length&clearence | mm | 2155 | |
| Performance | Speed | Max Travelling full load | km/h | 14 |
| Max Travelling No load | km/h | 16 | ||
| Lifting full load | mm/s | 350 | ||
| Lifting no load | mm/s | 530 | ||
| Gradeability | full load | % | 15 | |
| Weight | Truck weight(with standard battery) | kg | 2690 | |
| Weight distribution | Full load front/rear | kg | 3635/555 | |
| No load front/rear | kg | 1110/1580 | ||
| Chassis&Wheels | Tires | Number | front/rear | 2/2 |
| Model | front axle | 6.00-9-10-10PR | ||
| rear axle | 16*6-8-10PR | |||
| Wheelbase | mm | 1250 | ||
| Tread | Front/rear | mm | 910/900 | |
| Ground clearence | At lowest point(mast) | mm | 105 | |
| Frame | mm | 95 | ||
| Brake | Service brake | Hydraulic-foot pedal | ||
| Parking brak | Mechanical-hand lever | |||
| Drive Line | Battery | Voltage/capacity | V-AH/5hr | 48V-400 |
| Weight with box (standard) | kg | 735 | ||
| Electric motor | AC Driving motor | kw | 8 | |
| DC Hydraulic driving motor | kw | 8.2 | ||
| AC Hydraulic driving motor (as option) | kw | 8 | ||
| Control type | Driving AC,lifting AC(as option ) | |||
| Operating pressure | kg/cm² | 145 | ||
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 25 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.
5. How many colors of forklift you can supply?
Sliver, Orange, Yellow, Red. As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
Vlift forklift export standard package; Full set documents including spare parts list, operate maintenance manual and engine operate manual; One set of inspeciton certificate issued by manufacturer; One set of common use tools; All above mentioned will be put in tool box.
