PA Single Wall Corrugated Tube Extruder Machine

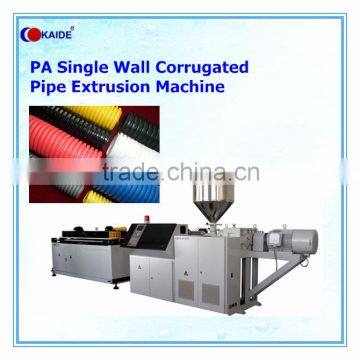

PA Single Wall Corrugated Tube Extruder Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
Other, PVC/PE/PA
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Pipe
Plastic Processed Other, PVC/PE/PA
Screw Design Single-screw
Automatic Grade semi auto
Place of Origin Shandong, China
Brand Name KAIDE
Model Number Corrugated PIPE
Voltage 380V,50HZ
Power(W) 50KW
Dimension(L*W*H) 25MX3.2MX2.5M
Weight 3200KG
Certification CE/ISO
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1) PA single wall corrugated tube extruder machine
2) diameter:6-40mm
3)output:80-100kg/h
4) air condition drain pipe. elect

PA single wall corrugated tube extruder machine



1.FEATURES

  • The set can select different type of extruder according to different processed material;
  • PE/PA main machine is equipped with single screw extruder,making good effect of plasticizing,dispersing quality,and high output;
  • PVC main machine adopts double conic screw extruder ,making good effect of plasticizing disperse and high output;
  • The die head of single wall corrugated pipe is specially designed for wide use scope,simple forming and even pipe wall.;
  • The corrugated pipe forming machine is optimum designed for high running speed and stable forming;
  • The cutting machine is specially designed for corrugated pipe for high precision cutting and no-damage to crest.

PA single wall corrugated tube extruder machine

2.TECHNICAL DATA

 Line Model

Extruder model

Production scope

Output

Total Power

Actual Power

DBWPE-40

SJ-45/30

Φ6-40mm

80kg/h

30KW

17KW

DBWPA-40

SJ-45/28

Φ6-40mm

80kg/h

29KW

16KW

DBWPVC-40

SJ50/105

Φ16-40mm

100kg/h

27KW

15KW







3.Photos of Our factory Workshop

PA single wall corrugated tube extruder machine



4.CHINAPLAS EXHIBITION



KAIDE company is a factory special in manufacturing Plasric Pipe Extrusion Machine.



Any inquiry from you are highly appriciated, thank you in advance.



  PA single wall corrugated  tube extruder machine
