Mid-level Seriles Freezer Sliding Glass Door Chest Freezer Display Freezer

US$ 220 - 350 MOQ: 10 Pieces

Key Specifications

Power Source:

Electric

Type:

Chest / Deep Freezer

Defrost Type:

Auto-Defrost

Hary Industry Group Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Power Source Electric

Type Chest / Deep Freezer

Defrost Type Auto-Defrost

Temperature Type Single-Temperature

Door Type Sliding Door

Door No. Double Doors

Certification Other, ISO

Dimensions (L x W x H (Inches) 584x694x850/724x694x850

Power (W) 1.6

Voltage (V) 220

Place of Origin Shandong, China

Model Number SD-151/205

Product Description

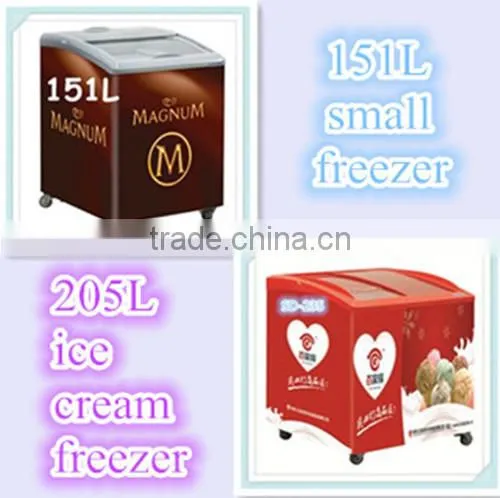

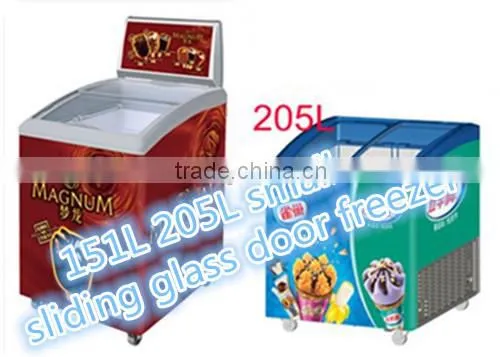

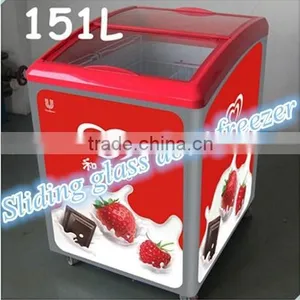

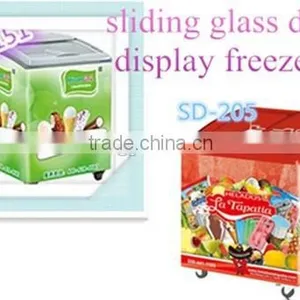

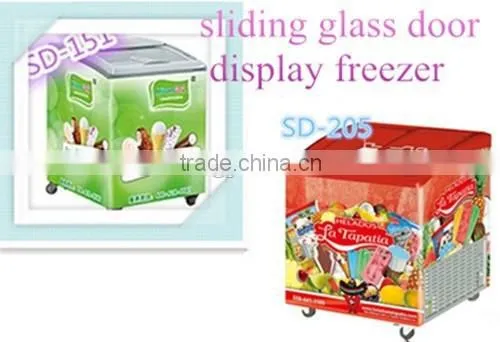

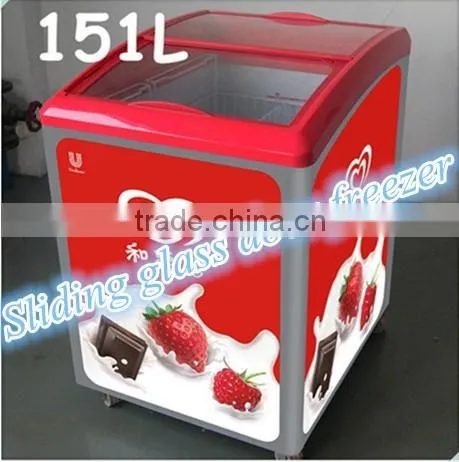

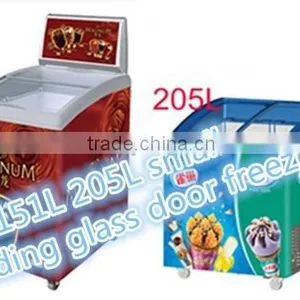

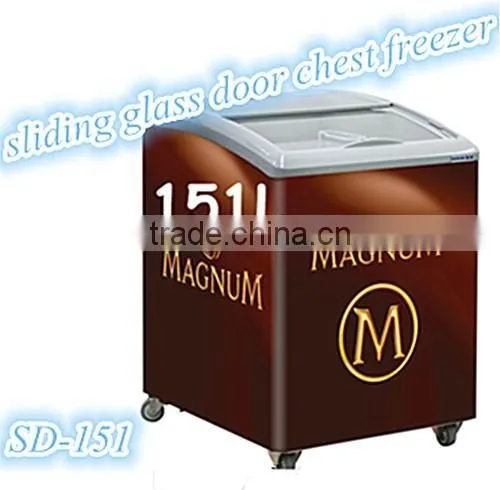

Products show

Features of curved glass chest ice cream freezer

1.The energy consumption can be reduced dramatcally by adoption of high-efficiency compressor,thick foam layer and better airproof glass frame.

2.Integrated cabinet top frame and glass door frame.

3.Unique"back to front push and pull door"design.

4.Humanized design with drain.

5.The back light canopy is optional.

			SD-151	SD-205
	Capacity Gross / Net	L	151/105	205/135
Dimension / Weight
	External Dimension	WDH (mm)	584x694x850	724694850
	Packing Dimension	WDH (mm)	625x770x895	805770895
Weight (Net/ include packaging)		kg	48/55	50/62
thickness		mm	70	70
Specification
Climate type		(Class / °C, %RH)	Class4+/35℃,70%RH	Class4+/35℃,70%RH
Refrigerant		(Type)	R600a	R600a
Defrost System			Static	Static
Temperature Control		Brand , Model	K50B/WPFE	K50B/WPFE
Compressor		Brand , Model	HUAYI/HY113MKU	HUAYI/HY113MKU
Input power/ Cooling capacity		w/w	131/175	123/205
Voltage Supply		V/Hz	220/50	220/50
Norminal Power consumption		W	1.6kW·h/24h	1.5kW·h/24h
Fan				EBM
Structure
Lids frame material			ABS	ABS
Glass Thickness		mm	4	4
Inner Body Material			Precoated Steel	Precoated Steel
Evaporator Material			Galvanized Steel Tube	Galvanized Steel Tube
Condenser Material			Galvanized Steel Tube	Galvanized Steel Tube
Dew Eliminating Tube Material			Copper pipe	Copper pipe
External Color			White	White
Internal Color			White	White
Blowing Agent:			Cyclopentane	Cyclopentane
Feature
Thermometer		Yes/No	optional	optional
Caster / Spec. of caster		Yes/No,(quantity)	yes(4)	yes(4)
Lighting		Yes/No	optional	optional
Lock & Key		Yes/No	yes	yes
Basket		Material / quantity	2	2
Loading Capacity
40' HQ(With Castors)			169	126
