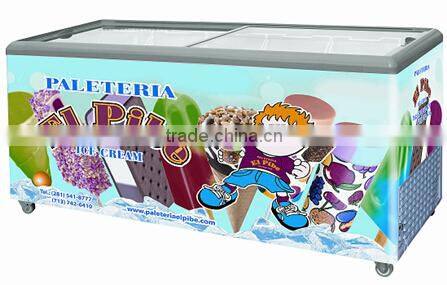

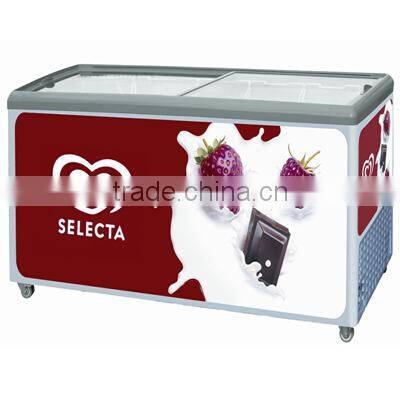

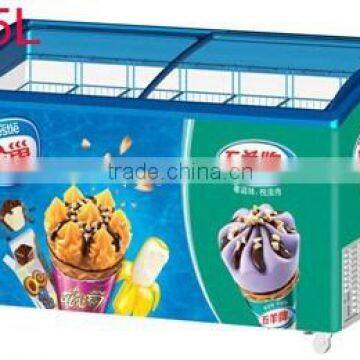

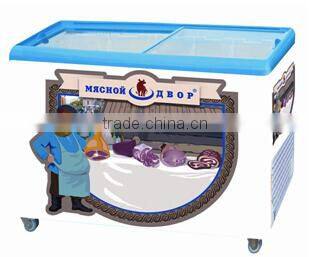

Streamline Sliding Glass Lid Glass Top Door Chest Ice Cream Freezer With Drain Slot
US$ 200 - 500
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Model Number:
SD151/SD205K/SD235K/SD325K/SD405K/SD415/SD515K/SD575K
Type:
Freezers
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2016 NEW High Quanlity 600L 700L Commercial Supermarket Chest ShowcaseUS$ 500 - 600MOQ: 10 Pieces -
Home Use Foam Door Single or Double Door Chest Deep FreezerUS$ 200 - 400MOQ: 10 Pieces
-
Small Sliding Glass Door Chest Freezer Display Freezer for SaleUS$ 230 - 255MOQ: 10 Pieces
-
Commercial Supermarket Glass Door Display Freezer Chest Showcase Ice Cream FreezerUS$ 200 - 500MOQ: 20 Pieces
-
Curved Glass Top Lid Freezer Ice Cream Showcase Display FreezerUS$ 200 - 500MOQ: 20 Pieces
Place of Origin
Shandong, China
Model Number
SD151/SD205K/SD235K/SD325K/SD405K/SD415/SD515K/SD575K
Type
Freezers
Style
Single-temperature
Certification
ISO
Capacity
100L-600L
Temperature
≤-18°C
Climate Type
ST
Refrigerant
R134a/R290/R600a/R404A
China Professional Manufacturer of Commercial Showcase

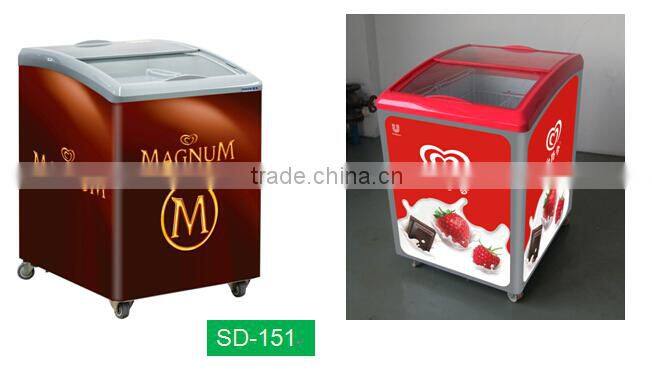

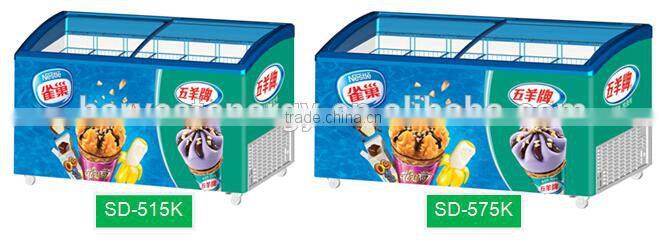

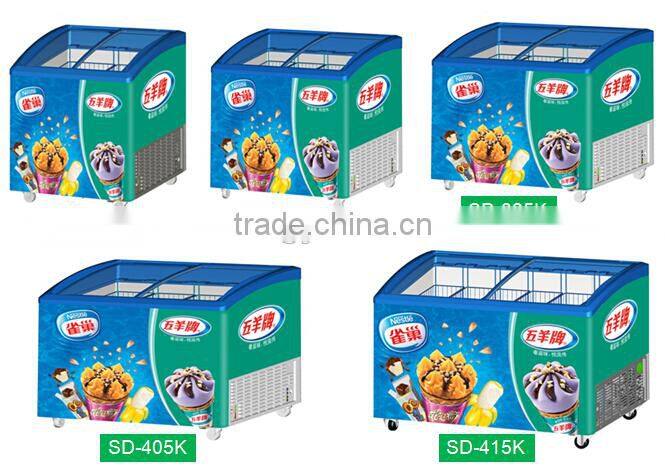

151L/205L/235L/325L/405L/415L/515L/575L commercial curved glass door chest freezer showcase freezer for ice cream

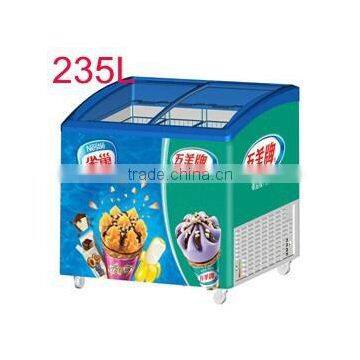

Specification of 235L,325L,405L curved glass chest ice cream freezer
| SD-235K | SD-325K | SD-405K | |||
| Capacity | |||||
| Capacity Gross / Net | L | 235/150 | 325/218 | 405/271 | |
| Dimension / Weight | |||||
| External Dimension | W*D*H (mm) | 800*694*850 | 1044x694x850 | 1239x694x850 | |
| Packing Dimension | W*D*H (mm) | 880*770*895 | 1125x770x895 | 1325x770x895 | |
| Weight (Net/ include packaging) | kg | 52/66 | 65/75 | 71/82 | |
| thickness | mm | 70 | 70 | 70 | |
| Specification | |||||
| Climate type | (Class / °C, %RH) | Class4+/35℃,70%RH | Class4+/35℃,70%RH | Class4+/35℃,70%RH | |
| Refrigerant | (Type) | R600a | R290 | R290 | |
| Defrost System | Static | Static | Static | ||
| Temperature Control | Brand , Model | K50B/WPFE | K50B/WPFE | K50B/WPFE | |
| Compressor | Brand , Model | HUAYI/HY113MKU | EMBRACO/EMT2121U | EMBRACO/EMT2125U | |
| Input power/ Cooling capacity | w/w | 123/205 | 173/265 | 200/295 | |
| Voltage Supply | V/Hz | 220/50 | 220/50 | 220/50 | |
| Norminal Power consumption | W | 1.6kW·h/24h | 2.1kW·h/24h | 2.6kW·h/24h | |
| Fan | EBM | EBM | EBM | ||
| Structure | |||||
| Lids frame material | ABS | ABS | ABS | ||
| Glass Thickness | mm | 4 | 4 | 4 | |
| Inner Body Material | Precoated Steel | Precoated Steel | Precoated Steel | ||
| Evaporator Material | Galvanized Steel Tube | Galvanized Steel Tube | Galvanized Steel Tube | ||
| Condenser Material | Galvanized Steel Tube | Galvanized Steel Tube | Galvanized Steel Tube | ||
| Dew Eliminating Tube Material | Copper pipe | Copper pipe | Copper pipe | ||
| External Color | White | White | White | ||
| Internal Color | White | White | White | ||
| Blowing Agent: | Cyclopentane | Cyclopentane | Cyclopentane | ||
| Feature | |||||
| Thermometer | Yes/No | optional | optional | optional | |
| Caster / Spec. of caster | Yes/No,(quantity) | yes(4) | yes(4) | yes(4) | |
| Lighting | Yes/No | optional | optional | optional | |
| Lock & Key | Yes/No | yes | yes | yes | |
| Basket | Material / quantity | 3 | 4 | 5 | |
| Loading Capacity | |||||
| 40' HQ(With Castors) | 117 | 94 | 81 | ||
Features of curved glass chest ice cream freezer
Flat glass door chest freezer is available
