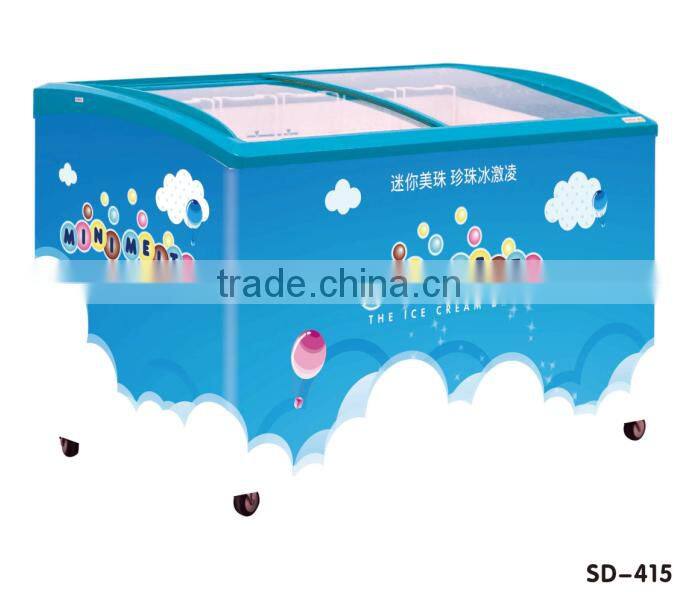

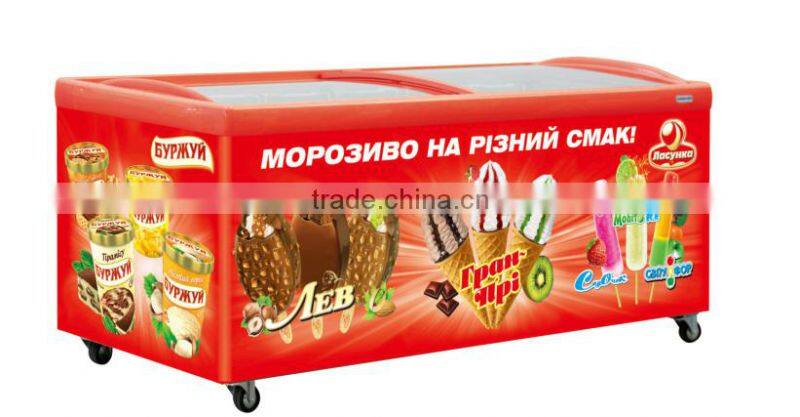

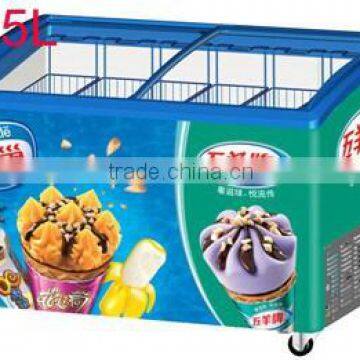

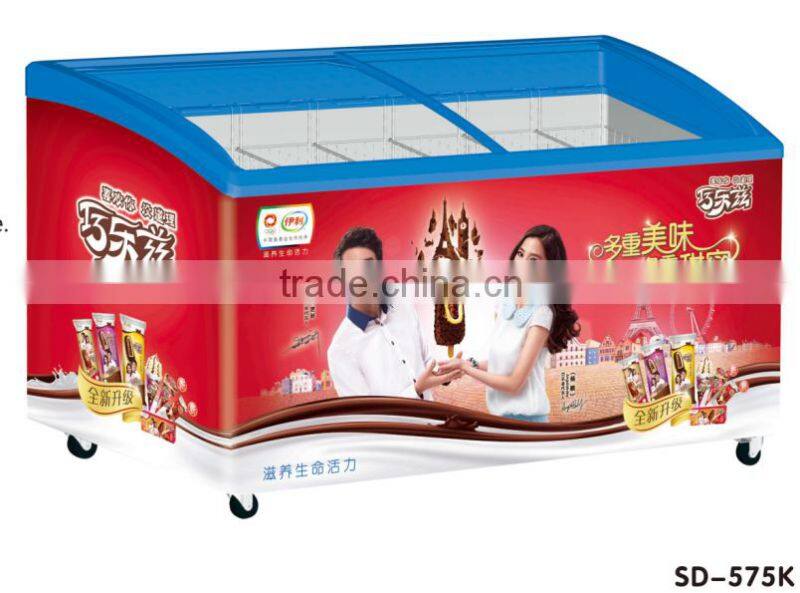

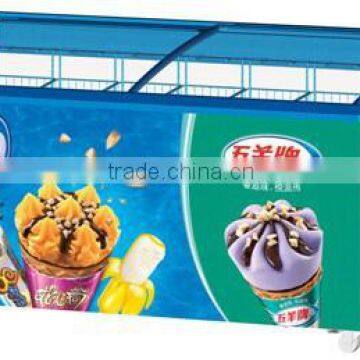

Sliding Glass Door Curved Glass Door Chest Freezer

US$ 200 - 600 MOQ: 10 Pieces

Key Specifications

Power Source:

Electric

Type:

Chest / Deep Freezer

Defrost Type:

Frost-Free

Hary Industry Group Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao

Delivery Detail:

Delivery time depends on order quantity.

Power Source Electric

Type Chest / Deep Freezer

Defrost Type Frost-Free

Temperature Type Single-Temperature

Door Type Sliding Door

Door No. Double Doors

Certification CE, Other, CE, ISO

Dimensions (L x W x H (Inches) 1314x694x850 1510x695.5x850 1685x695.5x850

Power (W) 3.2

Voltage (V) 220

Place of Origin Shandong, China

Model Number SD-415/SD-515/SD-575

Brand Name OEM

contract

skype:liu.jing36

whatapp.viber.wechat:0086-13026538706

Product Description

Specification of SD-415,SD-515,SD-575 curved glass chest ice cream freezer

			SD-415	SD-515	SD-575
Capacity
	Capacity Gross / Net	L	415/310	515/360	575/394
Dimension / Weight
	External Dimension	WDH (mm)	1314x694x850	1510x695.5x850	1685x695.5x850
	Packing Dimension	WDH (mm)	1400x770x895	1590x770x895	1770x770x895
Weight (Net/ include packaging)		kg	75/88	80/95	90/108
thickness		mm	70	70	70
Specification
Climate type		(Class / °C, %RH)	Class4+/35℃,70%RH	Class4+/35℃,70%RH	Class7/35℃,75%RH
Refrigerant		(Type)	R290	R290	R290
Defrost System			Static	Static	Static
Temperature Control		Brand , Model	K50B/WPFE	K50B/WPFE	K50B/WPFE
Compressor		Brand , Model	EMBRACO/EMT2125U	EMBRACO/EMTE2134U	EMBRACO/EMTE2134U
Input power/ Cooling capacity		w/w	200/295	305/430	305/430
Voltage Supply		V/Hz	220/50	220/50	220/50
Norminal Power consumption		W	2.7kW·h/24h	3.2kW·h/24h	3.5kW·h/24h
Fan			EBM	EBM	EBM
Structure
Lids frame material			ABS	ABS	ABS
Glass Thickness		mm	4	4	4
Inner Body Material			Precoated Steel	Precoated Steel	Precoated Steel
Evaporator Material			Galvanized Steel Tube	Galvanized Steel Tube	Galvanized Steel Tube
Condenser Material			Galvanized Steel Tube	Galvanized Steel Tube	Galvanized Steel Tube
Dew Eliminating Tube Material			Copper pipe	Copper pipe	Copper pipe
External Color			White	White	White
Internal Color			White	White	White
Blowing Agent:			Cyclopentane	Cyclopentane	Cyclopentane
Feature
Thermometer		Yes/No	optional	optional	optional
Caster / Spec. of caster		Yes/No,(quantity)	yes(4)	yes(4)	yes(4)
Lighting		Yes/No	optional	optional	optional
Lock & Key		Yes/No	yes	yes	yes
Basket		Material / quantity	6	6	7
Loading Capacity
40' HQ(With Castors)			74	66	57
