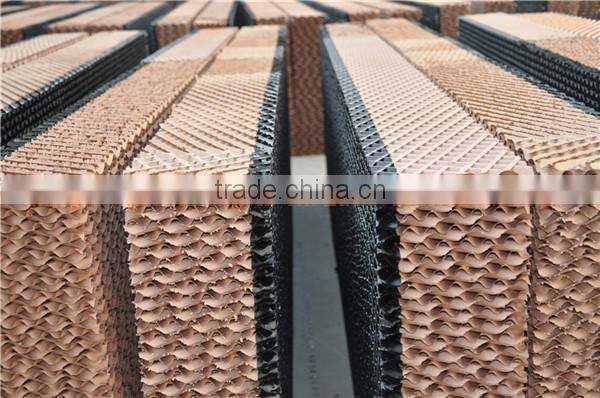

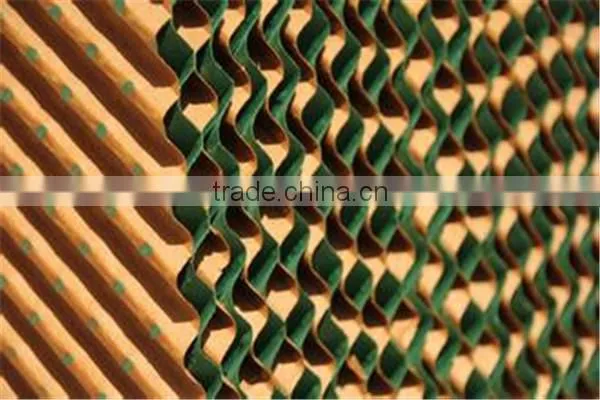

High intensity cooling pad
1.Corrugated paper has high intensity structure,corrosion resistant,long service life.
2.Fine percolating and absorbing water to ensure water drip wet the wall.
3.Specific stereoscopic structre.it can provide the largest evaporation sureface area for heating exchanging between air and water.
4.Outer frame can be alternative of aluminum alloy and galvanized boand.
FT cooling pad system is finished in the core-FT paper packing plate.
There is a thin water film on the surface of corrugated fiber paper,when the dry heating air outsiade is crossing the paper packing plate absorbed by wind machine,the water on the thin water film can absorb the heaat of air and evaporate into steam,then the cool and humid air can enter the room after treatment.
The nature processing is just like wind blowing on the water level.

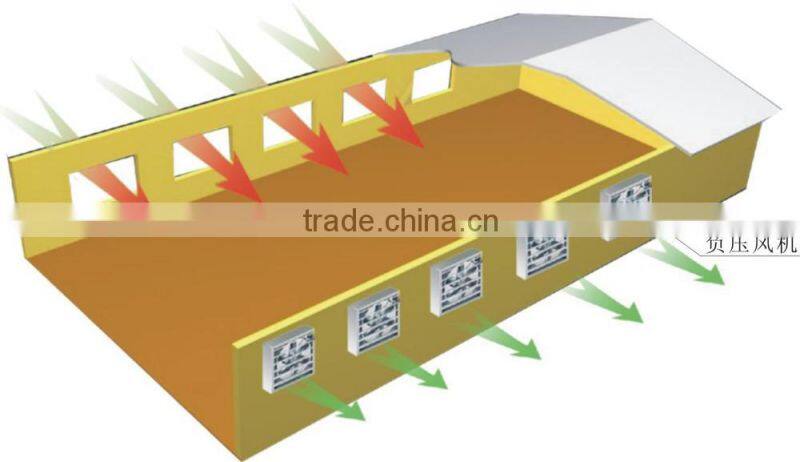

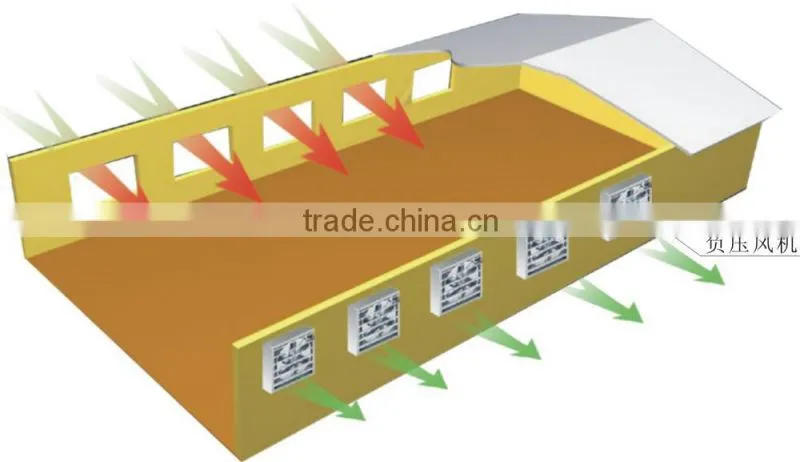

Ft ventilatim fan and cooling pad,best efficient and ecomomic temperature drop measure in summer.
Wet and dry bulb temperature different:
Temperature of the dry ball and the wet ball is different at any time in the outside environment.Temperature for the dry ball is high,and that of the wet ball is lower.The hotter weather,the higher temperature gap between dry ball and wet ball.

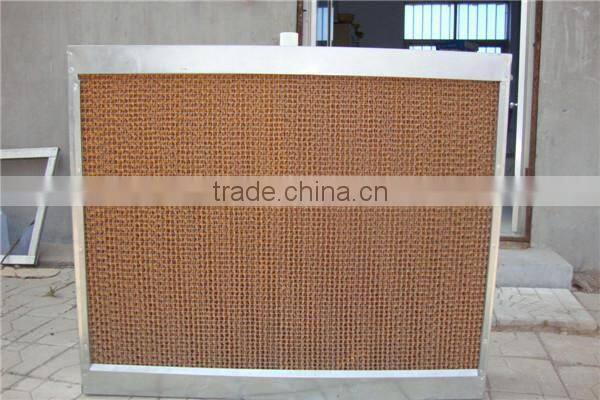

Wet curtain frame:
The installment above is more simple,more convenient for maintaining and changing the coolng pad.
The aluminium mention above(including the up and down cap)with antioxidant in order to extend the life time.
The cooling pad is used the 100% wood pulp pater which with strong effifiency of absorbing the water and good efficiency of cooling down temperature.
model |
Height (mm) |
Width(mm) |
Thickness(mm) |
Flute high(mm) |
Across angle(1)(*) |
Across angle(2)(*) |
7090 |
1500,1800,2000 |
900,600,300 |
100,150,200,300 |
7 |
45 |
45 |
7060 |
1500,1800,2000 |
900,600 |
100,150,200,300 |
5 |
45 |
45 |

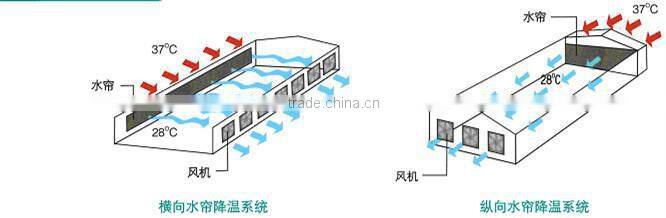

Cooling pad schematic diagram

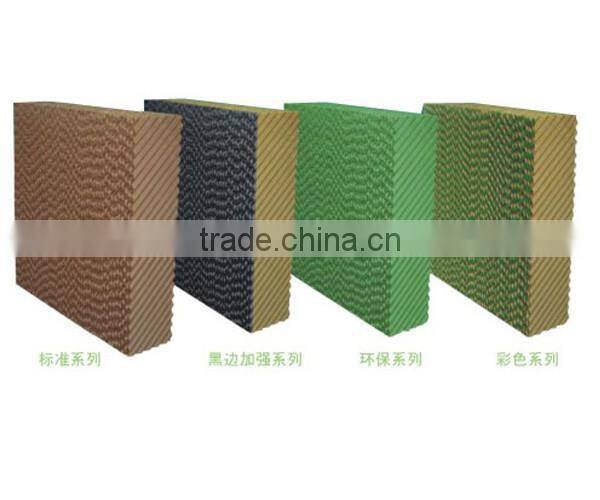

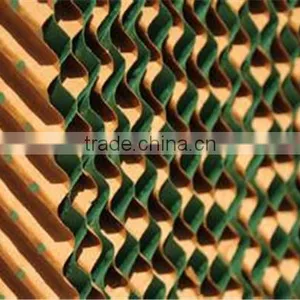

Color:black cooling pad,green cooling pad ,brown cooling pad ,A plane is the color cooling pad ,double color cooling pad
Cooling pad fram:
1,The installment above is the very simple,more convenient for maintaining and changing the cooling pad
2,The aluminium mention above(including the up and down cap)with antioxidant in order to extend the life time.
3,The cooling pad is used the 100%wood pulp pater which with strong effifiency of absorbing the water and good efficiency of cooling down temperature.
