HAIMEN HAOXIN MACHINERY CO.,LTD
| Technical Specification | ||||||||
| Model | Quilting width (m) | Machine dimensions (m) | Maximum size of loading a quilt(m) | Max quilting thickness (mm) | Max neddle speed (rpm) | Weight(t) | Power (kw) | packing volume |
| HXD-26C | 2.6 | 3.55×5×1.67 | 2.6×2.8 | 5-40 | 2200 | 1.2 | 1.5 | 6.6 |
| HXD-28C | 2.8 | 3.85×5×1.67 | 2.8×3.0 | 5-40 | 2200 | 1.3 | 1.5 | 7.0 |
| HXD-30C | 3 | 4.05×5×1.67 | 3.0×3.2 | 5-40 | 2200 | 1.4 | 1.5 | 7.3 |
|
Rotary hook |
Big rotary hook | Motor | Stpper motor | |||||
| Stitch length | 2-7mm adjustable | Power | 2.5kw | |||||

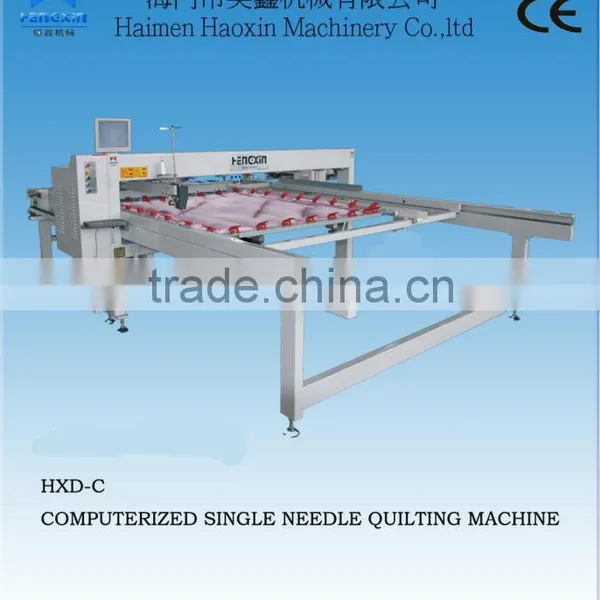

HXD-C Computerized Single needle quilting sewing machine.
Performance
1.3.Strong professional Quilting computer functions, such as synchronized zoom, needle step size selection, trimming, etc..
4.Figure has the production quantity, cutting length can be set in advance in computer, transverse cutting and vertical cutting, a molding products, can be directly suture edge.
5.Any-pattern Auto-Quilting,Equal-Distance Needle Quilting.
6. Easy modification operation of needle distance and speed.
7. clockwise-counterclockwise quilting and empty forward or backward or thread-through button is provided.
8. the needle automatically stops at high position when the machine stops.
9. the machine stops when any broken thread is automatically detected.
10. Quilting condition and operation indication are shown in real time.
11. It automatically returns to original point.
12. It has the function of pattern tracing to make the needle position quickly.
13.It has the function of pattern browsing.
14.It has the function of work-piece and time statistics.
15.Through pattern side setting up ,it can automatically enlarge or reduce patterns.
Feature of the machine
1.The main shaft speed has been raised and work effciency has been increased.
2.Application of large rotation shuttle while the shuttle core is two times larger than that of small shuttle.
3.The system has testing function so as to have convenient maintenance.
4.Graphics has the function of rotation and overtum.
5.Sliding axle case application integration structure, the machining center production.
6.Paint application car lacquer barbecue processing, beautiful appearance.
7.Guide assembly with special platform, accuracy requirement not more than 0.05 mm.
7.Beyond-boundary protection function.
Detail
QUILT MAKING BY MACHINE.
Packing with wooden box.
ONE PART OF OUR FACTORY
