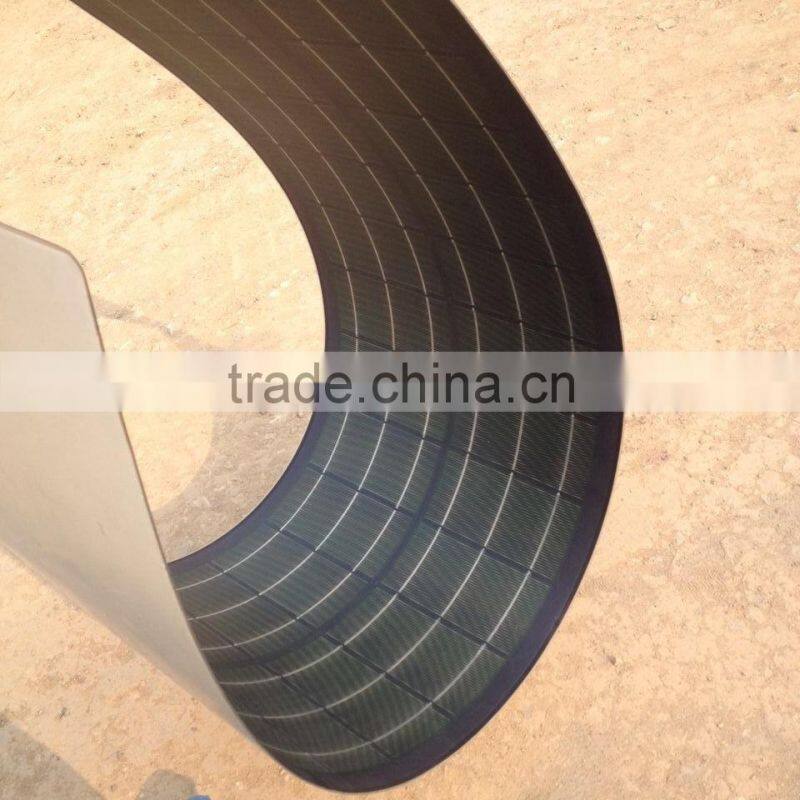

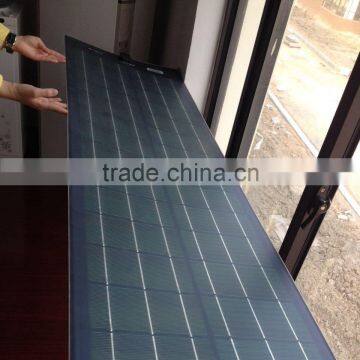

250W cigs solar panel production line wholesale
ELECTRICAL PERFORMANCE | |
Pmax | 250W |
Tolerance of Pmax | ± 7% |
Module aperture area efficiency | 10.50% |
Rated voltage | 48.6V |
Rated current | 5.1A |
Open circuit voltage | 65.4V |
Short circuit current | 6.2A |
Note 1: Standard Test Conditions (STC): Cell Temperature at 25°C; Solar irradiance intensity of 1000 W/m2; AM1.5 solar reference spectrum (ASTM E892) | |
MECHANICAL SPECIFICATIONS | |
Length | 5745mm |
Width | 492mm |
Thickness | 3mm |
Weight(without adhesive) | 7.2kg, (2.7kg/m2) |
Weight(with adhesive) | 9.5kg, (3.5kg/m2) |
Junction Box - Top Mounted | TE Connectivity SOLARLOKTM Micro Junction Box (Optional) |
cables | 4 mm2 dual rated with SOLARLOKTM connectors |
Junction Box - Bottom Mounted | MC-JM/FM (MC4 Connectors) (Optional) |
Front Sheet | Non-stick ETFE |
Solar Cells | 108pieces cell |
Adhesive | Butyl rubber |
Hot Spot Protection | Bypass diodes at each cell; 1 at junction box |
Materials | Lead free and exempt from RoHS requirements |
Maximum Series Fuse Rating | 10A |
Color Options | Black (B) or White (W) backsheet behind cells |
1. Reply your inquiry in 12 working hours
2. Customized design is available, OEM is welcomed
Q: How to palce an order after choosing the products?
A: Please contact our customer service representative for details.
Q: Can you accept OEM service?
A: Yes, we can. Qty is not the only standard, more quality, less cost.
Q: How about your after sales-service?
A: 10 years limited warranty on material and workmanship,
12 years warranty on power output to not fall below 90%,
25 years warranty on power output to not fall below 80%.
Q: How about your payment terms?
A: We accept T/T, Western Union, Money Gram, L/C.
Q: What certification do you have?
A: We have CE/IEC/CSA/CQC/CEC or According to your need, if you place an big order.
