off grid 10kw solar panel system,20kw solar panel system FR-S104
Solar power system features:
Ref No. |
FR-10KW |
||
System Basic Information |
Solar Panel output Power: |
10KW |
|
Solar Power For Daily Consumption: |
33KWH |
||
Allowable Max Loads Power: |
10KW |
||
Solar Panel | |||
Type |
Crystalline Silicon PV Module |
QTY: 40 pcs |
|
Max Power |
250W |
||
Vmp |
30.5V |
||
Imp |
8.20A |
||
Size |
1655x992x45 mm |
||
Weight |
22.5kg/pc |
||
|
25 years power output guarantee (Note: 2pcs panels in series as a string, 6 strings in parallel) | |||

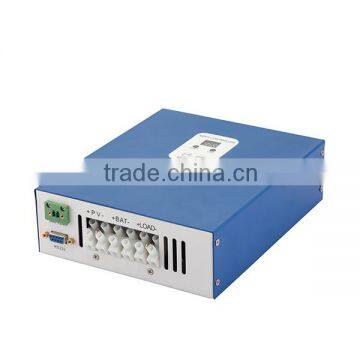

Controller-Inverter Integrator | |||
Rated Ouput Power |
10KW |
QTY:1pc |
|
Rated DC Voltage |
120V |
||
Battery Rated Voltage |
96V |
||
Complete LCD display, simplified wiring, various protections, solar-grid dual power sources | |||
Battery | |||
Battery capacity |
12V/200AH per piece |
QTY:32pcs |
|
Type |
Solar special lead-acid battery |
||
Service Life |
5~6 years |
||
Warranty |
2 years |
||

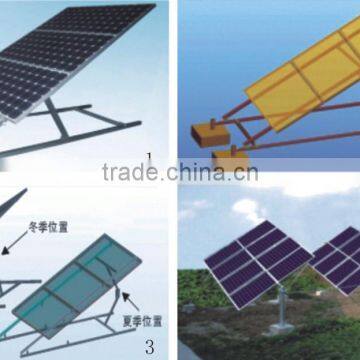

Solar Panel Rack | |||
Type |
Slope steel-tile roof type mounting rack including complete fittings (Other types of racks can be customized as per client's requirement) |
QTY:1set |
|
Cables |
Suitable for solar system, RVV series |
100m |
|

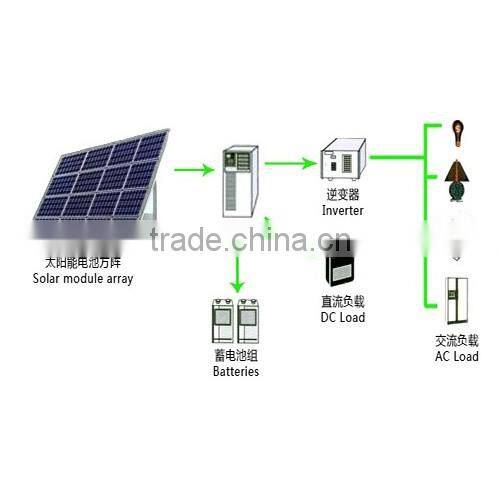

Working Principle:
This is an off-grid system which uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply. Meanwhile, the system can charge the batteries with grid power until batteries are fully charged. Then the system will switch back to battery power supply.

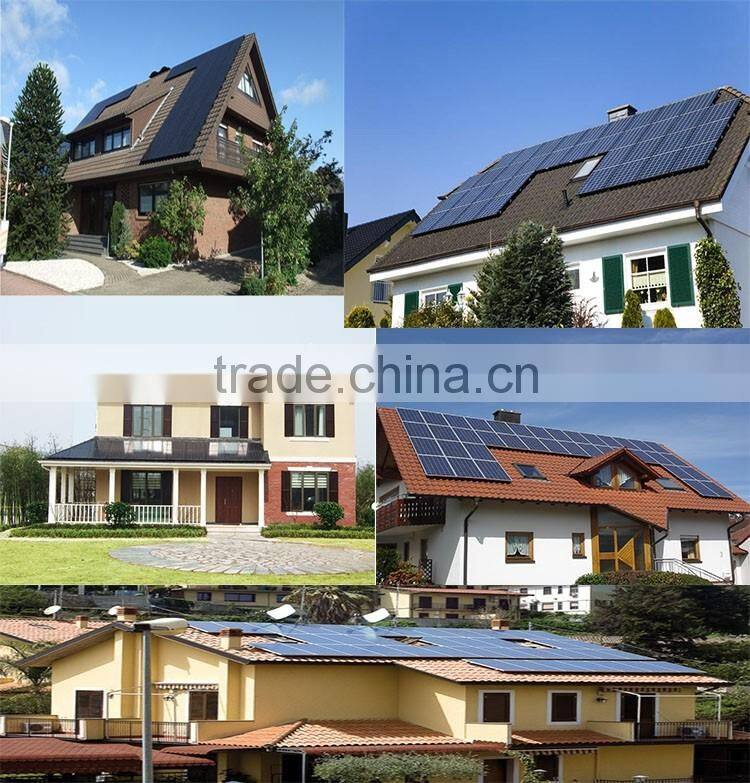

Solar power system applications:
1. schools, hospitals, public halls or private housing, communication stations, weather station.
2. household appliances, lighting, communications equipment, meteorological equipment.
FENGREN was newly established in 2015. Our company focus on suppling and exporting high-quality, Environmental friendly and Sustainable solar products to dealers, retailers, governmental insitutions, trading companies and other sustomers aroud the world.

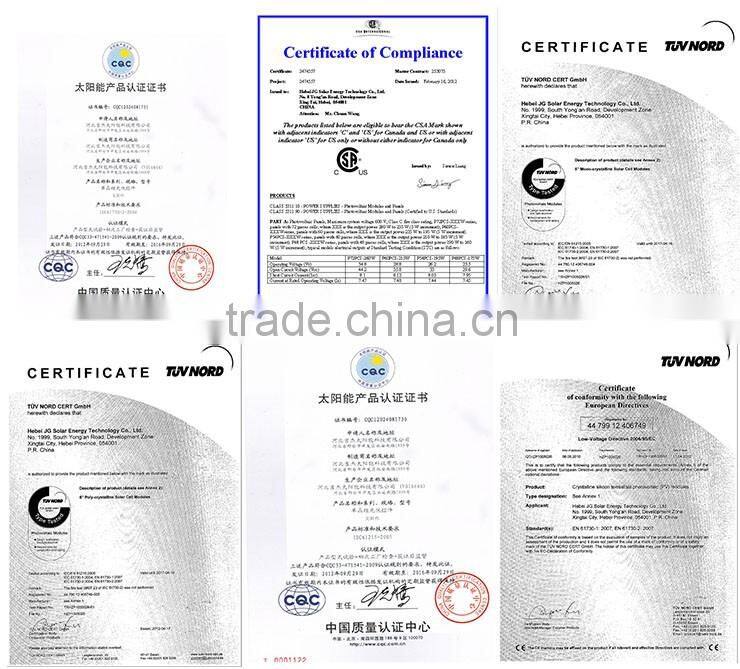

Certifacation:Q: How to palce an order after choosing the products?
A: Please contact our customer service representative for details.
Q: Can you accept OEM service?
A: Yes, we can. Qty is not the only standard, more quality, less cost.
Q: How about your after sales-service?
A: 10 years limited warranty on material and workmanship,
12 years warranty on power output to not fall below 90%,
25 years warranty on power output to not fall below 80%.
Q: How about your payment terms?
A: We accept T/T, Western Union, Money Gram, L/C.
Q: What certification do you have?
A: We have CE/IEC/CSA/CQC/CEC or According to your need, if you place an big order.
