12V 24V 48V 1000W Pure Sine Wave Solar Inverter With LED Indicator

12V 24V 48V 1000W Pure Sine Wave Solar Inverter With LED Indicator thumbnail-1
12V 24V 48V 1000W Pure Sine Wave Solar Inverter With LED Indicator thumbnail-2
12V 24V 48V 1000W Pure Sine Wave Solar Inverter With LED Indicator thumbnail-3
12V 24V 48V 1000W Pure Sine Wave Solar Inverter With LED Indicator thumbnail-4
12V 24V 48V 1000W Pure Sine Wave Solar Inverter With LED Indicator thumbnail-5
12V 24V 48V 1000W Pure Sine Wave Solar Inverter With LED Indicator photo-1

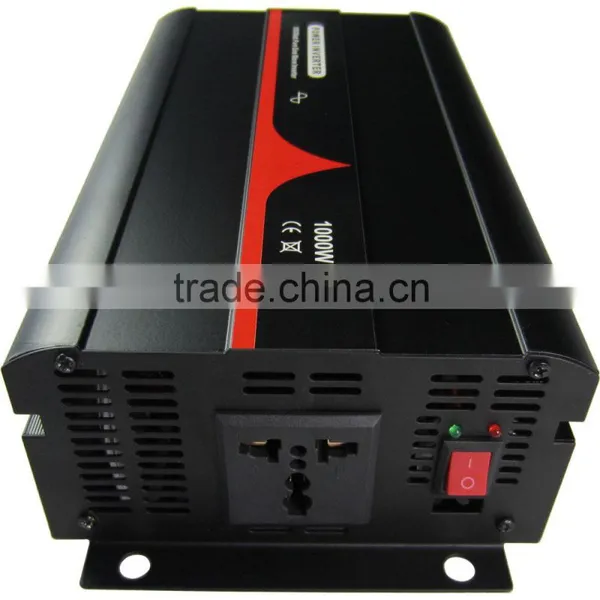

12V 24V 48V 1000W Pure Sine Wave Solar Inverter With LED Indicator photo-2

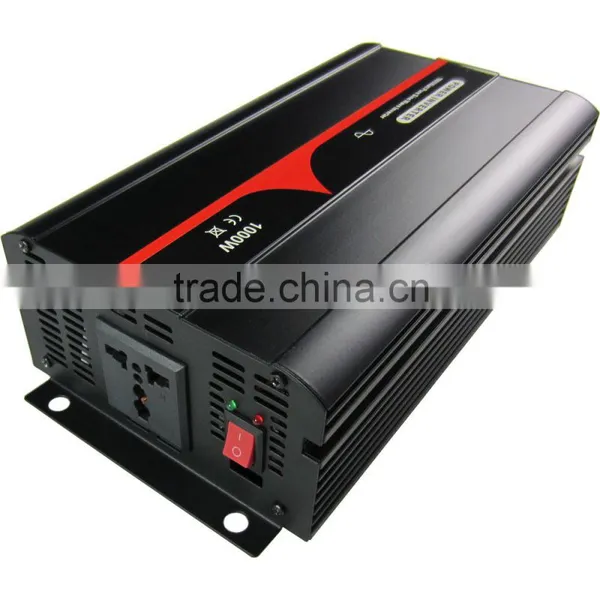

12V 24V 48V 1000W Pure Sine Wave Solar Inverter With LED Indicator photo-3

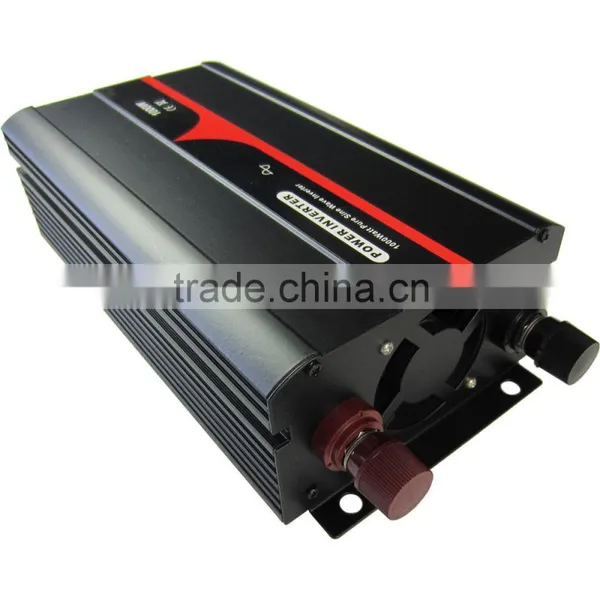

12V 24V 48V 1000W Pure Sine Wave Solar Inverter With LED Indicator photo-4

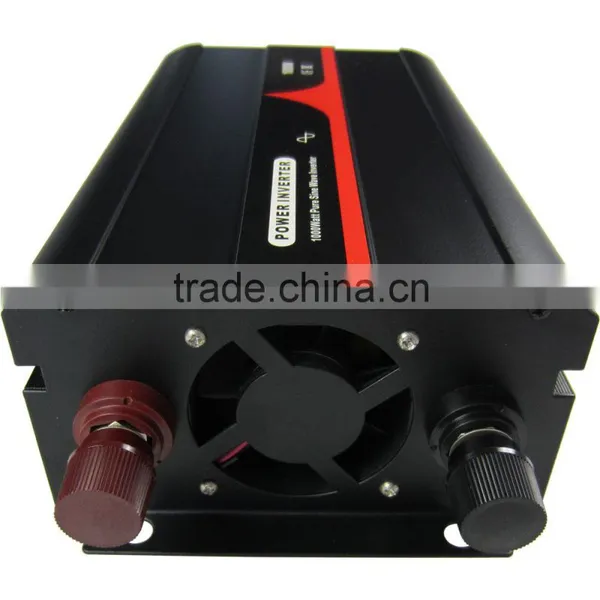

12V 24V 48V 1000W Pure Sine Wave Solar Inverter With LED Indicator photo-5
US$ 80 - 200 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
Fengren/OEM
Model Number:
P1000
Contact Supplier Request Quote Chat Now
Xingtai Fengren Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name Fengren/OEM
Model Number P1000
Output Power Other, 1000-2000w
Output Type Single
Size 323*139*72mm
Weight 2.7KG
Input Voltage 12V/24V/48V
Output Voltage 100~120VAC / 200~240VAC (Optional)
Type DC/AC Inverters
Output Frequency 50Hz/60Hz
Output Current Load

12V 24V 48V 1000W Pure Sine Wave Solar Inverter with LED Indicator



CE-LVD,CE-EMC,RoHS Certificates



Model : BTP1000 1000W-12V 1000W-24V 1000W-48V
AC Output  Power:    1000W
Surge power:    2000W
Output Waveform  Pure Sine Wave (THD < 3%)
Output Frequency   50Hz±0.1% or 60Hz±0.1% (Optional)
AC Output Voltage 100~120VAC / 200~240VAC (Optional)
DC Iutput DC Input Voltage 12V DC 24V DC 48V DC
Voltage Range 11V-15V 22V-30V 44V-60V
Low Voltage Alarm 10.5V± 0.5V 21V±1V 42V±2V
Low Voltage Shut down  10V±0.5V 20V±1V  40V±2V
Over Voltage Shut down  15V±0.5V 30V±1V 60V±2V
Converting Max. Efficiency 90% (Full Loading) / 95% (1/3 Loading)
No Load Consumption < 1A
Protection Over Thermal:

Shut Off Output Automatically,

Temperature >75℃
Short circuit protection:  Reverse Polarity (External Fuse)
Cooling Fan automatically run  Temperature ≥45℃
 Environment Working temperature  -5℃~+40℃
Working humidity  20%~90% RH  Non-Condensing
Storage Temperature Range  -20℃~+50℃
LED Indicator Light Inverter, Fault
Machine Dimensions (mm) 323*139*72mm
Weight (kg) 2.7kg

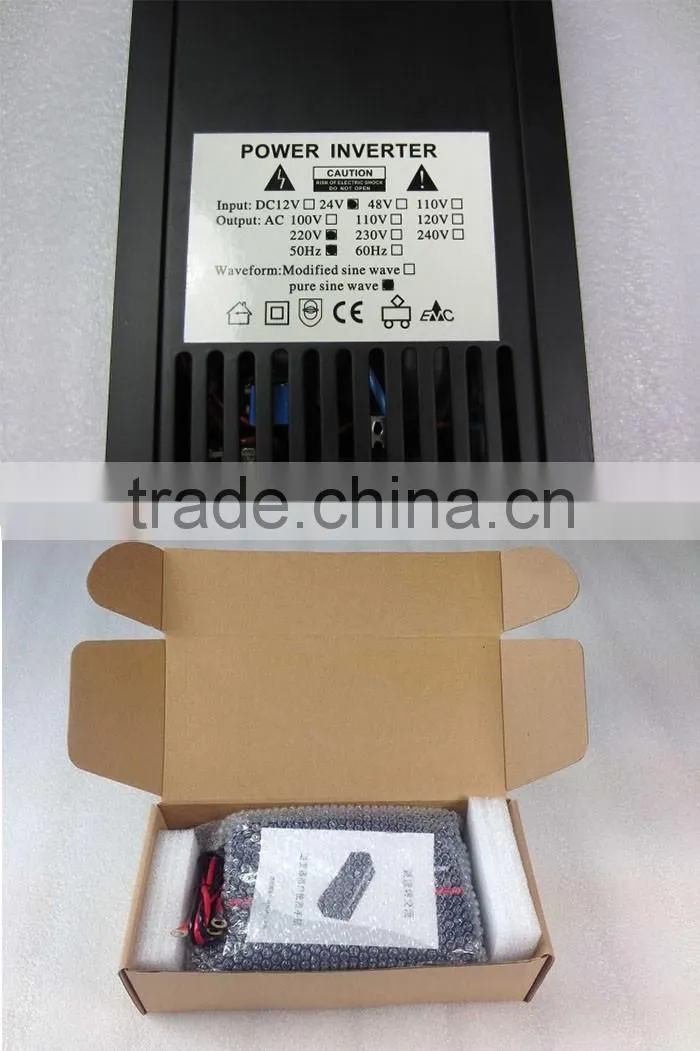

 12V 24V 48V 1000W Pure Sine Wave Solar Inverter with LED Indicator





Our Services

1. Reply your inquiry in 12 working hours

2. Customized design is available, OEM is welcomed

3. Delivery the goods to our customer all over the world with speed and precision
4. Offer high quality products with competetive prices
FAQ

Q: How to palce an order after choosing the products?

A: Please contact our customer service representative for details.



Q: Can you accept OEM service?

A: Yes, we can. Qty is not the only standard, more quality, less cost.



Q: How about your payment terms?

A: We accept T/T, Western Union, Money Gram, L/C.



Q: What certification do you have?

A: We have CE/IEC/CSA/CQC/CEC or According to your need,  if you place an big order.



Welcome to contact for more details.

We can offer 300W to 20kw inverter
