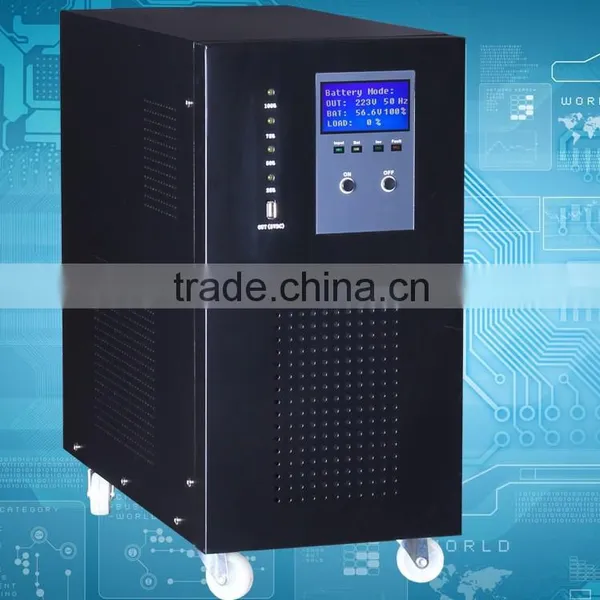

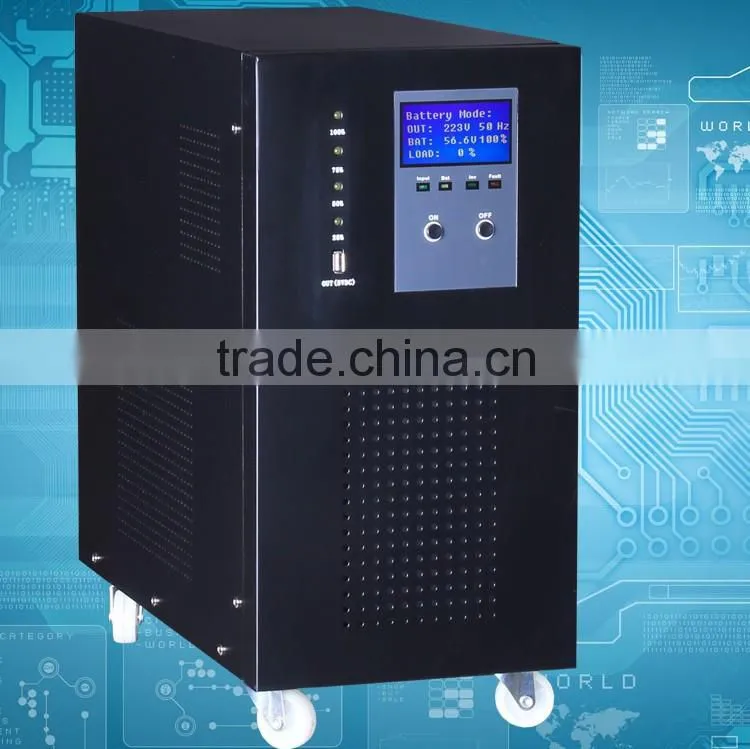

3KW-30A Solar charger generator inverter with built in MPPT Controller
Specifications
| Model | W20V24/48 |
| Power/Controller | 2000W/30A |
| DC Voltage | 24V/48V |
| Input Voltage | 145V-275Vac |
| Input Frequency | 50Hz±5%Hz |
| Output Waveform | Pure Sine Wave |
| Output Fraquency | 50Hz |
| Output Voltage | 220VAC±5% |
| Conversion Time | ≤3 ms |
| Overload Protection | Amounting to 120, continuous alarm, 10 seconds after shutdown, more than |
| Short Circuit Protection | IPS output immediately shudown or input circuit breaker protection IPS |
| Display | Input voltage/ frequency, output voltage,frequency, battery voltage, operating mode, load power |
| Charge Current | Intelligent pulse mode charging, automatically adjust the charging current. |
| Battery Protection | Overshoot protection(CPU) protection(intelligent management system) |
| Product Size | 470*192*342mm |
| N.W/G.W | 19KG/20KG |
Features:
1. MPPT controller Ring type transformer
The important represent of MPPT controller component:inductantive coil
We can achieve the best effect by continuously modifying the program of MPPT controller and the parameter of inductance coil.
2.Multiple protection
Machine design has many protection schemes, overload protection, high voltage protection, low voltage protection, temperature protection, over-current protection function to better protect the inverter and the safety of electrical equipment.
3. Intelligent cooling
Our all the inverters of the cooling system for intelligent mode, when meet the cooling requirements, cooling system automatically open, when the temperature is lower than the specified value, cooling system automatically shut off and save energy.
1. Reply your inquiry in 12 working hours
2. Customized design is available, OEM is welcomed
Q: How to palce an order after choosing the products?
A: Please contact our customer service representative for details.
Q: Can you accept OEM service?
A: Yes, we can. Qty is not the only standard, more quality, less cost.
Q: How about your payment terms?
A: We accept T/T, Western Union, Money Gram, L/C.
Q: What certification do you have?
A: We have CE/IEC/CSA/CQC/CEC or According to your need, if you place an big order.
Welcome to contact for more details.
We can offer 500W to 20kw inverter
