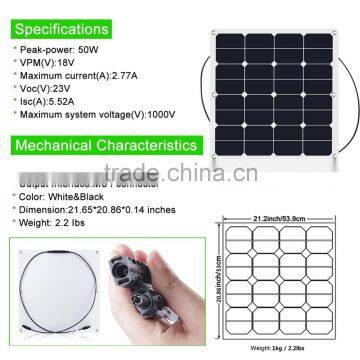

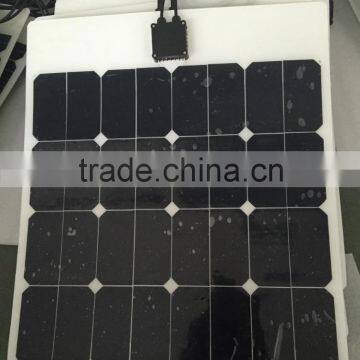

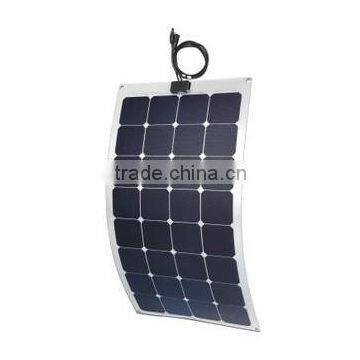

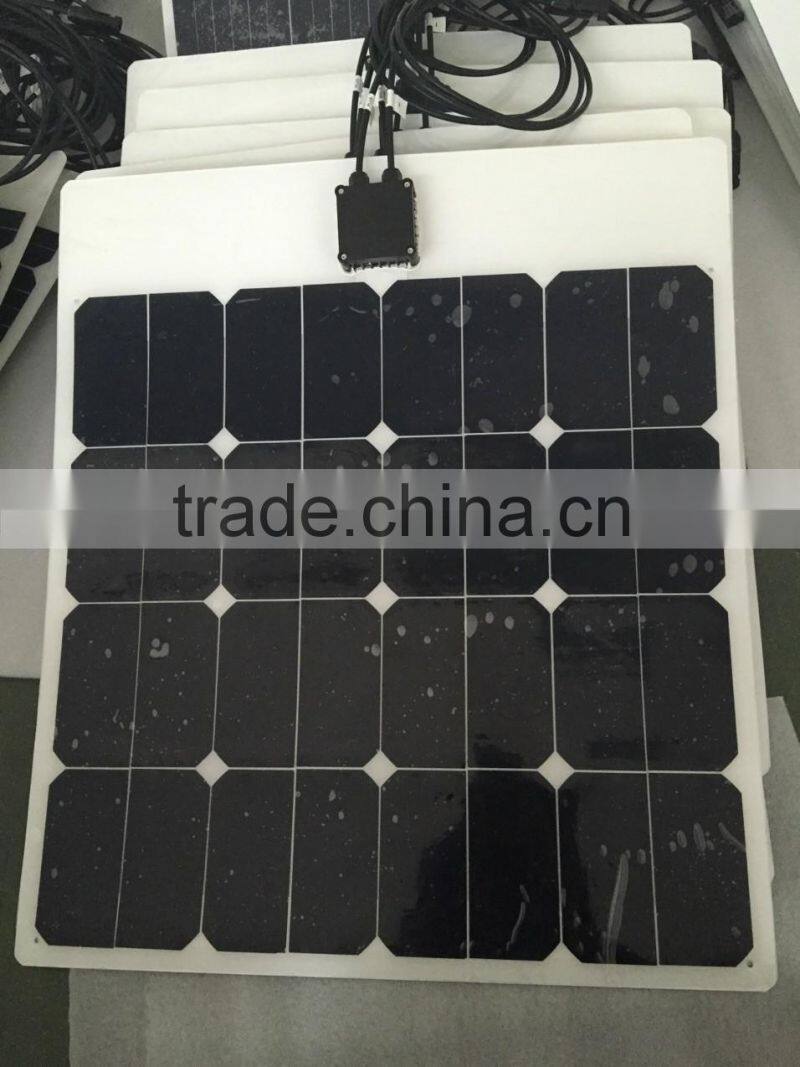

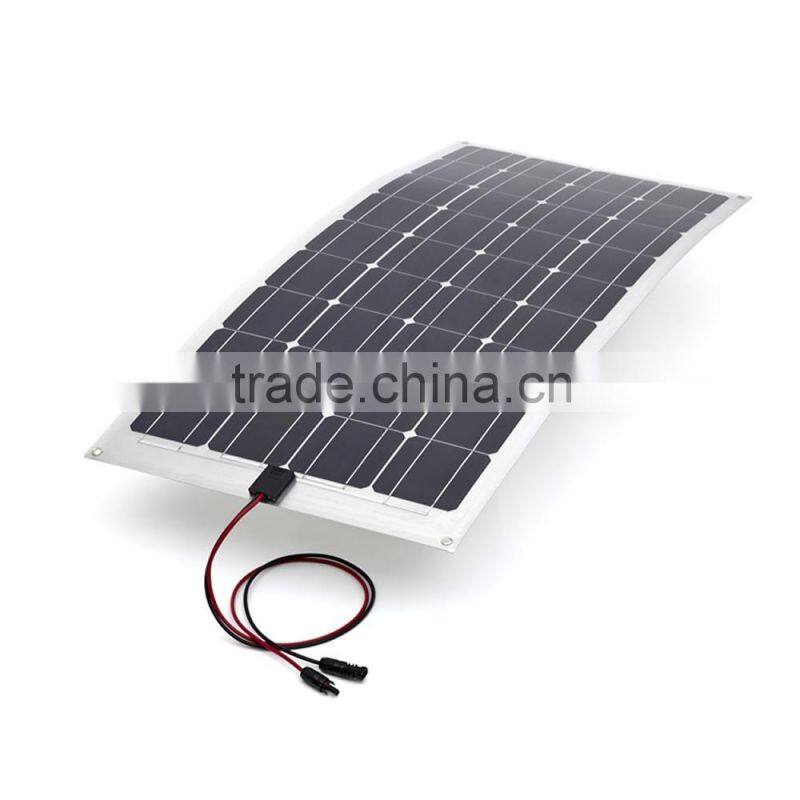

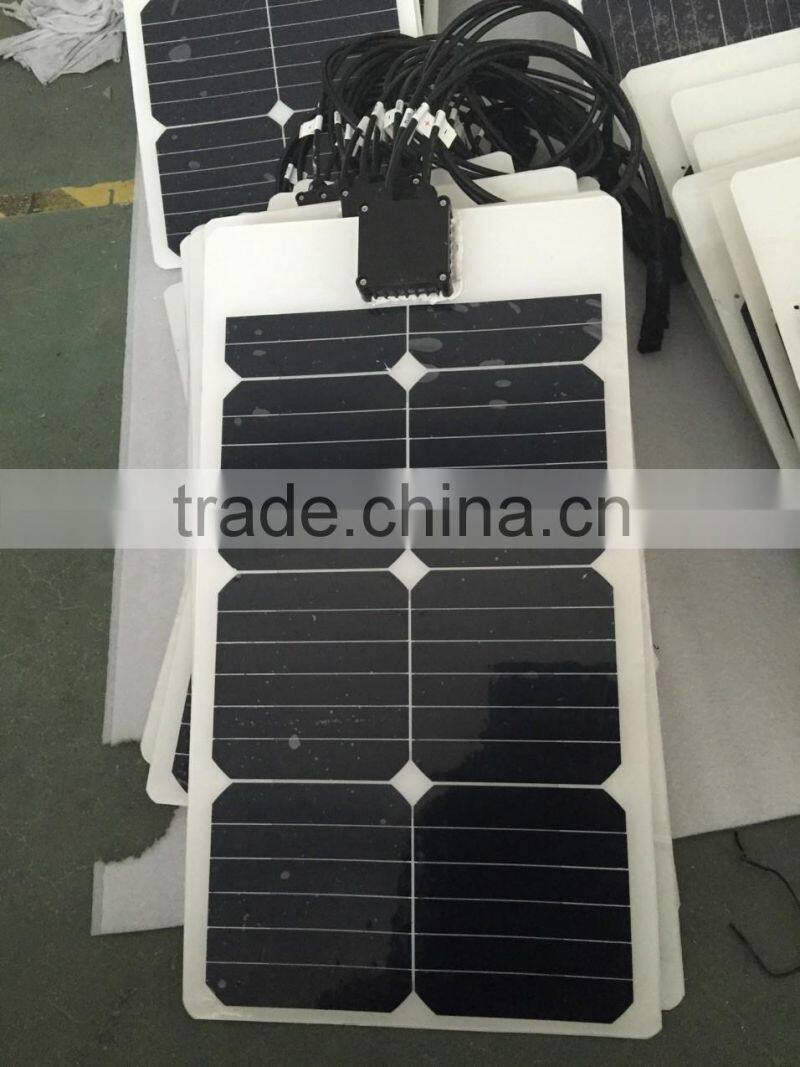

5W-300W flexible solar panel with best prices for solar system
Brand |
Fengren |
||
Model number |
30w flexible amorphous solar panel |
||
characteristics | |||
Size |
680*285*4mm |
||
Cell dimension |
125*125mm |
||
No. Of cells |
10(2*5) pieces |
||
Electrical Performance | |||
Maximum power voltage |
4.80V |
||
Maximum power current |
6.25A |
||
Open circuit voltage |
6.00 V |
||
Short circuit current |
6.88A |
||
Peak power |
30W |
||
Power tolerance |
0~+3% |
||
Maximum system Voltage (V) |
1000 V |
||
Working Conditions & Parameters | |||
NOCT cell |
46±2 °C |
||
Temperature coefficient Isc (%) |
+0.04±0.015%/ °C |
||
Temperature coefficient Voc (%) |
-0.3±0.02%/ °C |
||
Temperature coefficient Pm (%) |
-0.45±0.05%/ °C |
||
Temperature coefficient Im (%) |
+0.04%/ °C |
||
Temperature coefficient Vm (%) |
-0.32±0.02%/ °C |
||
Operating temperatures |
-40°C ~+90 °C |
||
Surface pressure |
60m/s (200kg /m2) |
||
1. Reply your inquiry in 12 working hours
2. Customized design is available, OEM is welcomed
Q: How to palce an order after choosing the products?
A: Please contact our customer service representative for details.
Q: Can you accept OEM service?
A: Yes, we can. Qty is not the only standard, more quality, less cost.
Q: How about your after sales-service?
A: 10 years limited warranty on material and workmanship,
12 years warranty on power output to not fall below 90%,
25 years warranty on power output to not fall below 80%.
Q: How about your payment terms?
A: We accept T/T, Western Union, Money Gram, L/C.
Q: What certification do you have?
A: We have CE/IEC/CSA/CQC/CEC or According to your need, if you place an big order.
How do solar panel work?
PV cells are made from layers of semi-conducting material, usually silicon. When light shines on the cell it creates an electric field across the layers. The stronger the sunshine, the more electricity is produced. Groups of cells are mounted together in panels or modules that can either be mounted on your roof or on the ground.
The power of a PV cell is measured in kilowatts peak (kWp). That's the rate at which it generates energy at peak performance in full direct sunlight during the summer. PV cells come in a variety of shapes and sizes. Most PV systems are made up of panels that fit on top of an existing roof, but you can also fit solar tiles.
