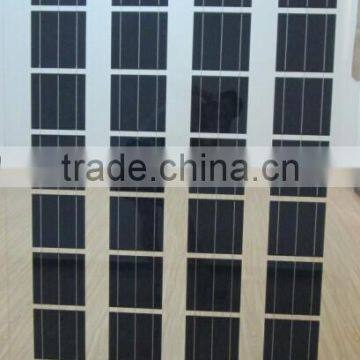

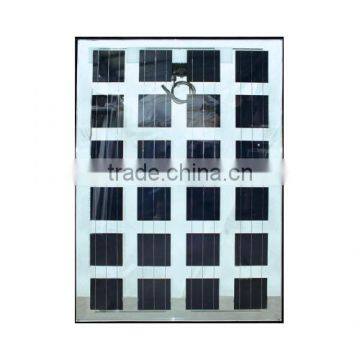

high quality good price transparent thin film solar panel for customized BIPV
BENEFITS
- 25 Years linear performance warranty.
- 12 years warranty on power output not fall below 90%
- 10 Years warranty on material and workmanship
- 24 hour-response service
- Enhanced design for easy installation and long-term reliability
FEATURES
- Cost-effective standard solar modules for skylight, roofing and facades applications
- 0 to +3% positive tolerance for mainstream products
- Withstand high wind loads and snow loads (6000Pa)
- Anti-reflective highly transparent, low iron tempered glass
- Excellent weak light effects (in cloudy weather and morning, evening with high performance)
- Light transmittance 50%
Typical Electricity Characteristics
| Type | FR-DG60P |
| Max. Power(Pmax/W) | 250W |
| power Tolerance | 0-3% |
| Working Voltage(V) | 30.7 |
| Working Circuit(A) | 8.15 |
| Open circuit voltage(V) | 37.4 |
| Short circuit current(A) | 8.63 |
| Max. System Voltage(V) | 1000 VDC |
| Cell Size and Series | 156*156mm Poly 60pcs(6*10) |
| Temperature Coefficients of Pmax | -0.45%/°c |
| Temperature Coefficients of Voc | -0.35%/°c |
| Temperature Coefficients of Isc | +0.05%/°c |
| NOCT | 47±2°c |
| Standard Test Condition | Irradiance leval 1,000W/M2, Spectrum AM 1.5, and Cell Temperature 25 ℃ |
| Cable lengh | 900mm |
| Transmit rate | 50% |
| Weigh | 30 |
| Service lifepan | 25-30 years |
| Packing | Carton+ Wooden Box |
Application
Building-integrated photovoltaics (BIPV) are photovoltaic materials that are used to replace conventional building materials in parts of the building envelope such as the roof, skylights, or facades.They are increasingly being incorporated into the construction of new buildings as a principal or ancillary source of electrical power, although existing buildings may be retrofitted with similar technology. The advantage of integrated photovoltaics over more common non-integrated systems is that the initial cost can be offset by reducing the amount spent on building materials and labor that would normally be used to construct the part of the building that the BIPV modules replace. These advantages make BIPV one of the fastest growing segments of the photovoltaic industry.
Skylight, roofing, and facades application
Carton+Wooden box
1. Supply all kinds of Solar Modules
2. Reply your inquiry in 24 working hours
3. Customized design is available, OEM is welcomed
Q: How to palce an order after choosing the products?
A: Please contact our customer service representative for details.
Q: Can you accept OEM service?
A: Yes, we can. Qty is not the only standard, more quality, less cost.
Q: How about your after sales-service?
A: 10 years limited warranty on material and workmanship,
12 years warranty on power output to not fall below 90%,
25 years warranty on power output to not fall below 80%.
Q: How about your payment terms?
A: We accept T/T, Western Union, Money Gram, L/C.
Q: What certification do you have?
A: We have CE/IEC/CSA/CQC/CEC or According to your need, if you place an big order.
How do solar panel work?
PV cells are made from layers of semi-conducting material, usually silicon. When light shines on the cell it creates an electric field across the layers. The stronger the sunshine, the more electricity is produced. Groups of cells are mounted together in panels or modules that can either be mounted on your roof or on the ground.
The power of a PV cell is measured in kilowatts peak (kWp). That's the rate at which it generates energy at peak performance in full direct sunlight during the summer. PV cells come in a variety of shapes and sizes. Most PV systems are made up of panels that fit on top of an existing roof, but you can also fit solar tiles.
