250w Solar Modules PV Panel

Name: 250w Solar Modules PV Panel
Brand: Green Tech
SKU: 126439541

US$ 0.3 - 0.5 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Green Tech

Model Number:

GT-PV002 250w Solar Modules PV Panel

Haining Green Technology Import & Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai & Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Green Tech

Model Number GT-PV002 250w Solar Modules PV Panel

Material Polycrystalline Silicon

Size 1600x1050x35mm

Number of Cells 96

Max. Power 265

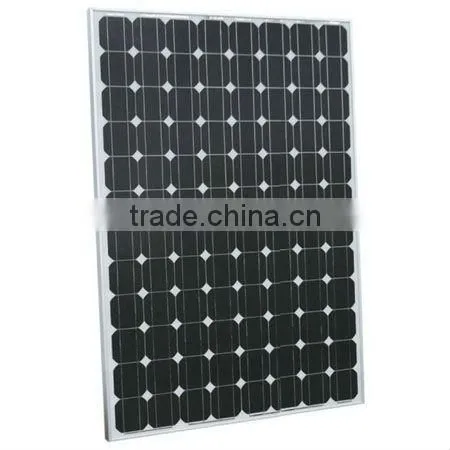

250w Solar Modules PV Panel

1).Solar panel:250W
2).Certification:TUV/IEC61215&61730,UL1703/CSA,CE,ISO9001:2008,ISO14001,OHSAS18001 and etc.
3).Type:Mono

Electrical Data
MONO	PWM-250W
Nominal peak power(Pmax)	250Wp
Maximum power voltage(Vmp)	48.96V
Maximum power current(Imp)	5.11A
Short-circuit current(Isc)	5.53A
Open circuit voltage(Voc)	59.2V
Optimized cell efficiency(η)	17.40%
Power tolerance: ±3%

Limits
Operating temperature	-40°C to +85°C
Maximum system voltage	1000VDC

Temperature and Coefficients
NOCT	48°C±2°C
Current temperature coefficient	%/°C	0.05
Voltage temperature coefficient	%/°C	-0.33
Power temperature coefficient	%/°C	-0.34
NOCT:Nominal Operation Cell Temperature

Additional Data
Number of cells and type of connection	96,serial connection
Dimensions	Length:1600mm Width:1050mm Height:35mm
Net weight	21.0kgs/pc
Gross weight	623kgs/ctn(28pcs/ctn) 46kgs/ctn(2pcs/ctn)
Package dimension	1655x1140x1198mm 1618x1080x110mm
Container loading	784PCS/40'HQ 28PCS/CTN 252PCS/20'GP 2PCS/CTN
STC: Irradiance of 1000W /m2, Air Mass of 1.5, Cell Temperature of 25°C

Guaranteed Power Output Warranted Tolerance: ±5%	15 year:90% of its nominal power rating
	25 year:80% of its nominal power rating
Impact Resistance	Can bear the force that is generated by one 227g
	steel ball fall down from 1m height
Warranty period	10 years:Materials and workmanship defects
Certificates	CE,ISO,IEC61215&61730(TUV),UL1703/CSA,MCS
Cells	Monocrystalline silicon photovoltaic cell
