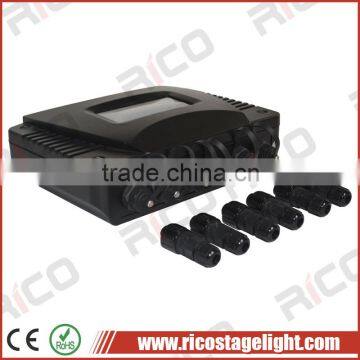

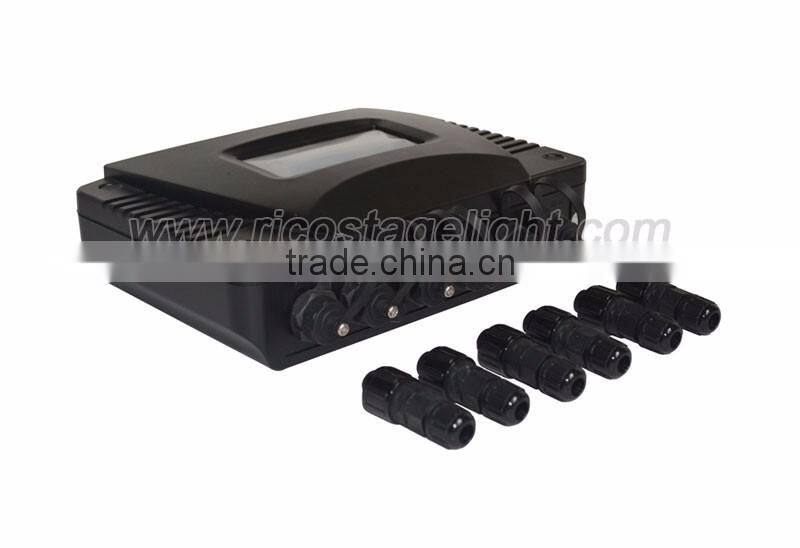

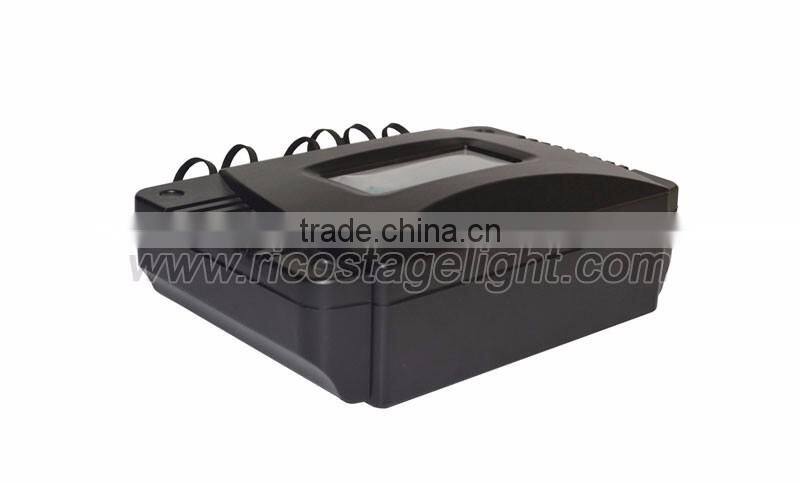

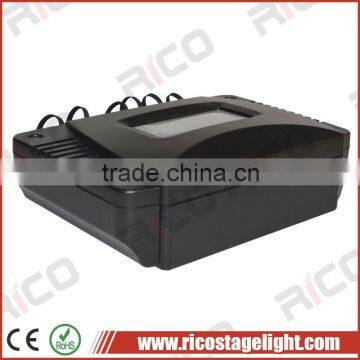

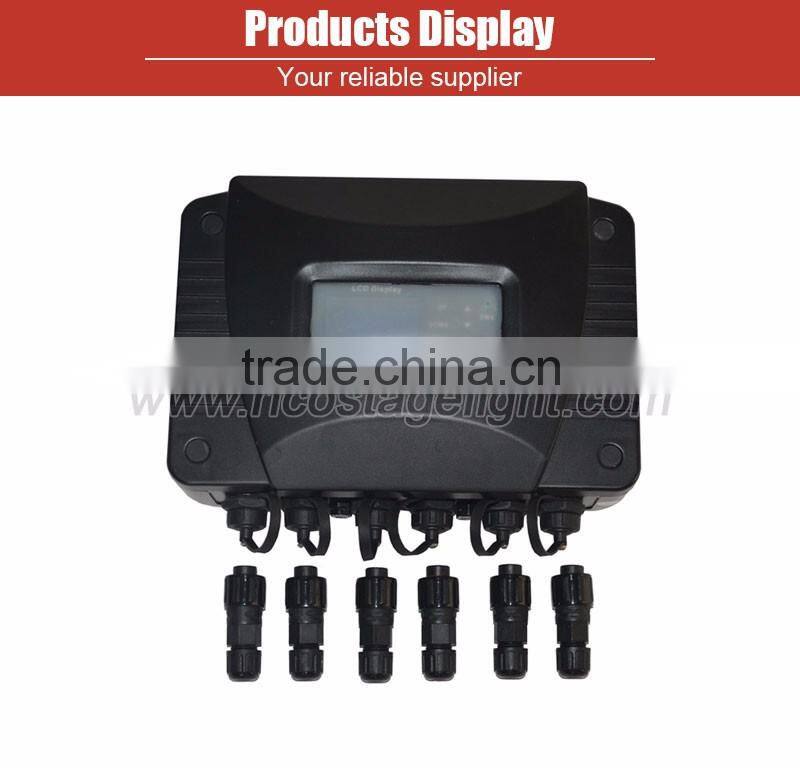

Help CenterDMX 512/1990 Standard IP65 Dmx in / Out 4 Ways Outdor Dmx Distributor
Related Products
-
Dmx Equipment Stage Lighting IP65 4-ways Outdoor Dmx Splitter WirelessUS$ 100 - 100MOQ: 1 Unit -
8-ways Splitter With One Input XLR Pin3 Pin5 Dmx Distributor WirelessUS$ 100 - 100MOQ: 1 Unit
-
Guangzhou Dmx 512 XLR Pin3 Distributor 8 Ways Dmx SplitterUS$ 90 - 90MOQ: 1 Unit
-
Professional Stage Equipment Wholesale 1500w Mist Hazer MachineUS$ 1 - 200MOQ: 1 Piece
-
Independent Input and Output XLR Pin3 / XLR Pin5 8DX Dmx DistributorUS$ 100 - 100MOQ: 1 Unit
z DMX512/1990 standard
z One DMX512 input four-way output DMX distributor
z Separate signal amplifier system and LCD display show each channel working status directly
z Wide input voltage: AC88~256V 50/60Hz
z Dimension:210mm × 150mm × 70mm
z Net Weight: 0.8KG
New Feature
z IP65 --- outdoor use freely
z Input/output DMX signal auto self-test
z Hight voltage protection
z Independent input/output signal and power supply to protect your console and light
fixtures
DMX signal test instruction
This function is very helpful and convenient to check DMXsignal system status especially for project and mobile show.It include two modes -- test input signal from DMX console and output signal from itself to lighting fixture.
The default setting is not receive or transmit signal while power on.When receive signal from DMX console, the internal DMX signal tester will auto test signal and input DMX512 signal datas & status could be checked if it is correct. The display will show details directly. If the input signal isn't standard DMX512 signal, the tester will not work and it's necessary to check signal cable and whether console work well.
If there is no signal from console, the tester will send DMX signal to connected lighting fixture and DMX channel value between 0-255 could be adjusted manual to check signal cable connections and console whether correct or not. Once there has input DMX signal from console, the tester will stop to send DMX512 signal and auto-switch to signal receive status without any disturb to the normal work of your console.
Up to CE standard, UL standard and GB 7000.15-2000 standard
