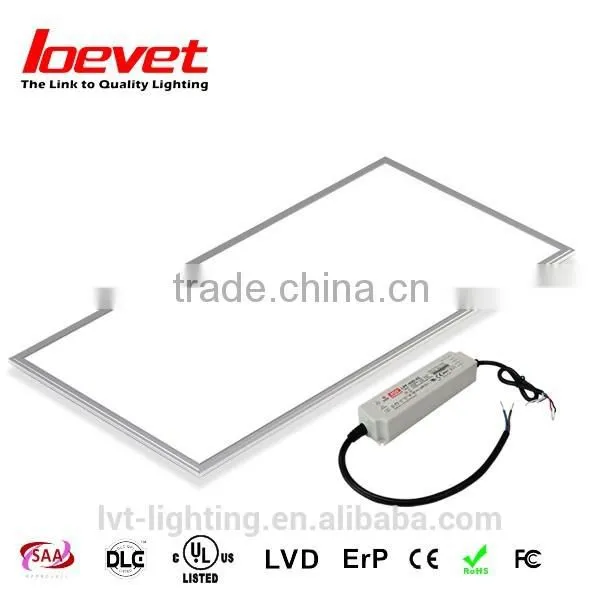

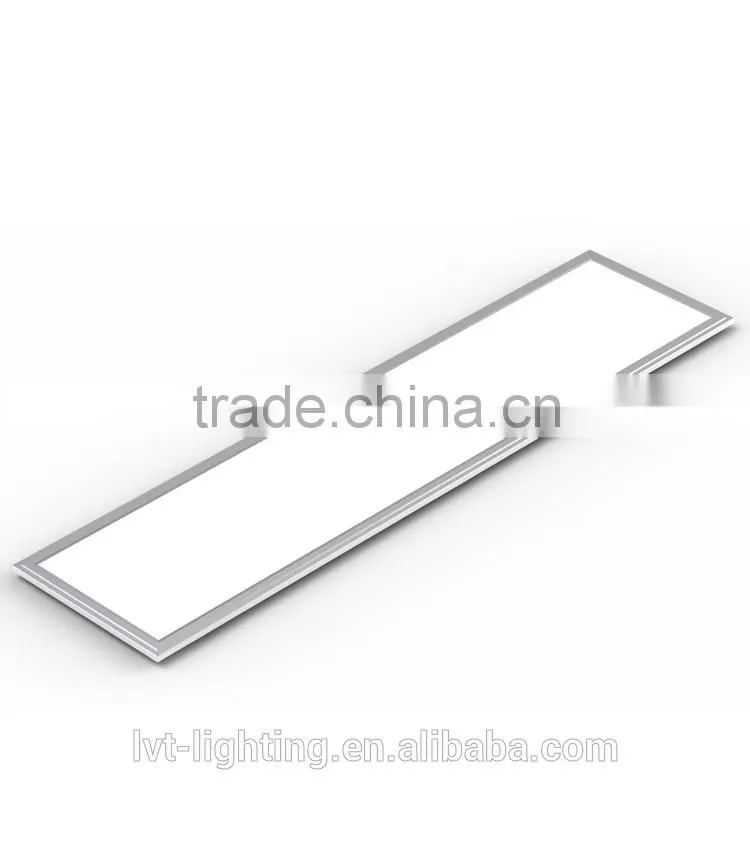

2x4 72W dimming led panel lights, UL, cUL, DLC listed
UL file no.: E471481
1, Product description:
Side lit LEDpanel lights is originally developed to replace traditional fluorescent tube grid or troffer. Based on even, soft and bright light, it is widely used at such facilities as office, shopping mall, hospital, school...
2, Features:
1, LM80 test report LED, green and reliable light source;
2, Replace 3x 40W fluorescent tubes direct, saving energy;
3, Long lifespan, over 50,000 hours;
4, All sides are lined with LED, ensure optimal illumination;
5, High level Chimei light guide plate(LGP), effective and even light distribution;
6, Top brand constant current Meanwell driver, ensure the fixture work stably;
7. No start-up time, no flickering, no humming;
8, High efficiency light output, up to 100Lm/W;
9, UL, cUL and DLC approvals;
10, 0-10V dimmable;
11, Long warranty: 5 years.
3, Specifications:
Model no. |
LVT-PL60120- 72 |
Input voltage ( 50/60Hz) |
AC 100-277V |
Power consumption |
72W |
Power factor |
>0.9 |
power harmonic(THD) |
< 20% |
Light source |
SMD LED 2835 |
Colour temperature |
3000K /4000K / 6000K (optional) |
CRI |
Ra> 80 |
Flux luminous |
7000- 7200LM |
View angle |
120° |
Materials |
AL frame, PS diffuser, LGP, reflection film, LED driver |
IP rating |
IP40 |
Life Span |
50,000 hours |
Operation temperature |
-10deg C to 40deg C |
Dimension |
603*1203*12.5mm |
Package |
710x 1310x290mm |
Gross Weight (G.W.) |
39.7KG |
Installation Method |
Recessed, Suspended, or surface mounted |

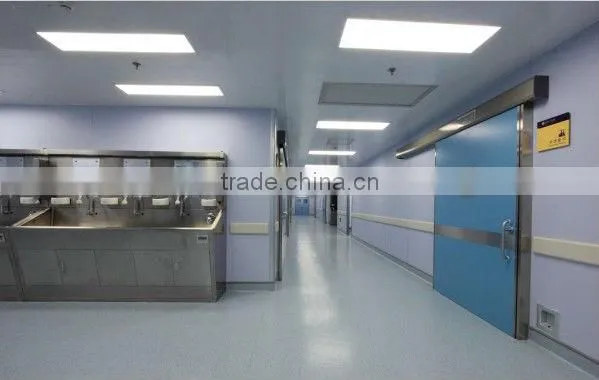

4, Applications:
Office, conference or meeting room, hospital, gym, fitting room, shopping mall, restaurant…
5, Hi-resolution images of our company & product
Certificates :
No-dust workshop
Packaging:
