6 inch 12W Meanwell driver recessed LED fixture UL cUL listed
UL file no.: E471481
1, Features:
1, LM80 test report LED, green and reliable light source;
2, Replace fluorescent down light or ceiling light, saving energy;
3, Long lifespan, over 50,000 hours;
4, High level Chimei light guide plate(LGP), effective and even light distribution;
5, Top brand constant current Meanwell driver, ensure the fixture work stably;
6. No start-up time, no flickering, no humming.
7, High efficiency light output;
8, UL, cUL approvals;
9, 5 years warranty.
2, Specifications:
Model no. |
LVT-DL180-12 |
Input voltage ( 50/60Hz) |
AC 100-240V |
Power consumption |
12W |
Power factor |
>0.9 |
power harmonic(THD) |
< 20% |
Light source |
SMD LED 2835 |
Colour temperature |
3000K /4000K / 6000K (optional) |
CRI |
Ra> 80 |
Flux luminous |
840- 900LM |
View angle |
120° |
Materials |
AL frame, PS diffuser, LGP, reflection film, LED driver |
IP rating |
IP40 |
Life Span |
50,000 hours |
Operation temperature |
-10deg C to 40deg C |
Dimension |
dia 180*12.5mm (cutout dia: 165mm) |
Package |
560*350*375mm |
Gross Weight (G.W.) |
17.6 KG, 20pcs |
Installation Method |
Recessed mounted |
3, Applications:
Commercial office, hotel, hospital, school, fitting room, shopping mall, restaurant…
Images on our company and products:
non-dust factory
Integrating sphere testing

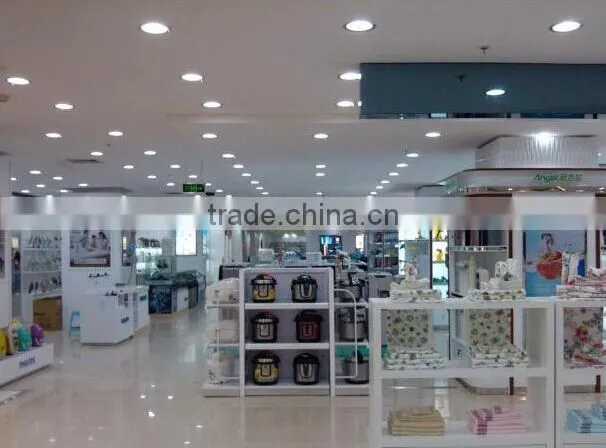

Product and cases
UL certificate
