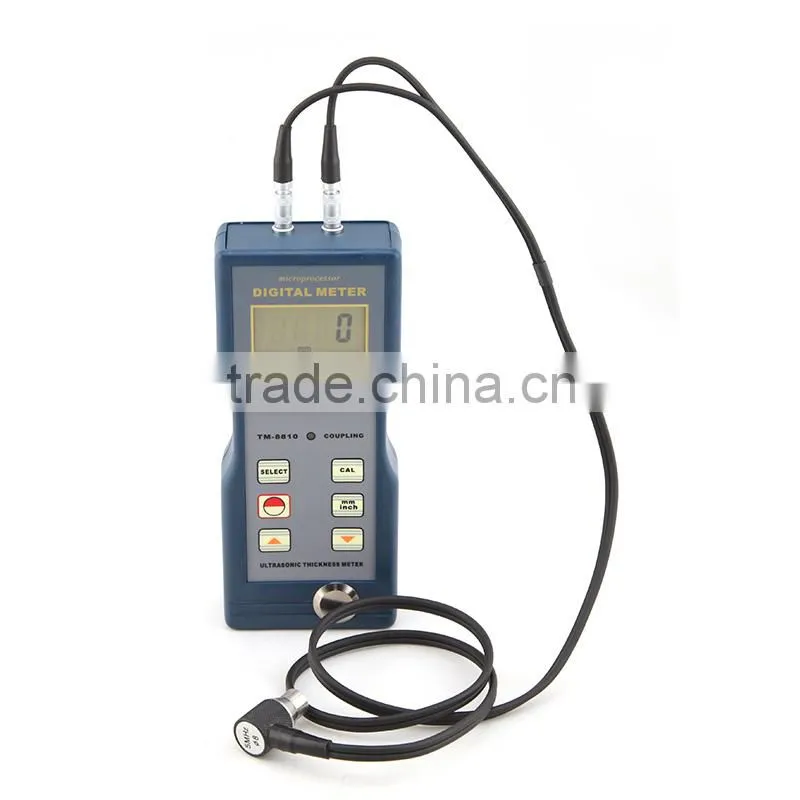

tm-8810 digital glass thickness gauge 200 mm
Applications:
Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in
industries of petroleum, shipbuilding,power station,and machine manufacturing.
* Wide Measuring Range and high resolution. With high power emission and broad band receiving sensitivity, the
gauge can match probes of different frequencies. That makes it easy to measure the rough surface, even cast iron.
It is widely used in almost all kinds of industries.
* Applicable to measure the thickness of many materials, e. g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc,
Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
* Used the exclusive Micro-computer LSI circuit and crystal time base to offer high accuracy measurement & fast
measuring time.
* Automatic power off to conserve power.
* Digital display gives exact reading with no guessing or errors.
Display: 4 Digit, 10 mm LCD
Operating Principle: Ultrasonic
Measuring Range (metric / Imperial): 1.5~200 mm / 0.06~8 inch
Battery Indication: Low Battery Indication
Lower Limit Steel Pipes: Determined By Transducer
Calibration Block: Included
Resolution: 0.1 mm
Accuracy: ± (0.5%n + 0.2)
Operating Conditions: Temperature: 0~40 °C, Humidity: < 85 %RH

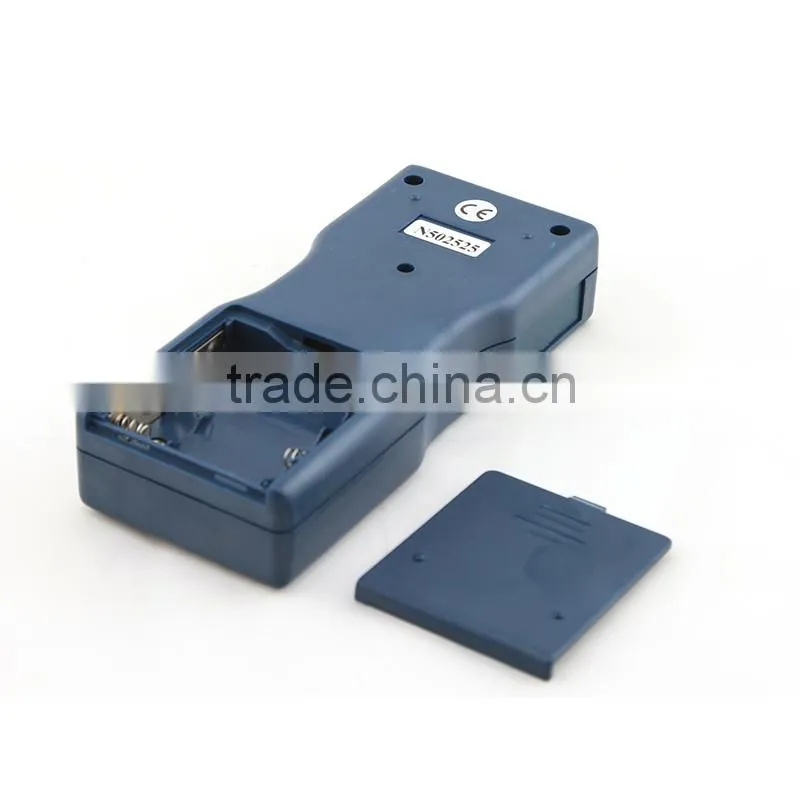

Power Supply: 4 x 1.5 V AA (UM-3) Battery(not included)
Dimensions: 160 x 68 x 32 mm (5.5 x 2.8 x 1.2 inch)
Weight: About 208 g (Not Including Batteries)
Standard Accessories:
1. Main Unit

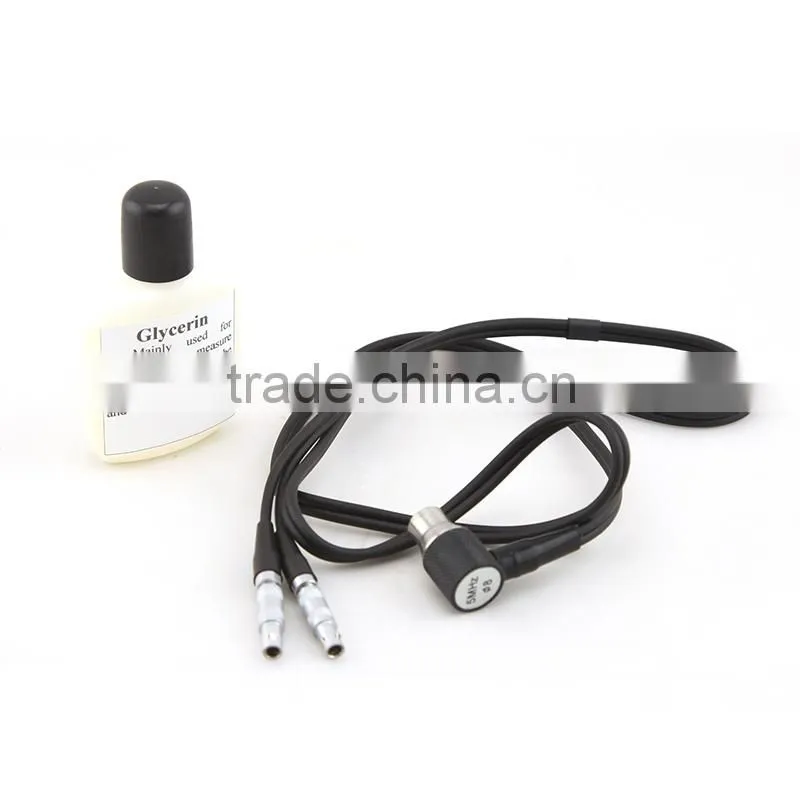

2. 5MD8 Standard Sensor
3. Coupling Agent
4. Carrying Case
5. Operating Manual
Optional Accessories:
1. 6M D6 mm thin Material Probe: Measuring range (steel): 1.0~50.0 mm Operating temperature: -10~60°C
2. 5M D12 mm High Temperature Probe: Measuring range (steel): 1.0~225.0 mm (normal temperature)
Measuring range (steel) : 4.0~100.0 mm (high temperature) Operating temperature: -10~300°C
3. Curved Surface Probe
