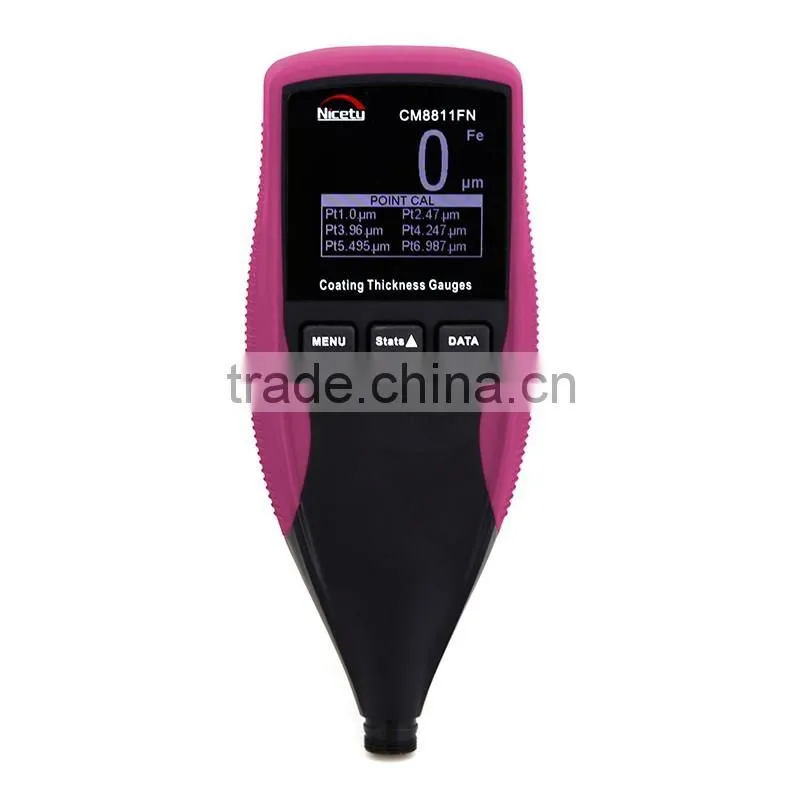

2 in 1 type 320 x 240 TFT LCD mil thickness gauge on Steel or Iron CM8811FN
The CM8811FN Coating Thickness Gauge sets new standards making measuring dry film thickness faster, reliable and accurate; helping you to become more efficient. The CM8811FN is available in two different languages, with memory and adjustable backlight.
Ideal for Automobile...
Dealerships, Professional Car Buyers, Appraisers, Inspectors, Painters, Detailers, Body Shops, and more...
Identify repainted panels and all previous refinish work.
Buff with precision and confidence. Locate where extra work is needed.
Improve finish consistency and quality.
Cut expensive paint materials and costs.
Show customers where more paint stripping or re-clearcoating is needed.
Determine depth of acid rain damage.
- Double color rubber shell more fashionable and durable.
- Continuous and Single Measurement available.
- Large screen display shows any combination of Mean/Min/Man/Sdev.
- Set higher and lower alarm range for measuring.

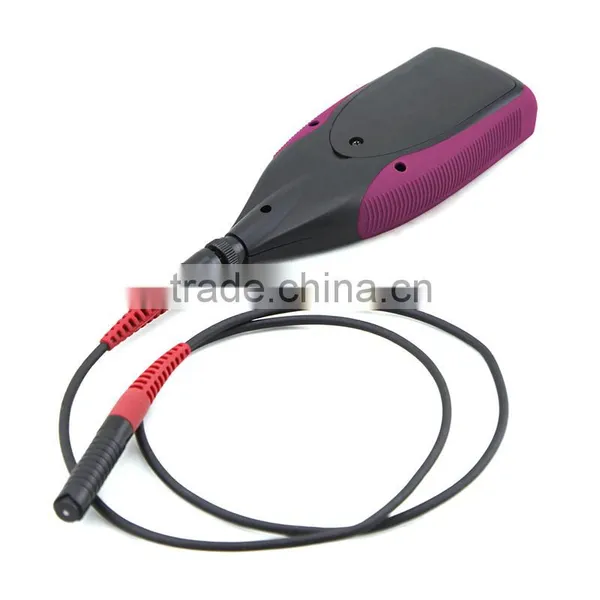

- The probe length 1m better suited to measure small space.
- Automatically recognizes the material and takes an accurate measurement.
- 320 x 240 TFT LCD, Can be arbitrary adjustable the brightness of the backlight, so even in the sun can easily read values.
- Automatic Substrate Recognition
- Data storage for the last 50 measures.
- Mils / Microns selectable. Displays readings in Metric (μm) or Imperial units (mil).
- Manual Calibration is now possible for specific applications.
- ZERO set feature for non-standard surfaces.
- Automatic power OFF
The F/NF 2 in 1 type probe Measures coatings on ANY METAL including steel, aluminum (including Anodizing on Aluminum), brass, etc.
Fe-Probe |
Measurement on Steel or Iron |
|
NFe-Probe |
Measurements on Aluminum (or Any Other Non-Ferrous Metal) |
|
Range |
0 - 1250um or 0 - 50mils |
|
Resolution |
1um or 0.1mils |
|
Accuracy |
0.1 mils + 2% or 2um+ 2% of readings |
|
Temperature range |
Storage |
-10℃to 60℃ (14℉ to 140℉) |
Operation |
0℃ to 60℃ (32℉ to 140℉) |
|
Power Supply |

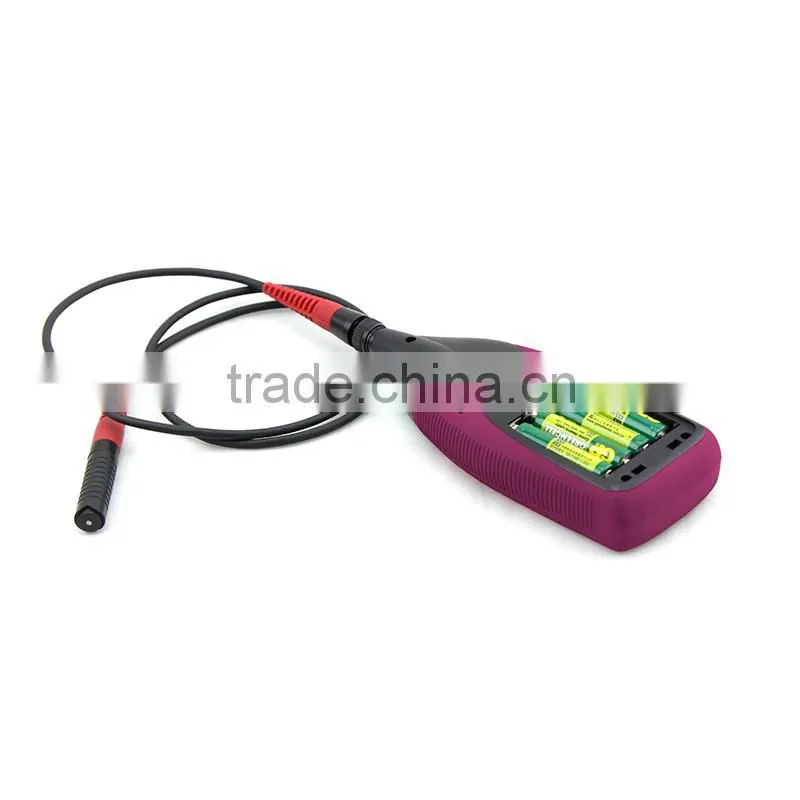

4x 1.5V AAA Alkaline |
|
Dimensions |
118 mm x 51 mm x 27 mm |
|
Weight |
148 g (not Including batteries) |
|

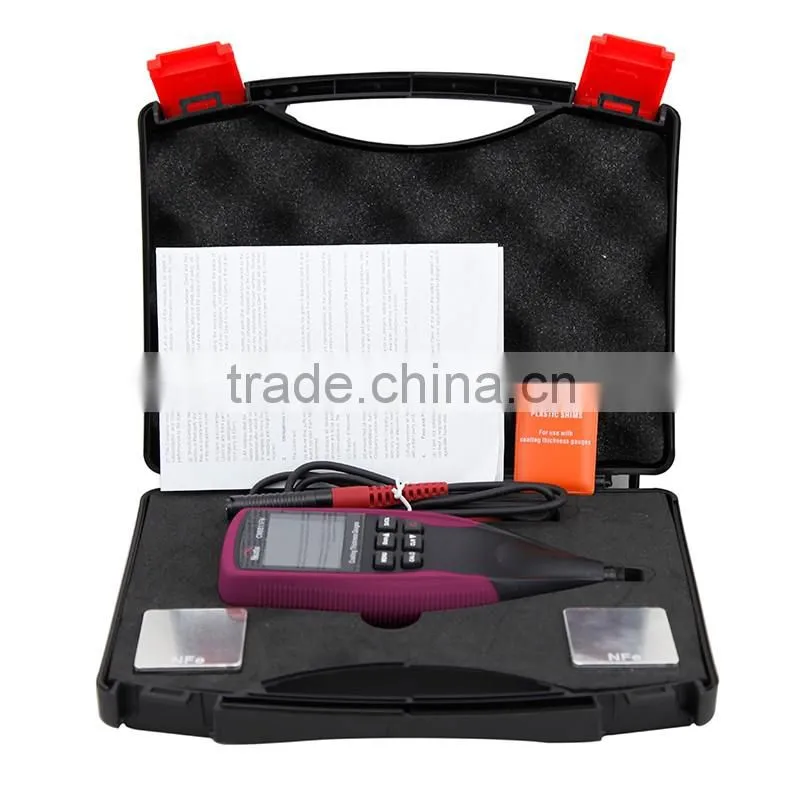

Carrying case
2 in 1 type test probe
Substrate blocks (steel x 1pc, Aluminumx1pc)
Calibration foils (50μm, 100μm, 250μm, 500μm, 1000μm)
English manual
