CNC trapezoidal profile color steel roof panel single cold roll forming machine
- 150 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Credit Card
Product Details
Condition: | New | Type: | Tile Forming Machine | Tile Type: | Colored Steel |
Use: | Roof | Production Capacity: | 8-12m/min | Place of Origin: | Hebei, China |
Brand Name: | Dongchang | Model Number: | 650-1250 | Power(W): | 4+4KW |
Voltage: | 380V 50Hz 3phases, 380v/50hz/3phase | Dimension(L*W*H): | According to your requirements | Weight: | 3-6 Tons |
Certification: | ISO CE | Warranty: | 18 Months, 14 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
CNC trapezoidal profile color steel roof panel single cold roll forming machine
aluminium rolling machine
Type | Corrugated steel forming machine, trapezoid roof forming machine |
Model | Single layer/ Double layer |
Effective width | 600-1250mm |
Raw materials width | 1000-1500mm |
Product thickness | 0.13-0.8mm |
Processing speed | 10-16m/min |
Step of rollers | 8-15 steps |
Material of roller shafts | 45 #chrome steel |
Shear material | Cr12 high strength steel with quenching |
Control system | PLC |
Voltage | 380v/50hz/3phase |
Power | 3kw |
Dimension | 4800*1300*1200mm |
Weight |
3-6tons |
Warranty |
14 months |

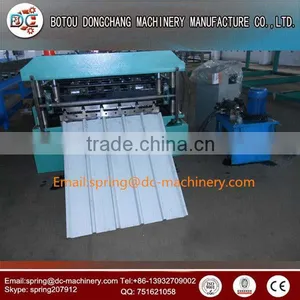

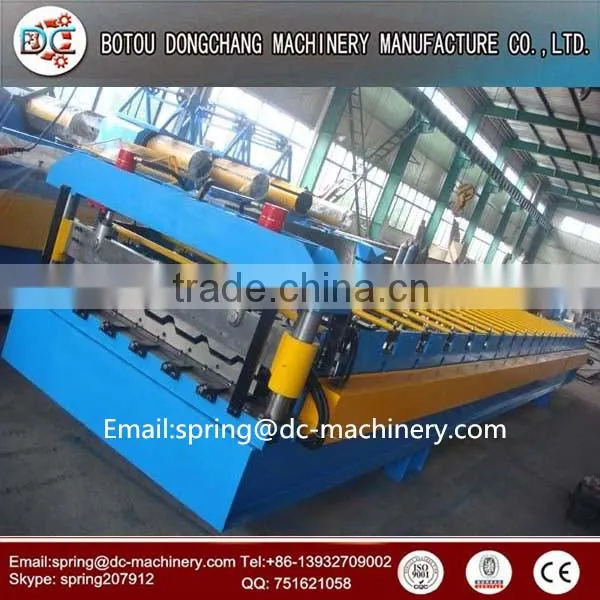

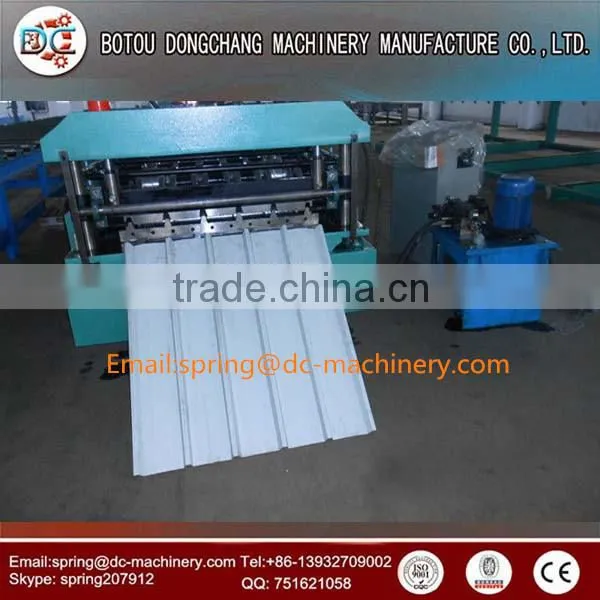

Our rolling machine picture
Our machine and others' machine comparison:
- 1)Our roofing sheet roll forming machine has hand knife at the end of the line.It can help you save Raw Material.
- 2)Our roofing sheet roll forming machine has two cylinders at least. Because the frictional force of shearing machines is very big. One cylinder machine has shorter using life.
- 3)Our roll forming machine has protective screening. Safer for the workers.
No. | Name | Unit | Qty |
1 | Decoiler | set | 1 |
2 | Main machine for roll forming | set | 1 |
3 | Control system | set | 1 |
4 | Hydraulic system | set | 1 |
6 | Post cut | set | 1 |
7 | Output table | set | 1 |
Our rolling machine work flow:
1.manual uncoiler-- 2.roll forming machine-- 3.PLC control box-- 4.hydraulic system-- 5.post cut-- 6.output table
Our roll forming machine parts pictures:
Some popular roof shapes of roof rolling machine:
Glazed roofing sheet roof shapes:
- 1)Color steel wall and roof tile sheet roll forming machine / Metal tile making machine
- 2)C/Z purlin channel roll forming machine
- 3)Floor decking forming machine
- 4)Highway guardrail roll forming machine
- 5)Sandwich panel roll forming machine
- 6)Glazed roof roll forming machine
- 7)Sheet metal bending machine
- 8)Double layer roof&wall roll forming machine
- 9)Roofing Ridge rolling machine
- 10)Hydraulic Down Pipe/Gutter making Machine
- 11)Hydraulic punching press machine
- 12)Stud and Track forming machine
- 13)Light keel roll forming machine
- 14)Roller Shutter Door Roll Forming Machine
- GI/GL
- PPGI/PPGL
- Roof Sheet (any roof shape, width, or color)
Botou Dongchang Machinery Manufacture Co.,Ltd is the largest forming machine producer in North of China. We have more than 40 years production history. Insisting on the introduction of foreign advanced technology and combining with domestic actual situation all the time. Our roof tile roll forming machine, c-purlin machine, color coated equipment, dust suppression plate forming machine, sandwith panel produce line, shearing machine, bending machine, glazed roof tile roll forming machine, floor deck roll forming machine and other equipment has the domestic leading level, some products reached the international advanced level.
1). Tighten to container with steel wire rope and welded machine with container by angel iron .
2). Main forming machine and un-coiler is naked(If you need we can also packed with water-proof plastic).
3). PLC contral system and motor pump are packed in wooden box with water proof paper coverage.
Color steel sheet rolling machine:
1. we provide our customers with 12 months' warranty.
2. Any parts damaged due to quality problem shall be changed for free within the first year.
3. Technical guide is provided during whole life of the machine.
4. Oversea services will be provided but any cost thus incurred will be paid by the buyers.
A:- What service can you provide before order?
- About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.
B:- Can you finish the machine during the delivery time?
- We will finish the machine in time according to determined lead time.
C:- Can you provide some spare parts?
- Yes, of course. The quick-wear parts are sent to you together with the machine.
D:- What is the after- sale service?
- About the after-sales service. We can send technician to your country to fix the machine.The buyer should bear all the cost including: visa , Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $50 per day to maintain the machine. And the components are not free, if you need to get it from us.
E:- Any other service?
- We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
It is free to assemble machine and train your works, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.
F:- Can you accept OEM?
- We can accept OEM.
G:- What is the payment term?
- Our payment term is TT, 30%TT as the deposit, before shipping pay the last 70%TT
H:- Any certification?
- Yes, we have CE TUV BV certification.
If you have any question about our machine, please draw up your Inquiry details in the Dialog Box Below. Click "Send" Then I will serve you .
Looking forwards to hearing from you.
Other contacts:
Sale manager: spring yang
WhatsApp:+86 13932709002
Skype: spring207912
Mob/wechat: +86 13932709002
QQ:751621058
Tel:+86 18231794071
FAX:+86 0317 8196382
