Packaging Detail: Seaworthy bare packing, One 40 feet container & one 20 feet container for shipment. using steel wire and timber to fix the machine inside the containers

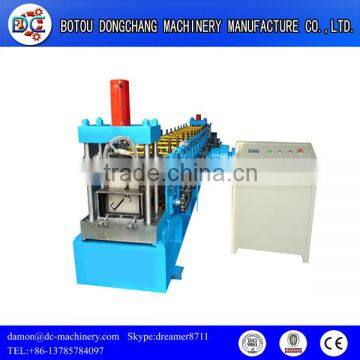

DONGCHANG C/Z/U purlin roll forming machine
Main technical parameter ( section size or other parameter can be manufacture )
Suitable material |
Color steel sheet , galvanized steel sheet, |
Main motor power |
11KW with Cycloidal reducer |
Hydraulic station power |
15KW |
Hydraulic oil |
36# |
Thickness of material |
2-3mm |
Diameter of principal axis |
Φ80mm |
Material expand width |
150mm-420mm |
Electric tension |
380V 3phase 50HZ or as the customer's requirements |
Material of roller |
CGr15 bearing steel HR58-60 |
Rolling galvanization thickness |
0.05mm |
Processing speed |
15m/min |
Processing precision within |
1.00mm |
Material of cutting blade |
Cr12 mould steel with quenched treatment |
Kind of drive |
0.6 inch chain link bearing model 6210 |
Roller station |
13 Rollers |
Dimension |
10.5m*1.7m*1.4m |
Weight |
6.7Ton |
Screen |
5.7 inch Taida screen |
Control system |
PLC |
We can provide the classic panel drawings for your choose,we also can make and design the kinds of roll forming machine according to your customization.
1. Innovation Experience Performance
2. Cold Roll Forming Machine: Precision Manufacturing Assured
3. Quality Supply: Satisfying Customer Needs. Quality Is Not An Act, It Is A Habit
4. Worldwide Service: Impressive Roll Forming Solution And Transport Lead Time

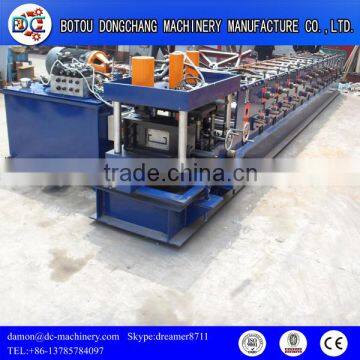

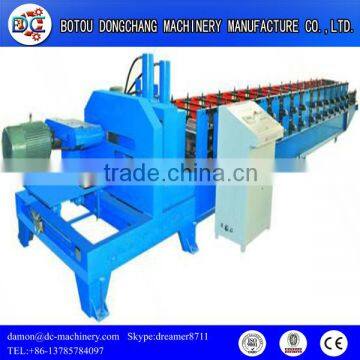

Picture show
If any questions ,please contact us.
Contact person: Damon
TEL:+86-13785784097
Skype:dreamer8711
