Help CenterDVB-C MPEG-II Digital TV Set Top Box
Related Products

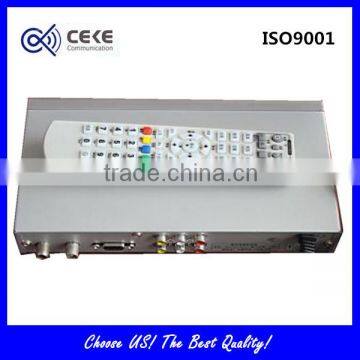

DVB-C MPEG-II Digital TV Set Top Box
Main Features:
1. All accord with DVB-C/MPEG-II standard.
2. Support 16,32,64,128,256QAM modulation.
3. Very low threshold of full band digital down converter.
4. 1000 sets of programs saved.
5. Friendly Chinese/English user interface.
6. Very high definition picture and high fidelity digital stereo output.
7. Conditional receiving function.
8. Support EPG.
9. Support RS232 serial port and remote upgrade.
Technical Specification:
Item |
Parameter |
Specification |
|
Down Converter Tuner |
Input Frequency |
49~860MHz |
Input Signal Level |
40dBuV~85dBuV |
|
Bandwidth |
8MHz |
|
Demodulation Mode |
QAM16,32,64,128,256 |
|
Symbol Rate |
3.6~6.952 M b/s |
|
Video |
Output Mode |
AUTO |
Decoding Format |
MPEG2 MP@ML |
|
Output Port |
RCA |
|
Input Level |
1.0Vp-p 75Ω |
|
Audio |
Decoding Format |
MPEG2(layer 1&2) |
Frequency Response |
20Hz~20KHz |
|
Sampling Pattern |
32 / 44.1 / 48 KHz |
|
Audio Output |
6dBu |
|
Power |
Working Voltage |
AC100~240V, 50/60Hz |
Power Consumption |
13W(Maximum) |
|
Working Temperature |
0℃~+40℃ |
|
