Terrestrial HD Digital TV ISDB-T Set Top Box

Terrestrial HD Digital TV ISDB-T Set Top Box thumbnail-1
Terrestrial HD Digital TV ISDB-T Set Top Box photo-1
US$ 1 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
CEKE
Model Number:
ISDBT-M5
Contact Supplier Request Quote Chat Now
Guilin CEKE Communication Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen/Guangzhou China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangxi, China
Brand Name CEKE
Model Number ISDBT-M5
Product description

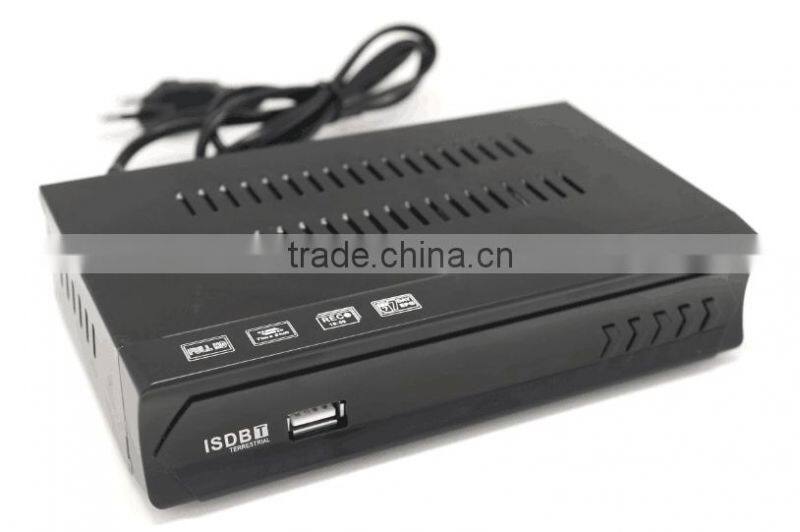

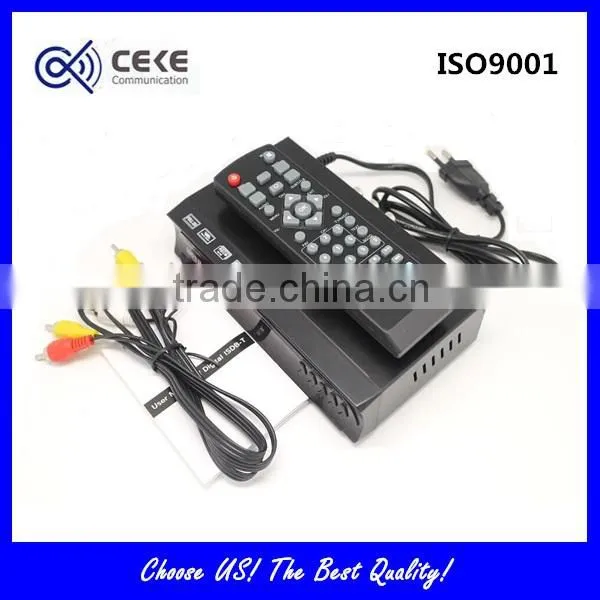

Terrestrial HD Digital TV ISDB-T Set Top Box

 Main Features:

1. Used for any ISDB-T countries like Brazil, Peru, Argentina,Chile,Venezuela,PhilippinesEcuador.
2. Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant .
3. Support 3D interface .
4. Support teletext/subtitle/muti-language.
5. Supported 7-Day EPG function, VBI Teletext.
6. AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen.
7. USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback.
8. Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P.CPU
Hardware
CPU
MSTAR-MSD7805(128 pin) MIPS 34Kf@600MHz
Memory
32X16Mbit DDR2 Frequency1066
Flash
32M bytes
Demodulator Type
ISDB SOC Chip Set
TUNER
Rafael R836


Front Panel
USB 2.0 Embedded One Host
4-digit LED display on front panel
red LED Standby,green LED Lock
Panel KEY, POWER, CH+ ,CH-




Rear Panel
Tuner RF input connector
EC-type IEC169-2 Female
Tuner RF Loop through connector
IEC-type IEC169-24 Male
HDMI V1.3/V1.4
RCA CVBS AL AR Connector x1
Ypbpr RCAx1
Coaxial x1
Power AC100~240V 50Hz/60Hz
Demodulation
Terrisal Receiver Standard
ISDB-T broadcast (1, 3, 13 segment)
Input RF Frequency
VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz.
Bandwidth
6MHz
Demodulation
QPSK / 16QAM / 64QAM/QPSK or DQPSK
FEC
1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic
Guard Interval
1/4，1/8，1/16，1/32
FFT Mode
2K/ 8K/32K
Input level
-83 ~ -5dBm
Decoder


Video Decoder
Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818
MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)
MPEG-2 Main Profile# Main Level(15Mbps)
H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)
Audio Decoder
MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA
E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding

Product Application

Terrestrial HD Digital TV ISDB-T Set Top Box is widely used in digital TV signal end receiving system.

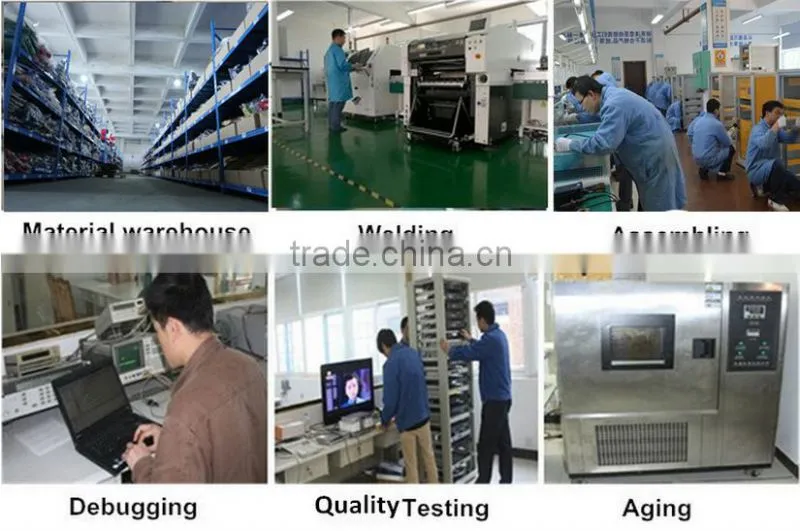

Company Information

Guilin CEKE Communication Co., Ltd.

Established in 2000, located in Guilin High-tech District Information Industrial Park. CEKE is recognized as "Guilin national microwave and optical communications high-tech industrial base", "Guangxi Zhuang Autonomous Region high tech enterprise" and "Zhongguancun digital TV industry association member".

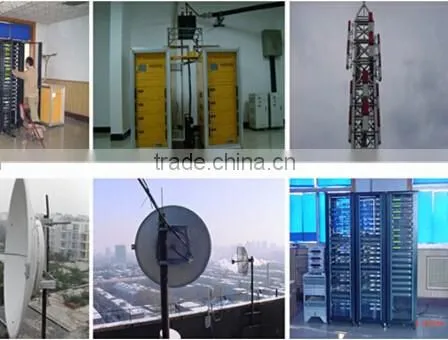

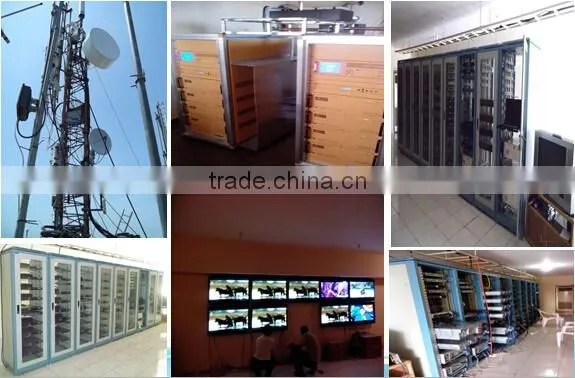

CEKE is a leading global provider of terrestrial digital TV wide frequency band transmitting system.

Packing & Delivery
Related Products

Transmitting Equipments

Antennas

Front-end Equipments and STB

FAQ

Q1.What equipment & solution your company can provide?
A1.We can provide full sets of digital TV transmission system equipments and best solution of broadband network construction. It includes: Head End Equipments --Transmitting Equipments--Receiving System Equipments.

Q2.How to do installation of these equipments?
A2.For small power station, the equipments are very easy for installation.
For large power station, we can send our engineer to your country to help you do the installation, but you should pay the cost.
We also can do training for your engineer here in our company.

Q3.How to operate these broadcasting equipments?
A3.We provide All-English user manual;All-English operation software in our equipment.
We also can do training for your engineer here in our company.

Q4.What about after sales?
A4.The warranty time is one year after goods leaving factory. Within this period, the quality problems are raised due to non-artificial reasons, we will bear the cost of replacing the corresponding components.
Also we can provide technical support from internet or in our company.

Contact Information

Guilin CEKE Communication Equipment Co., Ltd.
Add: D-08, Information Industrial Park, Chao Yang Road, High-tech District, Guilin, Guangxi, 541004, P.R.China.
Name: Mophi Dong
Cell: +86 137 6813 1640
Tel: +86 773 2120 156
Fax: +86 773 2120 299
QQ/Wechat: 175147591
Skype: mophi_dh
Email: cekemophi @163.com
