Specifications |
| 1)simple and durable temperature sensors. |
| 2) very wide range of applications |
| 3)Type:B/R/SK/J/E/N/E/T |
| 4)Assembly thermocouple |
RTD PT100 From Topright
Thermocouple/Pt100 sensor Description:
Thermocouples and RTD pt100 sensors are very simple and durable temperature sensors. Thermocouple come with different pairings of materials allowing for a very wide range of applications. The different compositions are standardized into thermocouple types. The different types are given letter names which are standardized across the industry.
Thermocouples and RTD pt100 sensors are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed.
Thermocouples and RTD pt100 sensors are easy to use, Thermocouples are the most popular temperature sensors. They are cheap, interchangeable, have standard connectors and can measure Thermocouples and RTD pt100 sensors a wide range of temperatures.
Thermocouple type:Assembly thermocouple, Armored thermocouple, bayonet spring fixed thermocouple,high temperature thermocouple, platinum and rhodium thermocouple,anti-corrosion thermocouple, wear-resistant thermocouple, high pressure thermocouple, special thermocouple, thermocouple, hand-held thermocouple, miniature thermocouple, noble metal thermocouple, rapid thermocouple, tungsten rhenium thermocouple, single core armored thermocouple etc.
Thermocouples and RTD pt100 sensors technical indicators:
Product |
Conductor material |
Type |
Graduation |
Use temperature°C (short time) |
Use temperature°C
|
|
|
Thermocouple |
PtRh30-Ptrh6 |
WRR |
B |
0-1800°C |
0-1600°C |
|
PtRh10-Pt |
WRP |
S |
0-1600°C |
0-1300°C |
||
PtRh13-pT |
WRB |
R |
0-1600°C |
0-1300°C |
||
NiCrSi-NiSi |
WRM |
N |
0-1000°C |
0-1000°C |
||
NiCr-NiAl(Si) |
WRN |
K |
0-1200°C |
0-900°C |
||
NrCr-constantan |
WRE |
E |
0-700°C |
0-600°C |
||
Iron- Constantan |
WRF |
J |
0-600°C |
0-500°C |
||
Copper-Constantan |
WRC |
T |
0-400°C |
0-350°C |
||
|
Thermal resistance |
Copper heat resistance |
|
Cu50 |
|
-50-150°C |
|
|
Cu100 |
|
-50-150°C |
|||
|
Pt100 |
|
-200-600°C |
|||

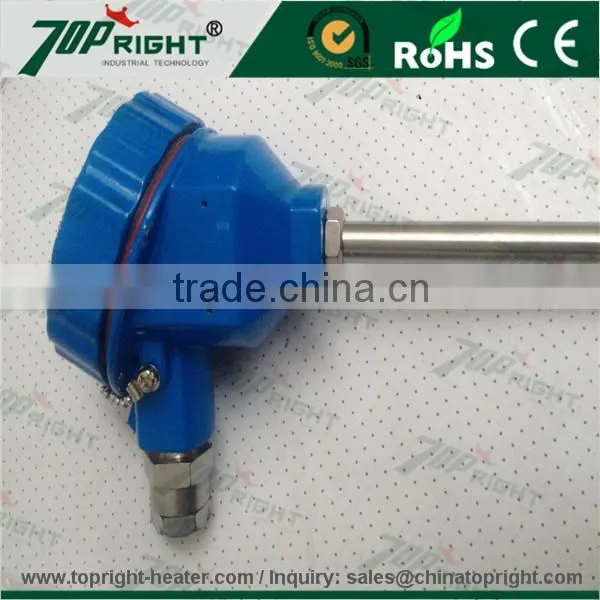

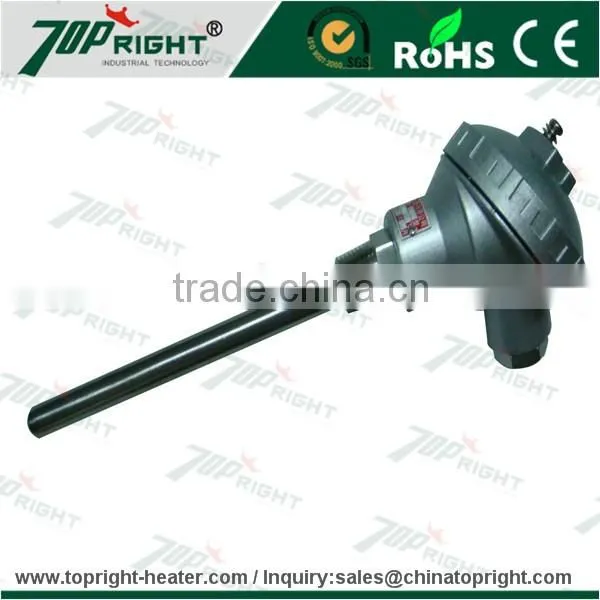

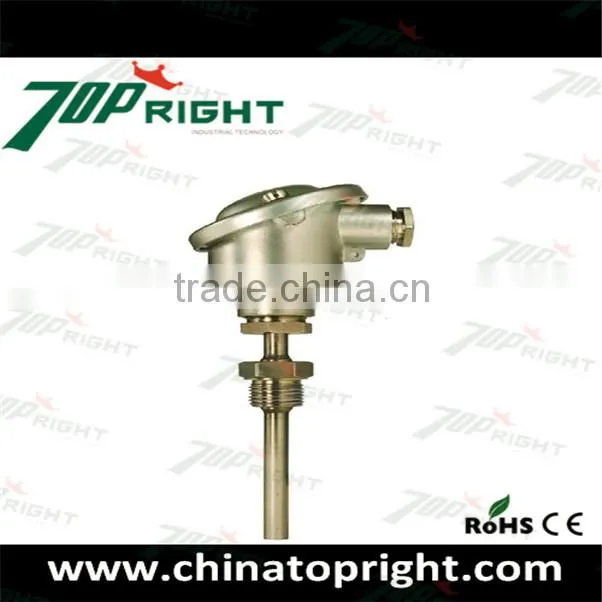

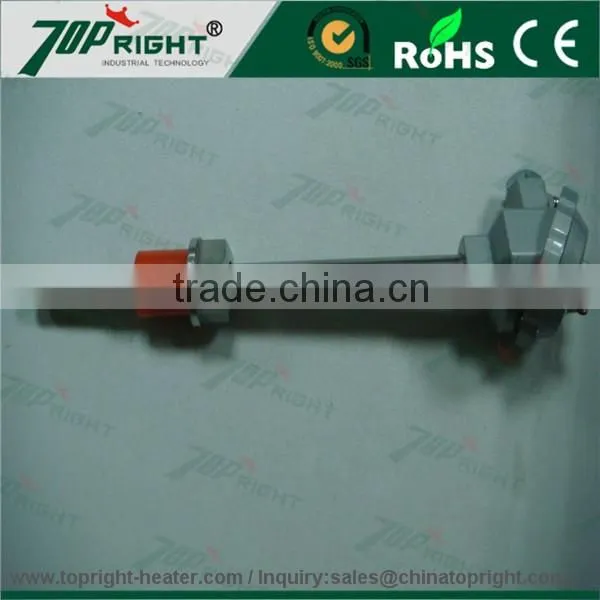

Thermocouple Photos:
Thermocouple type
Assembly thermocouple, Armored thermocouple, bayonet spring fixed thermocouple,high temperature thermocouple, platinum and rhodium thermocouple,anti-corrosion thermocouple, wear-resistant thermocouple, high pressure thermocouple, special thermocouple, thermocouple, hand-held thermocouple, miniature thermocouple, noble metal thermocouple, rapid thermocouple, tungsten rhenium thermocouple, single core armored thermocouple etc.
