Home > Products > Temperature Sensor > WRP-291 EX Proof Thermocouple Chemical Industry Temperature Sensor s

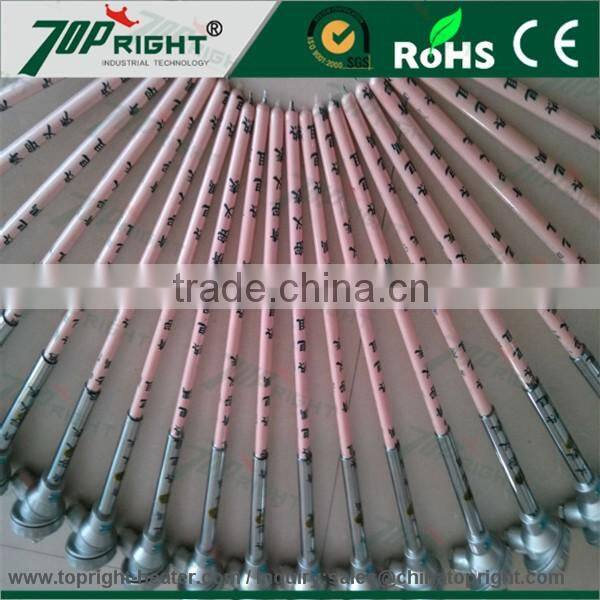

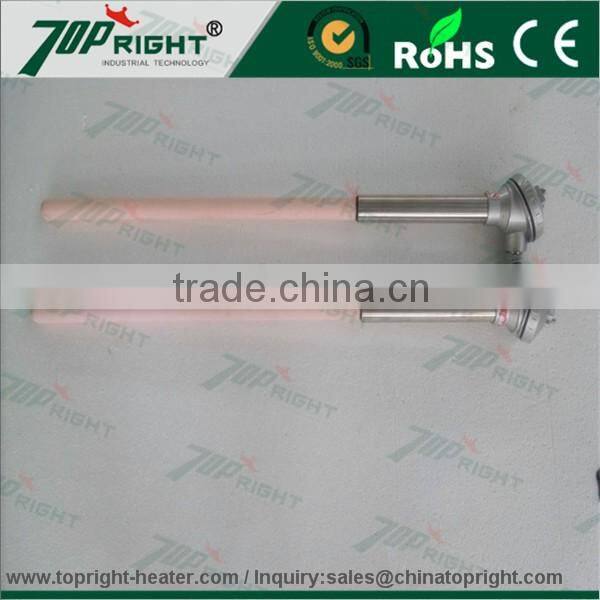

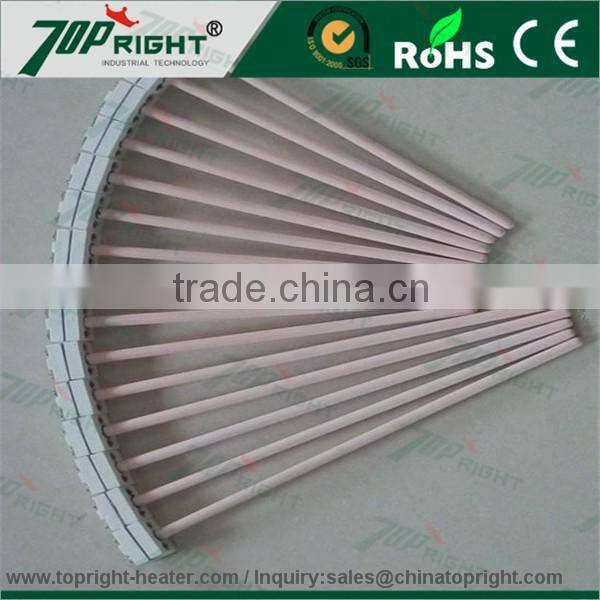

WRP-291 EX Proof Thermocouple Chemical Industry Temperature Sensor s
- shanghai
- T/T Credit Card PayPal
You May Like
-
Temperature Instruments Thermocouple S Explosion-proof
-
Aluminum Alloy Assembly Explosion Proof Thermocouple S Head Box
-
Oil Pressure Sensor K Thermocouple 0-800C
-
Double Needle Thermocouple With Spring Cable
-
Temperature Sensor Assembly Thermocouple With Movable Flange
-
WRN-230 High Quality Gas Oven Thermocouple for Fireplace,Stove and Water Heaters
Product Details
| Place of Origin | China | Brand Name | TOPRIGHT | |
| Model Number | Pt100 | Usage | Industrial | |
| Theory | Temperature Sensor | Accuracy | 0.1 | |
| Temperature Range | 0-1800 |
Product Description
Thermocouple Description:
Thermocouples are very simple and durable temperature sensors. Thermocouple come with different pairings of materials allowing for a very wide range of applications. The different compositions are standardized into thermocouple types. The different types are given letter names which are standardized across the industry.
Thermocouples are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed.
Thermocouples are easy to use, Thermocouples are the most popular temperature sensors. They are cheap, interchangeable, have standard connectors and can measure a wide range of temperatures.
Thermocouples sensors technical indicators:
Product | Conductor material | Type | Graduation | Use temperature°C (short time) | Use temperature°C
| |
Thermocouple | PtRh30-Ptrh6 | WRR | B | 0-1800°C | 0-1600°C | |
PtRh10-Pt | WRP | S | 0-1600°C | 0-1300°C | ||
PtRh13-pT | WRB | R | 0-1600°C | 0-1300°C | ||
NiCrSi-NiSi | WRM | N | 0-1000°C | 0-1000°C | ||
NiCr-NiAl(Si) | WRN | K | 0-1200°C | 0-900°C | ||
NrCr-constantan | WRE | E | 0-700°C | 0-600°C | ||
Iron- Constantan | WRF | J | 0-600°C | 0-500°C | ||
Copper-Constantan | WRC | T | 0-400°C | 0-350°C | ||
Thermal resistance | Copper heat resistance |
| Cu50 |
| -50-150°C | |
| Cu100 |
| -50-150°C | |||
| Pt100 |
| -200-600°C | |||

Since 2001,Topright have been engaged in the development, design, production and sales in one of the sales of industrial technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development. Topright's products have been exported to Europe, America, Asia,Mid East etc. more than 200 countries. We supply different heating element for example silicone rubber heater, kapton heater, band heater, cartridge heater, tubular heater, thermocouple and ect. More details pls link online store:
RAQ:
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us.
3.What type of payment do you have available?
A:We accept TT and L/C,as sample order,the Western Union,Money gram and Aliexpress is available.
4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Welcome to contact us for more details ,most competitive price for you!
Contact Us
- Topright Industrial Technology Yancheng Co., Ltd.
- Contact nameGrace Lu Chat Now
- Phone86-515-88668700
- AddressNo.28 Yingbin South Road,Yancheng,Jiangsu,P.R.China, Yancheng, Jiangsu
