Topright supply Silicon Nitride ceramic heater-Small Dimension
Topright supply Silicon Nitride ceramic heater-Fast Heating
Topright supply Silicon Nitride ceramic heater-Good Corrosion
Topright supply Silicon Nitride ceramic heater-Long Working life
Topright silicon nitride ceramic heater are normally rectangular in shape.
Alloy wire is wrapped in dense silicon nitride ceramic body, where silicon nitride plays the role of
heat transfer medium, dielectric medium as well as protect cover of alloy wire. With excellent
thermal conductivity, insulation performance and comprehensive mechanical properties.Topright silicon nitride ceramic ceramic heater is only 4 mm thickness. The unmatched thermal expansion coefficient makes the scale crack and fall off on their own from the ceramic heater surface. The maximum safe heat load can reach 70 W/cm , only 1/3 in size compared with traditional electric heater.Dimension, power and input voltage are customizable according to your need.

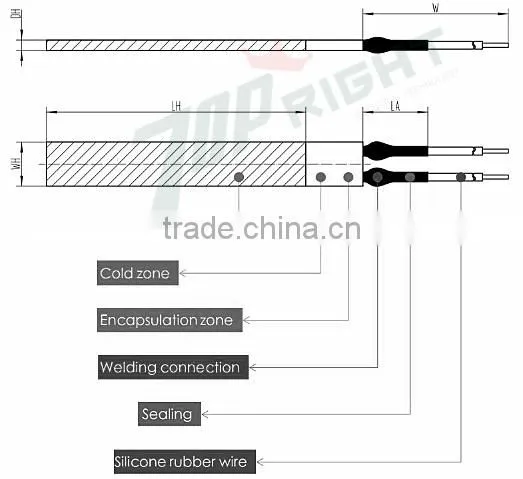

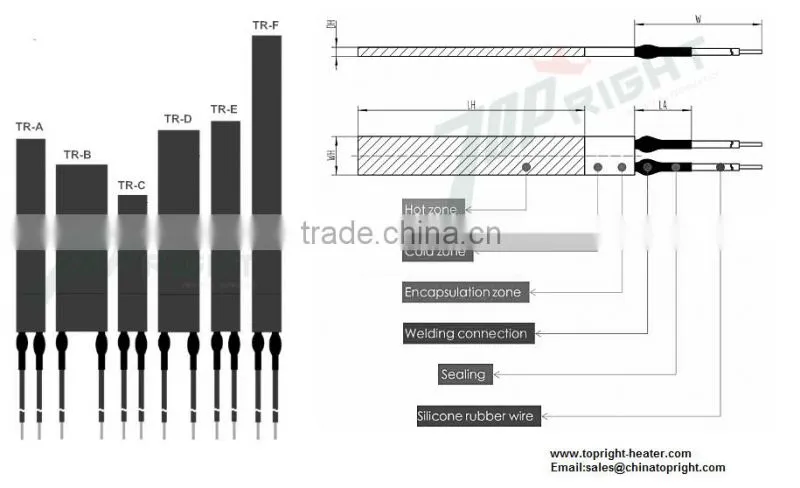

Type &Parameters:
| Model | Dimension | Paramete | |||||
| LH | WH | LA | W | DH | Voltage(V) | Wattage(W) | |
| TR-A | 90 | 17 | 25 ±2 | 200 | 4 |
AC110-380V; DC12v,24v,60v |
600-2500 |
| TR-B | 75 | 30 | 25 ±2 | 200 | 4 | 400-3500 | |
| TR-C | 57 | 17 | 25 ±2 | 200 | 4 | 800-1500 | |
| TR-D | 95 | 24 | 25 ±2 | 200 | 4 | 400-3800 | |
| TR-E | 100 | 17 | 25 ±2 | 200 | 4 | 400-2700 | |

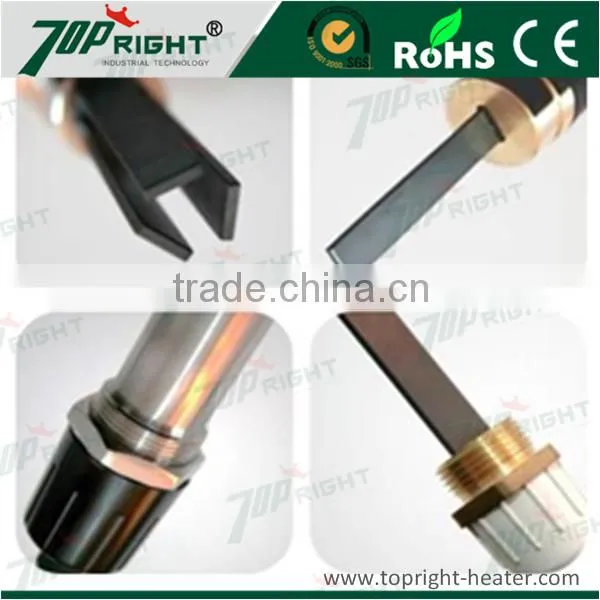

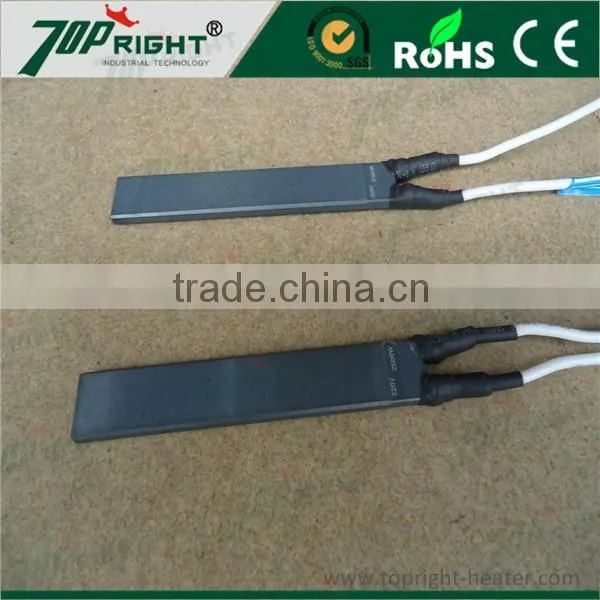

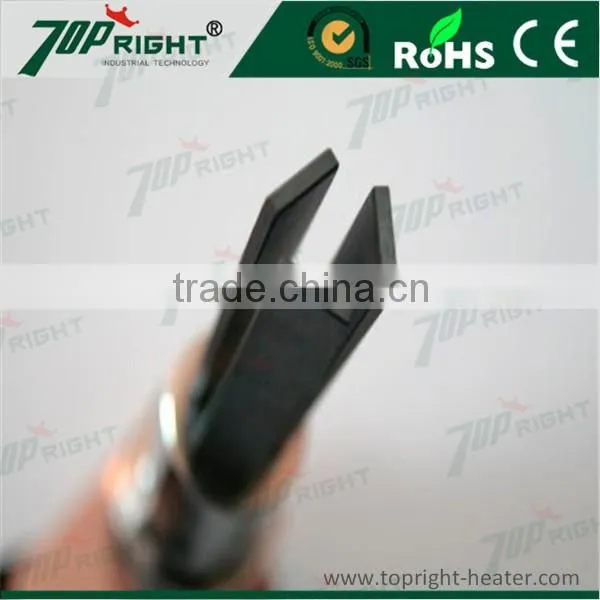

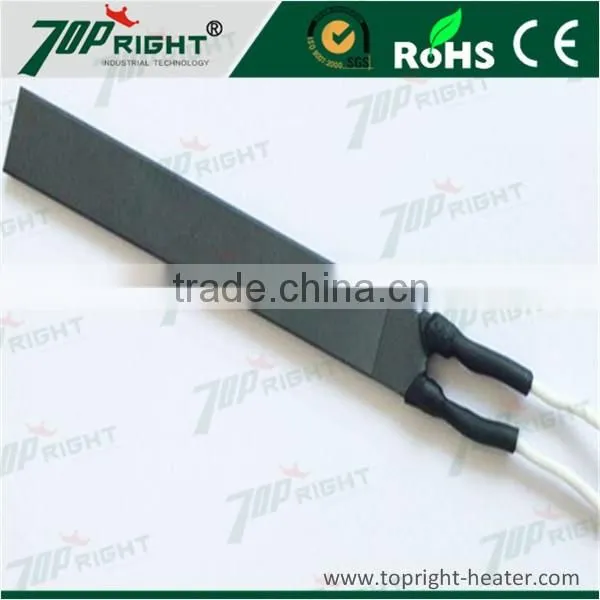

Topright Brands Silicone Nitride Ceramic heater Photos:

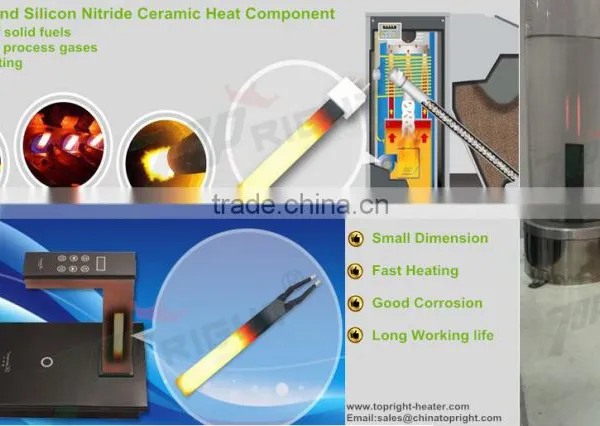

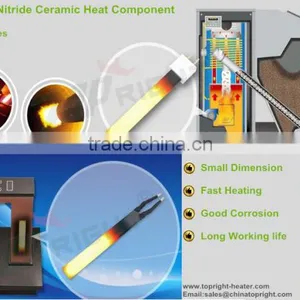

Application:
1.Ignition of solid fuels (e.g. wood pellets)
2.Ignition of gas or oil
3.Reburning or igniter of exhaust fumes
4.heating of process gases
5.Pyrotechnics
6.Brazing machines
7. Heater for corrosive atmosphere
8.R&D - laboratory equipment, measuring and testing
equipment, reactors
9.Tool heating
10. Charcoal barbecue grill
Since 2001, Topright Industrial Technology is engaged in the development, design, production and sales in one of the sales of industrial electric heating technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development more than 15 years, constantly pursuit of technological value-added products,promote industry technology progress, Topright products have been exported to Europe, the americas, Asia, etc. More than 200 countries.
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
Welcome to contact us for more details ,most competitive price for you!
