High Temperature Silicon Nitride Ceramic Igniter From Topright

High Temperature Silicon Nitride Ceramic Igniter From Topright thumbnail-1
High Temperature Silicon Nitride Ceramic Igniter From Topright thumbnail-2
High Temperature Silicon Nitride Ceramic Igniter From Topright thumbnail-3
High Temperature Silicon Nitride Ceramic Igniter From Topright thumbnail-4
High Temperature Silicon Nitride Ceramic Igniter From Topright thumbnail-5
High Temperature Silicon Nitride Ceramic Igniter From Topright thumbnail-6
High Temperature Silicon Nitride Ceramic Igniter From Topright photo-1
High Temperature Silicon Nitride Ceramic Igniter From Topright photo-2
High Temperature Silicon Nitride Ceramic Igniter From Topright photo-3
High Temperature Silicon Nitride Ceramic Igniter From Topright photo-4
High Temperature Silicon Nitride Ceramic Igniter From Topright photo-5
High Temperature Silicon Nitride Ceramic Igniter From Topright photo-6
US$ 8 - 25 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Topright
Model Number:
TRTH138-1
Contact Supplier Request Quote Chat Now
Topright Industrial Technology Yancheng Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Topright
Model Number TRTH138-1


Topright supply Silicon Nitride ceramic heater-Small Dimension

Topright supply Silicon Nitride ceramic heater-Fast Heating

Topright supply Silicon Nitride ceramic heater-Good Corrosion

Topright supply Silicon Nitride ceramic heater-Long Working life



high temperature Silicon Nitride ceramic Igniter from Topright



Topright silicon nitride glow igniters are normally rectangular in shape. These igniters have a hot
operation zone up to 1000 C and a cold zone in the contact area. Encapsulated terminal can
prevent short circuit caused by conductive contamination. They can be operated with or
without a controller. Silicon nitride igniters have several times the durability than that of silicon
carbide products.Dimension, power and input voltage are customizable according to your need.





Type &Parameters:

  Model                  Dimension                       Paramete
  L   LH  WH   LA  WA   DA DH   Voltage(V)   Wattage(W)     Max.Temp.(C)
 TH138 138  94  17   23   25  12  4  AC220-240     700/450      1000/800
 TH128 128  84  17   23  25  12  4 AC220-240     600/400 1000/800
 TH95  95  58  17   23  25  12  4 AC220-240       400 1000
 TH52  52  15  17   23  25  12  4 AC110      100 1000
 TH135 135  98  23   23  31  12  4 AC220-240     900/600 1000/800
 TH115 115  76  30   25  38  12  4 AC220-240     900/600 1000/800



high temperature Silicon Nitride ceramic Igniter from Topright

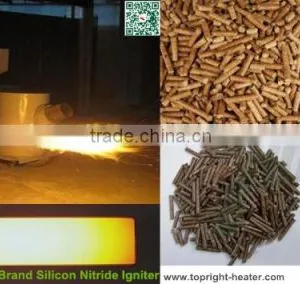

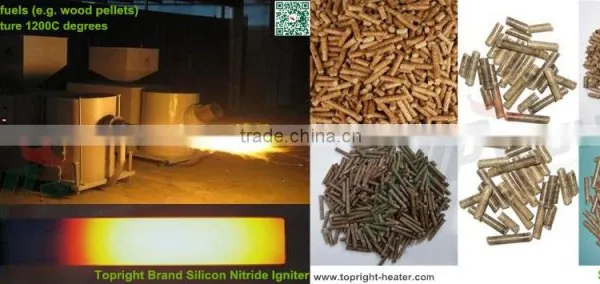

Topright Brands Silicone Nitride Glow Igniter Photos:

high temperature Silicon Nitride ceramic Igniter from Toprighthigh temperature Silicon Nitride ceramic Igniter from Topright

high temperature Silicon Nitride ceramic Igniter from Toprighthigh temperature Silicon Nitride ceramic Igniter from Topright



Application:
1.Ignition of solid fuels (e.g. wood pellets)
2.Ignition of gas or oil
3.Reburning or igniter of exhaust fumes
4.heating of process gases
5.Pyrotechnics
6.Brazing machines
7. Heater for corrosive atmosphere
8.R&D - laboratory equipment, measuring and testing
equipment, reactors
9.Tool heating
10. Charcoal barbecue grill

high temperature Silicon Nitride ceramic Igniter from Toprighthigh temperature Silicon Nitride ceramic Igniter from Topright







Certifications

 high temperature Silicon Nitride ceramic Igniter from Topright

Company Information

Since 2001, Topright Industrial Technology is engaged in the development, design, production and sales in one of the sales of industrial electric heating technology company, according to the customer needs, provide tailored solution of design, committed to the electric heating and temperature measurement in the field of development more than 15 years, constantly pursuit of technological value-added products,promote industry technology progress, Topright products have been exported to Europe, the americas, Asia, etc. More than 200 countries.

high temperature Silicon Nitride ceramic Igniter from Toprighthigh temperature Silicon Nitride ceramic Igniter from Topright
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.

Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.

high temperature Silicon Nitride ceramic Igniter from Topright



Welcome to contact us for more details ,most competitive price for you!
