furnace insulation fireproof blanket/board

FOB Price

USD $6.8 - $35 / Roll

1 Roll(Min.Order)

Supply Ability 100000 Roll / Rolls per Month
Port shanghai
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China	Brand Name	Topright
Type	Other, Insulation blanket	Material	Other, Fiberglass, Aluminosilicate
Application	High Temperature	Tensile Strength	Good

Product Description

Specifications

1)Low thermal conductivity, low thermal capacity
2)Excellent heat insulation, fire prevention

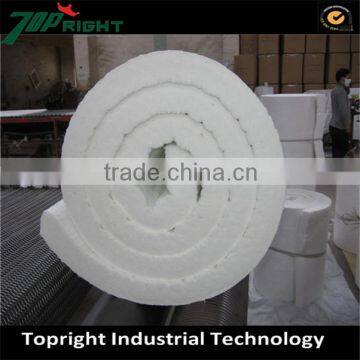

3)Ceramic fiber blanket

Product Description:

Ceramic fiber blanket is manufactured by alumina, magnesium,silicate fiber.

through acupuncture, heat setting, vertical and horizontal cutting and rolling processes of needling ,cutting and rollings.

Ceramic fiber blanket technical characteristics:
Low thermal conductivity,heat capacity
Excellent thermal stabilityand thermal shock resistance
Good tensile strength
Excellent thermal insulation, fire protection, acoustic

Specification:

Description		Common	Standard	High Purity	High Alumina	Zirconia
Maximum temperature (°C)		1100	1260	1260	1360	1430
Working Temperature (°C)		< 1000	1050	1100	1200	1350
Color		white	white	white	white	white
Density (kg/m3)		96/ 128	96/ 128	96/ 128	128 /160	128 /160
Shrinkage(%)of heating 24 hours (as density 128 kg/m3)		-4 (1000°C)	-3 (1000°C)	-3 (1100°C)	-3 (1250°C)	-3 (1350°C)
Thermal conductivity (w/m.k)(Density 128 kgs/ m3)		0.09(400°C) 0.16(800°C)	0.09(400°C) 0.16(800°C)	0.09(400°C) 0.16(800°C) 0.20(1000°C)	0.12(600°C) 0.20(1000°C)	0.16(800°C) 0.20(1000°C)
Tensile strength (MPa) (density as 128kg/m3)		0.04	0.04	0.04	0.04	0.04
Chemical composition (%)	AL2O3	44	46	47-49	52-55	39-40
	AL2O3 & SIO2	96	97	99	-	-
	AL2O3 & SIO2 & ZrO2	-	-	-	99	99
	ZrO2	-	-	-	5-7	15-17
	Fe2O3	<1.2	<1.0	0.2	0.2	0.2
	Na2O & K2O	≤0.5	≤0.5	0.2	0.2	0.2
Standard size(mm)		Standard forms Thickness:1/2”,1”,1.5”,2.0”(10-50mm) Width:24”(610mm) Length: 12.5’25’(3600mm and 7200mm) (Non-standard sizes are available by contacting Topright)

Production Process:

Application:

Ceramic fiber blanket application:
Industrialfurnace construction materials, heating devices, heat pipe wall lining
Power boilers,gas turbinesand thermal power
Chemical industryhigh temperature reactionequipment and heatingequipmentlining the walls
High-rise buildingfire protection, thermal insulation
Furnace door, roof insulation
High temperature filter material

............. run with you together!
