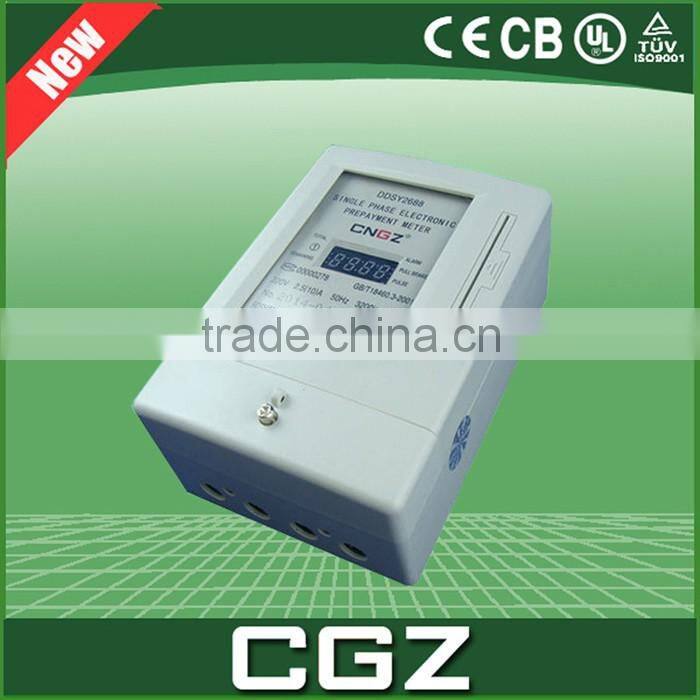

CGZ White Color Prepaid Expenses Single Phase Electronic Digital Energy Meter

top quality DDSY2688 prepaid electric meter

◊◊ 2015 good DDSY2688 digital electric prepaid meter ◊◊

top quality DDSY2688 prepaid electric meter

1.Electrical Meter Description

top quality DDSY2688 prepaid electric meter

Single phase prepaid electricity meter  adopts micro-electronic technology, it has high precision and low power consumption, the performance can complies with IEC 61036.

It adopts large-scale integration (LSI) and surface mounting technology (SMT), the main components use international famous brand, so the meter has high reliability and long service life. The meter case uses fire-resistant ABS material, and the structure of the meter is air-proofed. Single-chip processing system in the module responsible for the data operation.

The purpose of developing this meter is controlling electricity consumption. Users should purchase the electricity enable the meter running. The meter can remind the user to purchase the electricity by alarm when the electricity remained is limited, and switch off the power supply automatically when the electricity use up. It’s also able to limit maximal consuming power. Each meter match with one memory card, and the meter can exchange the data with card bi-directionally through the card read device. User won’t lose electricity even he lost the user card, because a renewed card is acceptable.

top quality DDSY2688 prepaid electric meter

2.Electrical Meter Technical Features

top quality DDSY2688 prepaid electric meter

Technical Parameter:

1.Rated current: 1.5(6), 2.5(10), 5(20), 5(30), 10(40), 10(60), 15(60), 20(80), 30(100)A

2.Rated voltage: 110,120, 220, 230, 240V

3.Accuracy class: Class1, class 2

4.Frequency: 50/60Hz

5.Starting current: 0.04Ib(1.0S), 0.05Ib(2.0S)

DDSY2688 single phase smart card electricity meter

Working principles

The meter collects voltage signals from the potentiometer. The current signals collected from the shunt to get multiplying signals through multiplication device, and after frequency converting, get counting pulses, which is in direct ratio with the product of voltage and current.

The counting pulses of electric energy will be sent to CPU for processing through electro-coupling, and be stored in nonvolatile EEPROM after operation. These pulses and information from IC card that been stored with some volume of electricity and data of supervisory demands will be processed by micro processing system in the meter then provide signals of display, warning and cutting-off state etc.

 Diagram is as follows:

top quality DDSY2688 prepaid electric meter

Function And Features:

1.Payment Methods: Payment use IC card prepaid, when arrears automatic power-off.

2.Power-off Alarm: When electronic shortage, remind users to buy electricity timely

3.Display: 5digit nixie tube display the remaining electric quantity and accumulative

total power consumption in turns

4.IC Card Type: Contact card(4442 card) OR Low frequency card(T5557)

5.Overload Alarm: When the user average power exceeds the preset value for more than

one minute, the electricity meter will automatically stop power supply.

It will resume power supply automatically 5 minutes later.

6.Strongly Encryption: By using the encryption card and dynamic encryption algorithm,

system data can not be decrypted

7.Temporary Overdraft Electricity: When users run out electricity and cannot purchase

the electronic timely, Management staff can insert temporary overdraft electricity card,

energy meter will restore. Overdraft electricity consumption can be set.

8.Power Supply Mode: Three-phase four-wire power supply

9.Vending Electricity System: Single-phase three-phase prepaid share a set of vending electricity system

top quality DDSY2688 prepaid electric meter

Wide application:

DDSY2688 single phase smart card electricity meter

DDSY2688 single phase smart card electricity   top quality DDSY2688 prepaid electric meter

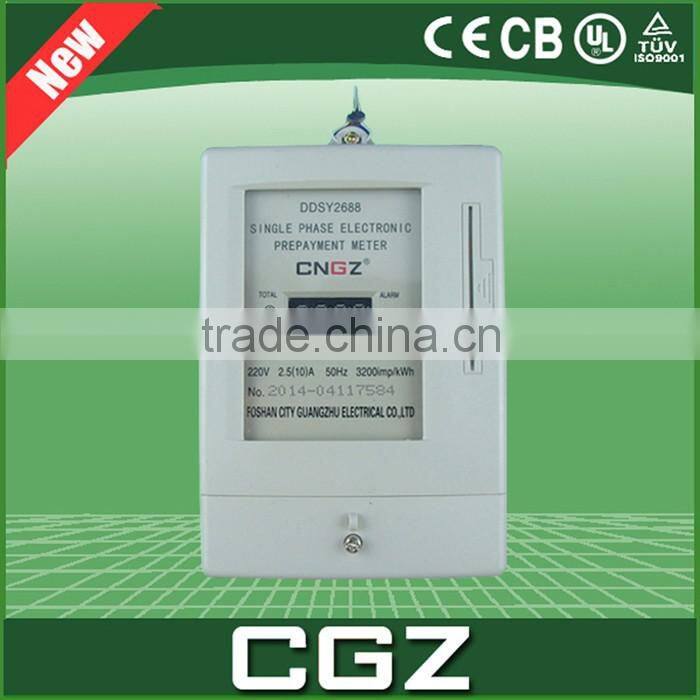

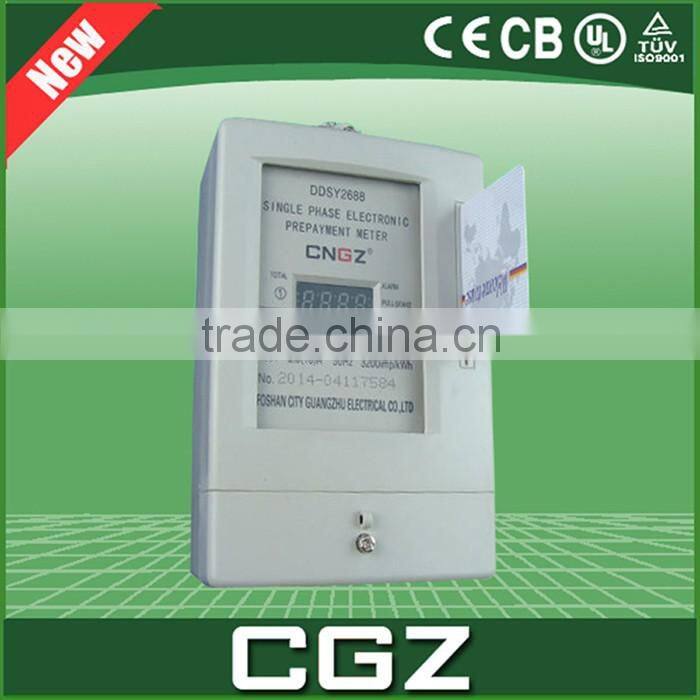

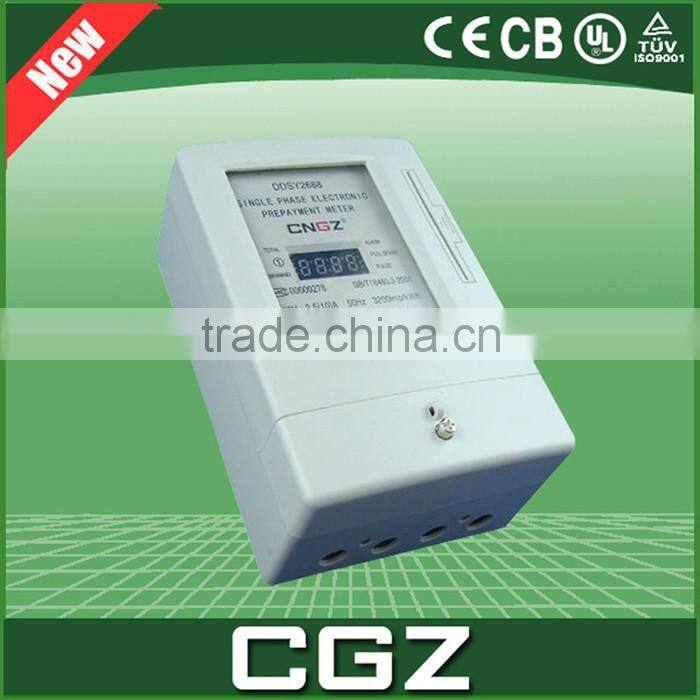

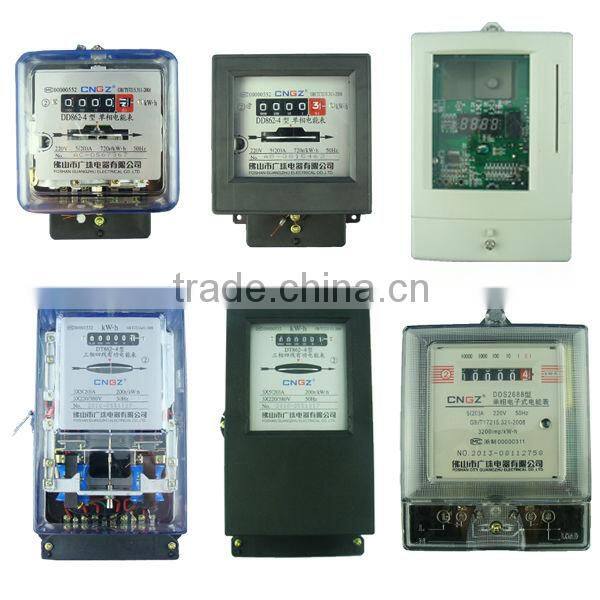

3. Electrical Meter Product Pictures

top quality DDSY2688 prepaid electric meter

top quality DDSY2688 prepaid electric meter

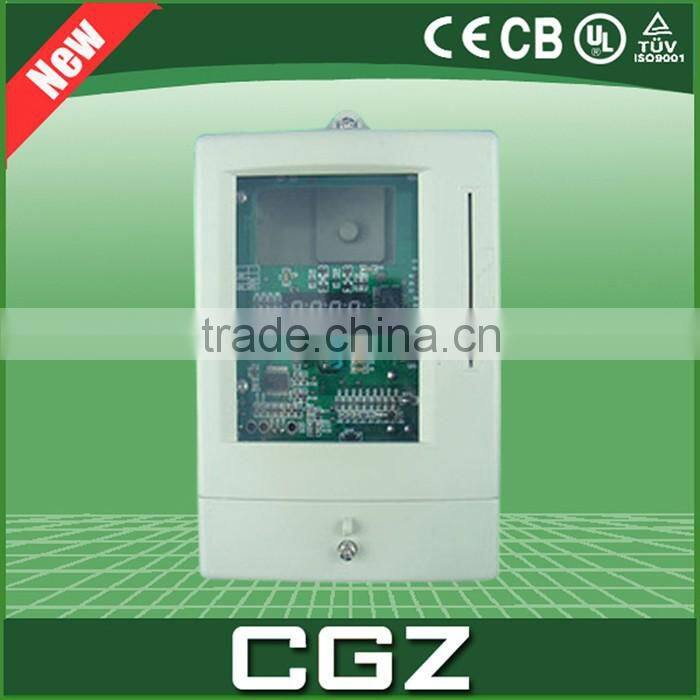

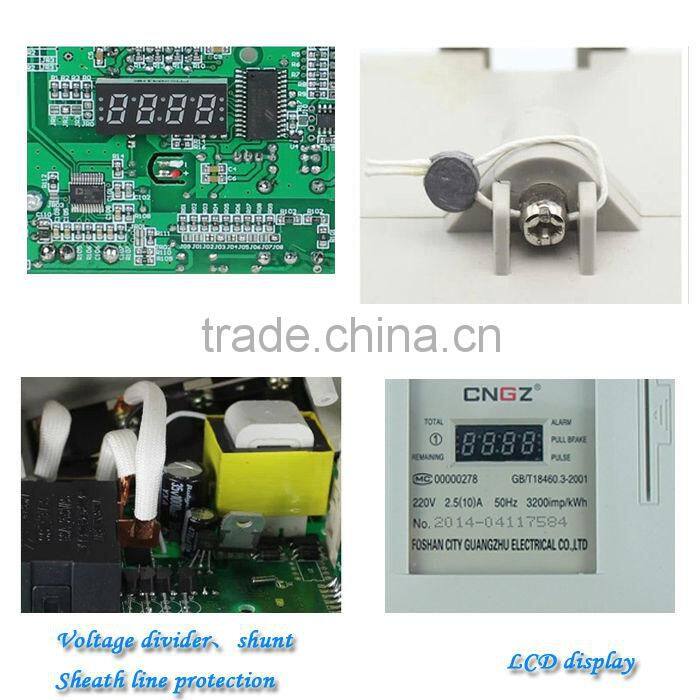

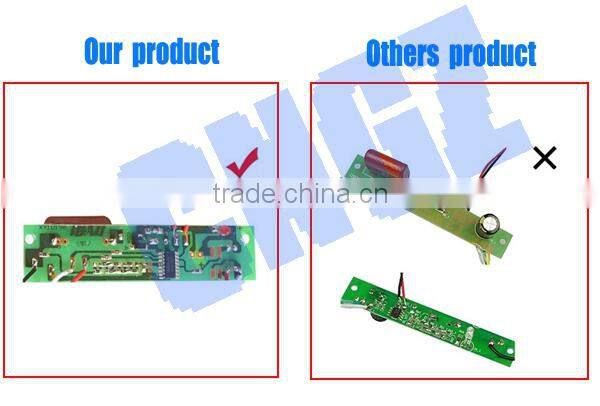

4.Electrical Meter Detail

top quality DDSY2688 prepaid electric meter

top quality DDSY2688 prepaid electric meter

top quality DDSY2688 prepaid electric meter

Company View

Our Certifications

Our Exhibitions

Our Services

1. Reply your enquiry in 24 working hours.

2. Experienced staffs answer all your questions in professional and fluent English.

3. Customized design is available. OEM & ODM are welcome.

4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.

5. Special discount and protection of sales area provided to your distributor.

FAQ

Q1:what's the delivery time?

A1:Usually it will take about 15 days for production.

Q2:tell me the standard of package?

A2:Standard export carton packing with good quality carton box.

Q3:Can you accept to use our logo?

A3:If you have good quantity,it absolute no problem to do OEM.

Q4:We want to know monthly capacity.

A4:100000pcs/month.

Q5:what kind of certificate do you have?

A5:Our company already achieve ISO, and for products, we have CE & CB certificates.
