DDS2688 single phase  electric meter

1. Electrical Meter Description

DDS2688 single phase  electric meter

DDS688 single phase electronic watt hour meter is intended for electric energy measurement and registration in single phase two-wire network in household. It adopts LSI(large scare integrated circuit), micro-electronics technique and SMT(surface mount technology) etc.  Its performance comply with IEC62053-21, IEC 62052-11.

2. Electrical Meter Technical Features

Technical Parameter:

1.Rated current: 1.5(6), 2.5(10), 5(20), 5(30), 10(40), 10(60), 15(60), 20(80), 30(100)A

2.Rated voltage: 110,120, 220, 230, 240V

3.Accuracy class: Class1, class 2

4.Frequency: 50/60Hz

5.Starting current: 0.04Ib(1.0S), 0.05Ib(2.0S)

1).Measure active electric energy,do not need calibrate for long-term operation;
2).Adopt the special chip of measurennentADE7755;
3).Adopt the latest oversea electric energy special integration circuit,greatly improved dynamic working range of Meter, making the ability of actual overload up to over10 times;
4).Have hood mistake linearity in the range of 5% lb-Imax;
5).Few periphery components,simple structure,low power consumption;
6).Adopt high reliability and long life electronic components,so the Meter assume feature of high reliability and long life;

Function And Features:

1.Front board three fixed hole installation, terminal block is make of bakelite material, which is moisture-resistant, fire-retardant, high temperature overall.

2.Way of connection: direct connection, through CT, through CT&PT.

3.High accuracy and stability: there is no need to re-calibrate for long term operation.

4.steel and antirust base and long terminal cover, transparent glass cover. May select other materials, such as ABS, Polycarbonate etc.

5.Standard configuration unidirectional 5+1 digits analog register (99999.1kwh), may select LCD or LED display.

6.May extend Communication port, such as RS485, RS232, IR (infrared radiation) etc.

7.simple structure, small volume, low power consumption and light weight etc.

8.Anti-fraud function (optional)

Wide application:

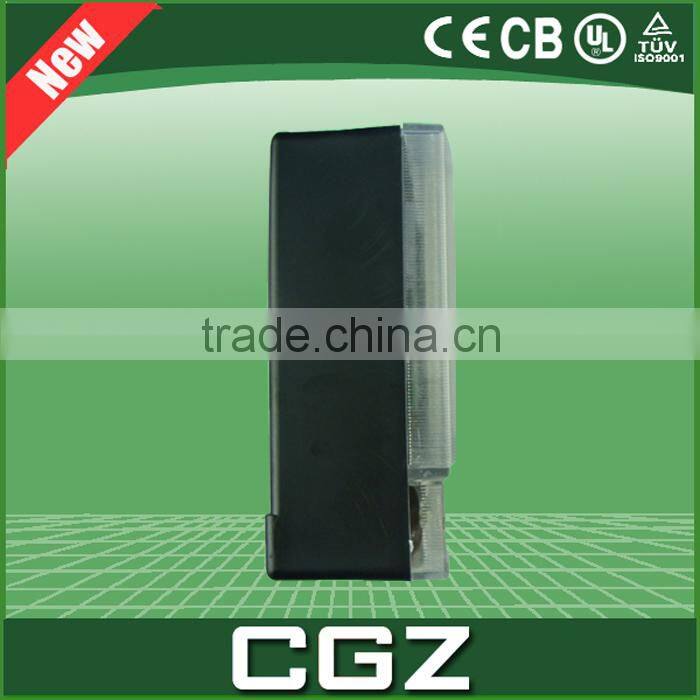

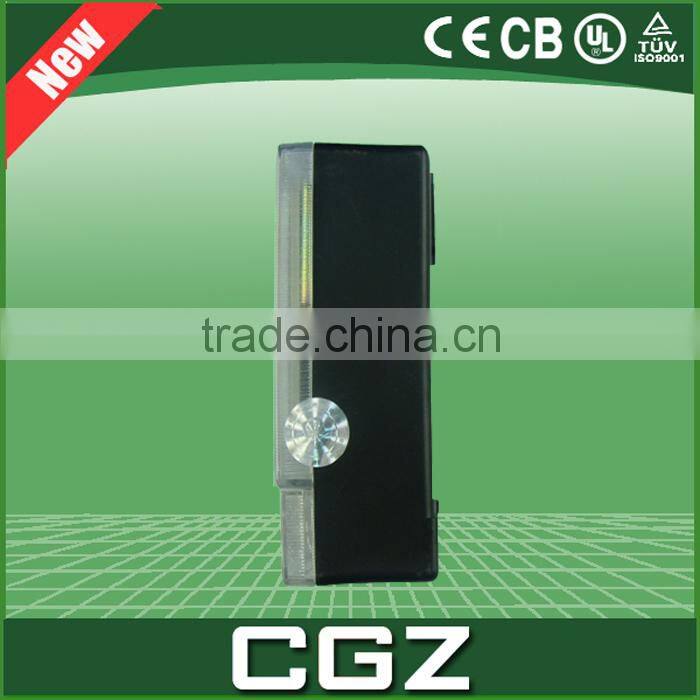

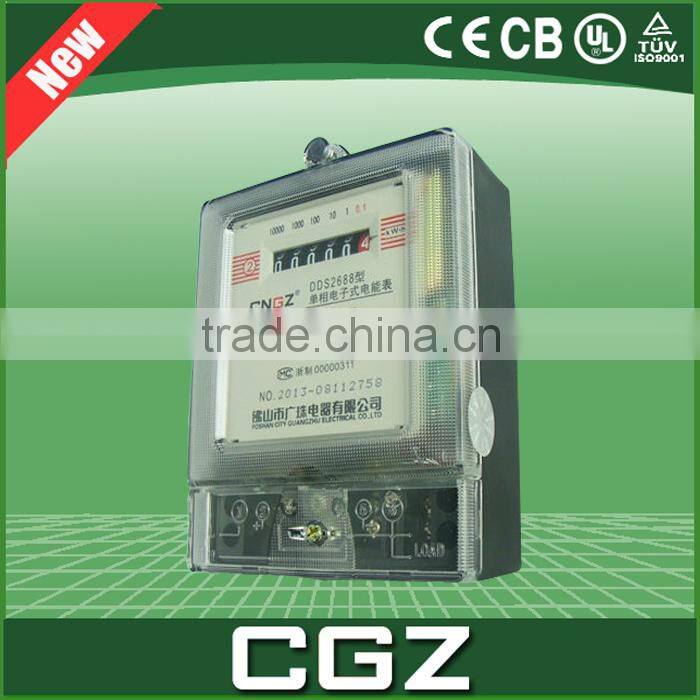

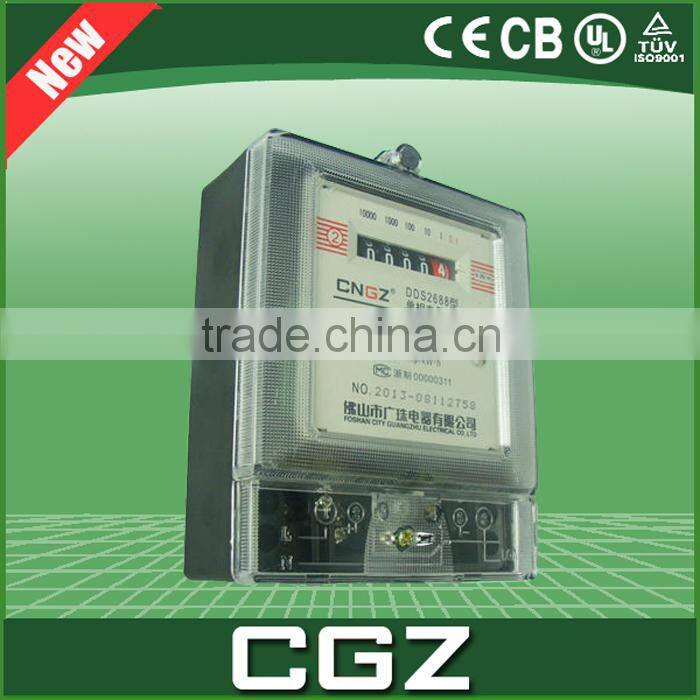

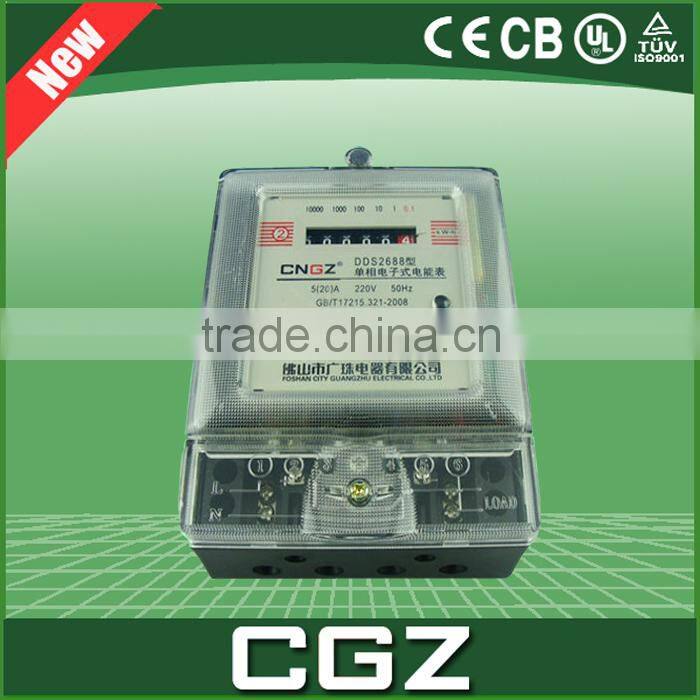

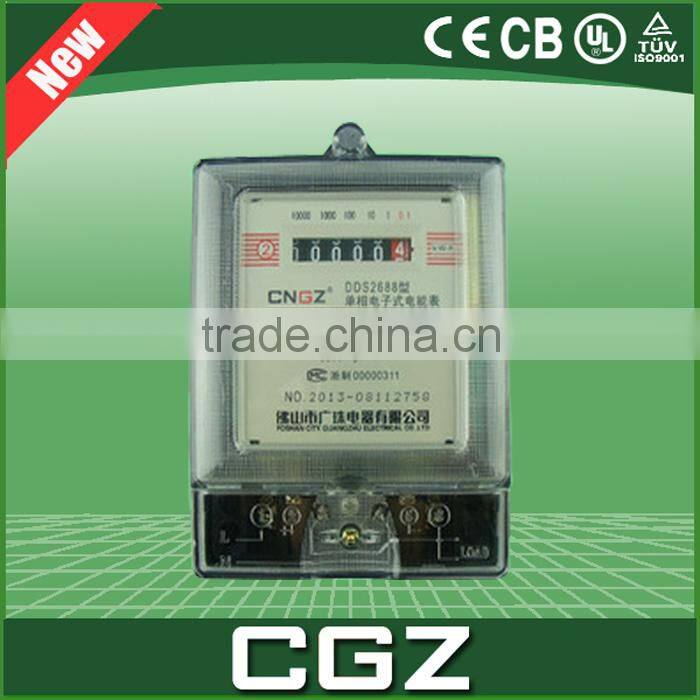

3. Electrical Meter  Product Pictures

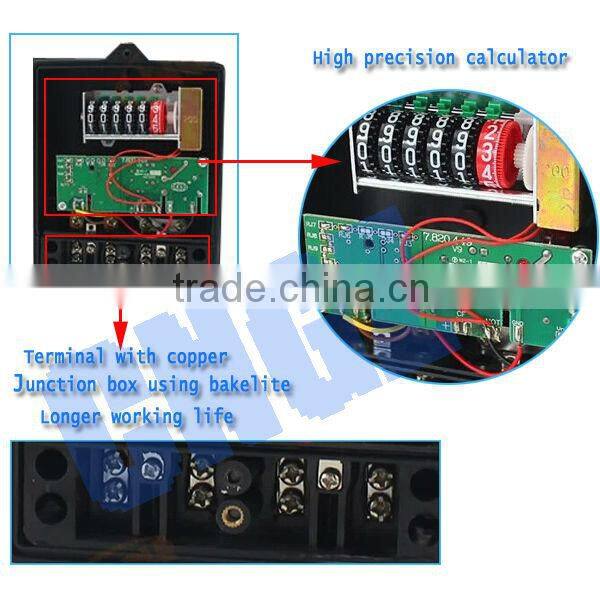

4.Electrical Meter Detail

DDS2688 single phase  electric meter
