Widely applied factory sale npk fertilizer machinery, npk fertilizer machine
- 60 Set / Sets per Month
- Qingdao port Shanghai port etc.
- T/T D/P D/A Credit Card
- Pressing Ball Machine(86-15978436639)
- Charcoal Powder Press Ball Machine(0086-15978436639)
- Ball Pressing Maker Machine(86-15978436639)
- How Do You Make Charcoal Balls(0086-15978436639)
- Briquetting Plant Cost(86-15978436639)
- Production of Briquttes Briquetting Machine with a Capacity of 2t/h(86-15978436639)
Product Details
Condition: | New | Production Capacity: | According to different raw material | Motor Type: | AC Motor |
Power(W): | 7.5kw, 15kw | Place of Origin: | Henan, China | Brand Name: | Lantian npk fertilizer machinery |
Model Number: | npk fertilizer machinery YQJ-290, YQJ-360, YQJ-450 | Dimension(L*W*H): | According to different types | Certification: | CE, ISO |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
npk fertilizer machinery:1) With 30 years' development.
2) Factory direct sale.
3) Reliable quality
Widely applied factory sale npk fertilizer machinery, npk fertilizer machine
Type-1: NPK fertilizer machinery
Molds of Type-1 npk fertilizer machinery
Chicken manure pellets made by Type-1 npk fertilizer machinery
Pellets made by Type 1 npk fertilizer machinery
Type2: NPK fertilizer machinery
This type npk fertilizer machinery also named as hydraulic press machine, which can press chemical
powder, starch powder, kaolin powder, sludge into cube shape, tablet shape, hexagonal shape, cylinder
shape. This type npk fertilizer machinery are widely usde in South Korea to press kaolin, starch, as well
as sludge into tablet or other shapes. The finial fertilizer is applied in greenhouse, you only need to bury
fertilizer into the ground. (npk fertilizer machinery)
Mold of Type-2 npk fertilizer machinery
Other kinds fertilizer made by type-2 npk fertilier machinery
Brief introduction of machine for npk fertilizer machinery
NPK fertilizer machinery is used to press chemical powder, organic powder, livestock excrement, humud,
clay, kaolin , starch, sludge, city waste, etc. into green fertilizer. The npk fertilizer machinery has far-ranging
raw material. There are two kinds npk fertilizer machinery in our factory. One is npk fertilizer pellet machinery,
the other is npk fertilizer press machinery. (npk fertilizer machinery)
Working principle of npk fertilizer machienry
The whole process of npk fertilizer machinery
1.Adopting the crushing machine to crush the material into small pieces.
2.Adopting the mixing machine to mix the material together on average.
3.Adopting the npk fertilizer machinery make the material into granules.
4.Adopting the irregular granules will be screened through the screening machine.
5.Adopting the drying and cooling machine will dry the and cool the granules. And then be packaged in bags.
Main parts of npk fertilizer machinery
1) Feeding part: This part is mainly to realize raw material can be feeded into the space between these
two rollers. Screw conveying device is drived by electromagnetic speed regulating motor. Through belt
pulley, worm reducer moves, then raw material is foreced to enter feeding part. Due to electromagnetic
speed regulating motor 's constant torque characteristic, when the screw feeder's pressure amount equals
to require amount, it can maintain costant feeding pressure, this makes briquettes' quality.(npk fertilizer
machinery)
2) Drive part: Main transmission system consists of Motor, Triangle strip, Reducer, Open gear, Rollers.
Electromagnetic speed regulating motor provide the power, through the belt pulley, cylindrical gear reducer,
then transmit power to driving shaft through rod pin coupling.(npk fertilizer machinery)
3) Shaping part: Mainy refer to the certer part of npk fertilizer machinery. It means the core part------rollers.
(npk fertilizer machinery)
Characteristics of npk fertilizer machinery
1) High efficiency, high quality.
2) The pellet's dimension is customized.
3) Durable molds.
4) Far-ranging raw material.
5) Factory direct sale.(npk fertilizer machinery)

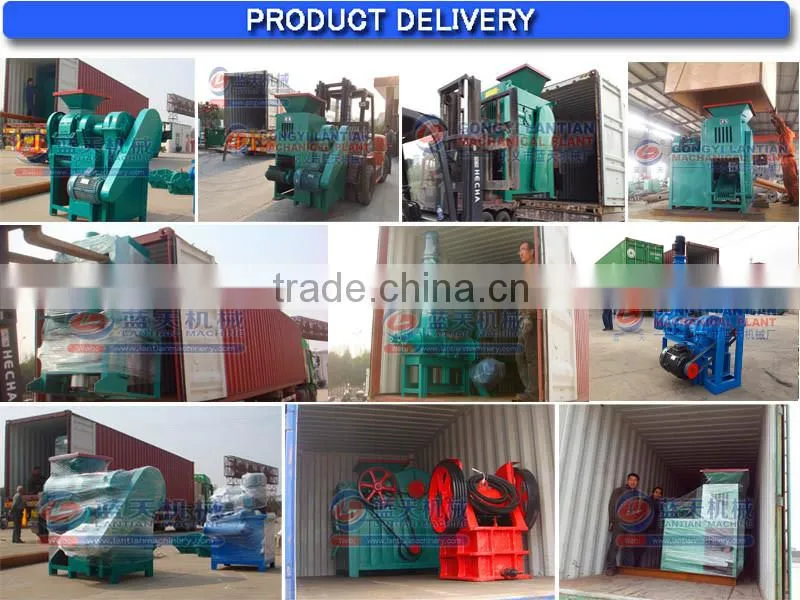

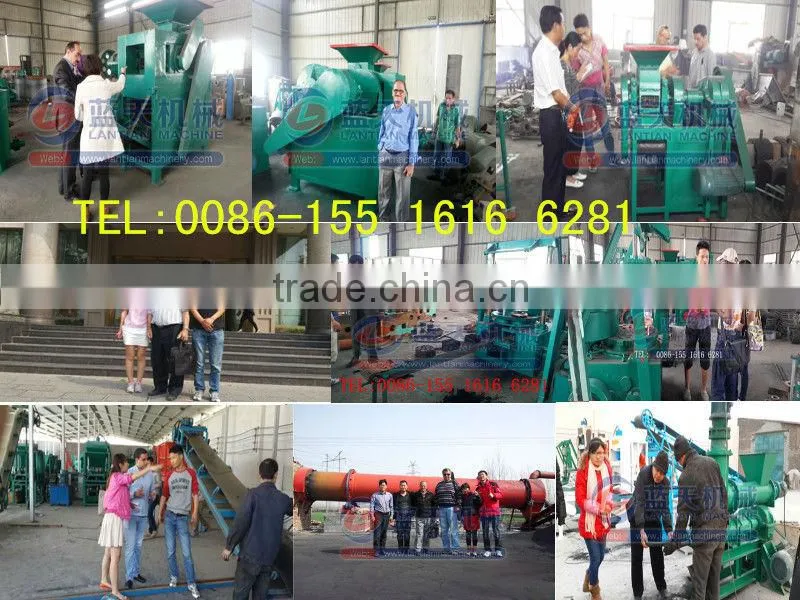

Delivery site of npk fertilizer machinery
Raw materials of npk fertilizer machinery
1. Agricultural waste: straw, dregs of beans, cotton dregs, rice bran,etc.
2. Animal manure: mixture of poultry litter (PL) and animal waste(AW),such as,Slaughterhouse Waste,Fish
Market,Urine and dung of cattle,Pigs,Sheep,Chicken, Ducks, Geese,Goat.etc.
3.Industrial waste: wine lees, vinegar residue, manioc waste, sugar scum, furfural residue etc.
4. Home scrap: food waste, bones, the roots and leaves of vegetables, etc.
5. Sludge: the sludge of the river, the sewer, etc. clay, etc.
6. Chemical material.
7. Humud.
8. Kaolin.
9. Starch.(npk fettilizer machinery)

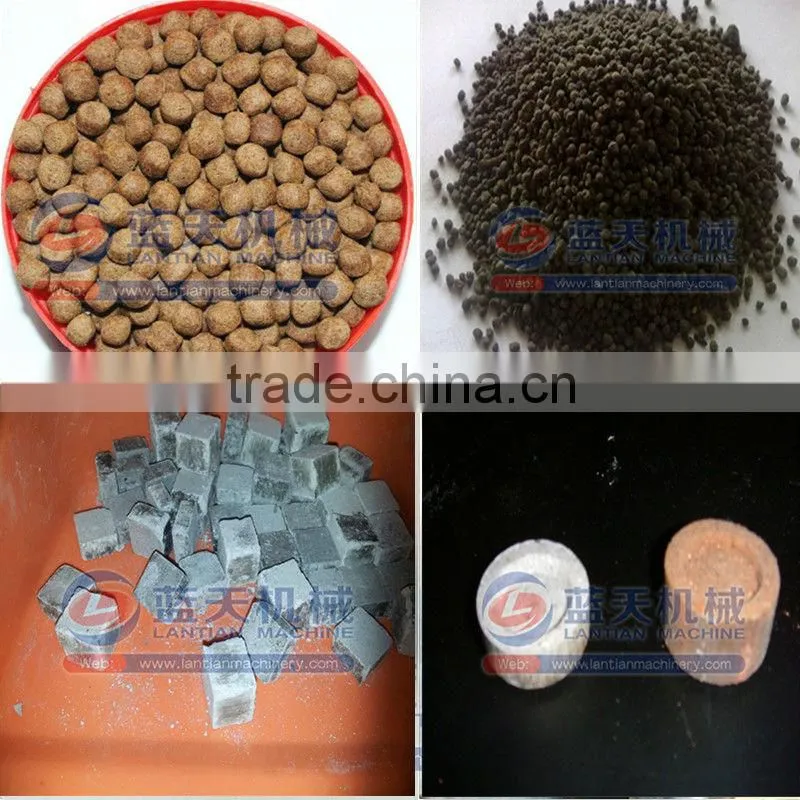

Final pellet made by both type-1 npk fertilizer machinery and Type-2 npk fertilizer machinery
Main parameter of npk fertilizer machinery
Type | Roller diameter | Capacity | Motor power | Outlet shape and size |
YQJ-290 | 290mm | 1-2 ton/h | 5.5 kw | Customized |
YQJ-360 | 360mm | 3-4 ton/h | 7.5 kw | Customized |
YQJ-450 | 450mm | 5-6 ton/h | 15 kw | Customized |
YQJ-550 | 550mm | 6-10 ton/h | 18.5 kw | Customized |
YQJ-650 | 650mm | 10-15 ton/h | 25 kw | Customized |
YQJ-850 | 850mm | 15-25 ton/h | 30-55 kw | Customized |
YQJ-1000 | 1000mm | 25-35 ton/h | 75-130 kw | Customized |
If you are interested in our npk fertilizer machinery, please contact me freely!
Introduction of Lantian Mechanical Plant:
Lantian Mechanical Plant was founded in 1980s. Through about 30 years' development, our plant has been
specialized in fertilizer pellet machinery, npk fertilizer machinery, organic fertilizer machinery, etc. And apart
from all kinds of fertilizer machine, our factory also produce coal/charcoal briquette machine, crusher, dryer,
mixer, carbonization furnace, etc. (npk fertilizer machinery)
