Home > Products > Pellet Machine > Factory sale high production capacity wood sawdust briquetting press straw log making machine
Factory sale high production capacity wood sawdust briquetting press straw log making machine
- 80 Set / Sets per Month
- Qingdao Port Shanghai Port Tianjin Port or other ports
- T/T L/C D/P D/A Credit Card PayPal
- BEFZ Household Kitchen Scale High Precision Mini Digital Balance 0.01g digital pocket scale Capacity 500g/0.01g Pocket Scale
- 2014 New arrival western ladies Rivet new fashion belt with flower leather pattern buckle Wholesale /Retail sell
- Dung cleaning machine
- mini rice mill
- stainless steel seeds roaster
- incense stick making machine
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Lantian Brand straw log making machine |
Model Number: | ZLJ-20, ZLJ-45,ZLJ-60, etc. | Voltage: | 220v, 380v, etc. | Power(W): | 5.5kw, 11kw, 7.5kw, 18.5kw |
Dimension(L*W*H): | According to different types | Weight: | According to different types, 500-4000kg | Certification: | CE, ISO |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
straw log making machine:1) factory sale.
2)CE and ISO certificates.
3)professional and reliable service.
Factory sale high production capacity wood sawdust briquetting press straw log making machine
There are three kinds straw log making machines in our factory, they are ring die
straw log making machine and flat die straw log making machine, screw type straw
log making machine.
Type-1. Ring die straw log making machine
Introduction:
Our ring die straw log making machine consists of shaping roller mold, electricity
board, shaping press, conveyor, etc. Our ring die straw log making machine can
shape fine plant straw powder into pellet shape. Except all kinds of plant stalk, our
ring die straw log making machine's raw material also can be dry grass, waste paper,
leaves, rice husk, wheat husk, sorghum stalk, cotton stalk, bean stalk, etc. into small
square shape or cylinder pellet shape. Because of tremendous pressure, our final
pellets are in rather high density, long burning time, stable performance, etc.(straw
log making machine)
Our ring die straw log making machine has large production capacity, according to
various raw material and final smaple's dimensiaon, our ring die straw log making
machine can make 200-3000kg wood pellet per hour. (straw log making machine)
Type-2. Flat die straw log making machine
Introduction:
Flat die straw log making machine is used to press fine dry corn stalk/peanut stalk/rice
stalk/cotton stalk/sorghum stalk, etc. powder whose dimension less than 3mm into small
pellet size. The final pellet dimension can be 10-30mm in diameter. Raw material of flat
die straw log making machine is not only plant straw powder, but also cotton stalk powder,
bark powder, leaves powder, rice husk, wheat husk, sorghum stalk, corn stalk, waste
paper powder, sawdust powder, etc. The final pellet is used as biomass fuel, or fertilizer,
etc.(straw log making machine)

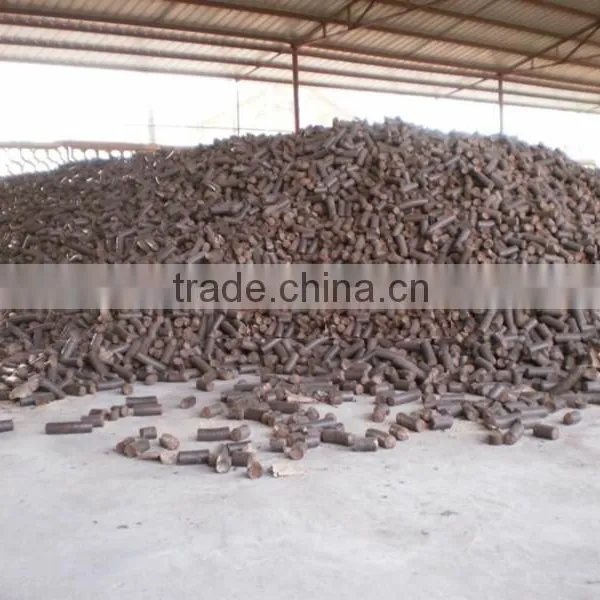

Straw log made by straw log making machine

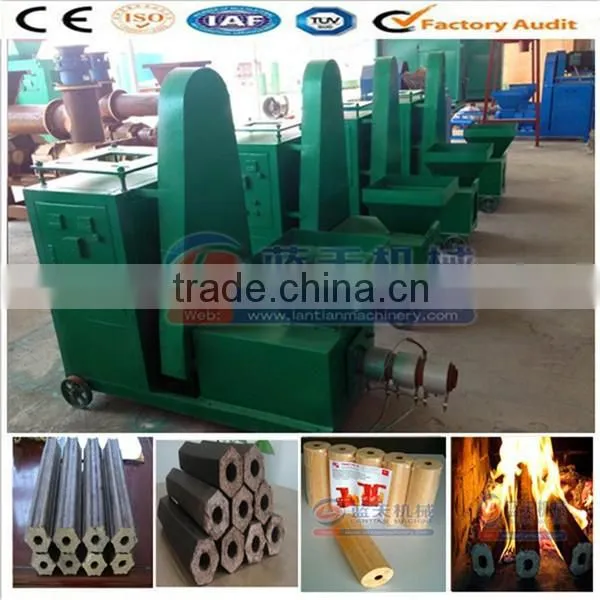

Type-3: Screw type straw log making machine
Introduction
Screw type straw log making machine is different from above two kinds straw log making
machines. This type straw log making machine consists of screw propeller, heating rings,
shaping mold, motor power, etc. After fine straw powder whose dimension less than 3mm
feeded into feeding port, propeller will forced fine powder into shaping mold, and under high
temperature and pressure, fine straw powder will be shaped into corn stalk logs. Diameter
of straw logs' diameter is 40-80mm, length is 400-800mm.(straw log making machine)
Wood briquettes made by straw log making machine
Spare parts of straw log making machine
1.Vertical feeding directly in place.
2.Die static,roller rotating,material centrifugal,evenly distributed around.
3.Double-layer dies,up and dowm dual-use,reduce the cost,enhence the effiency.
4.One die,different hole diameters,with different specification to pelletize.
5.Ring die ,vertical structure.doog for cooling the pelletzing room.
6.Independent and frequency conversion discharge device,to ensure that the rate of pellet
formation.
7.Macroporous die,wire joining circulai tube ,increasing travel ,improving density.(straw log
making machine)
Characteristics of straw log making machine
1) High quliaty and high production capacity.
2) Factory direct sale.
3) Reliable service.
4) Durable structure.
5) Provide you the whole production line.
6) Vrious straw log making machine.(straw log making machine)
Parameters of ring die straw log making machine
Model | Power | Capacity | Dimension (CM) | Weight (KG) |
LTP-350 | 30KW | 300-500 KG/H | 165*70*130 | 1000 |
LTP-450 | 37KW | 500-700 KG/H | 130*70*150 | 1450 |
LTP-550 | 45KW | 800-1000 KG/H | 140*75*160 | 2000 |
LTP-800 | 90KW | 1500-2000 KG/H | 190*100*200 | 3900 |
LTP-1000 | 110KW | 2000-3000 KG/H | 210*115*205 | 4800 |
Visitors came to our factory to test our straw log making machine
How to choose the most suitable straw log making machine
In order to provide you the most suitable straw log making machine with the most suitable
production capacity, could you please share me the following information?
1) What's your raw material?
Our straw log making machine is suitable for rice straw, corn straw, peanut straw, wheat
straw, bean straw, sorghum stalk, cotton stalk, leaves, dry grass, etc. low density raw
material.
2) How many kilograms straw logs do you want to make per hour?
Our straw log making machine and wood briquette machine's production capacity is
between 200-3000kg/h.(cstraw log making machine)
Our factory information:
Address: Gongyi City, Zhengzhou City, Henan Province, China.
Airport Information: CGO ( Zhengzhou Xinzheng International Airport)
We will pick you up at the airport, and direct send you to our factory!
If you are interested in our straw log making machine, please contact me freely!
