♥ Energy and Environment Current Situation:
In some countries, the people take coal as raw materials for heating, burning for stove, burning for generating electric power. But there is SO2 and other harmful substances in the coal which had posed the threat to the environment and people health. With the improvement of living standard, people begin to care much for environment protection and healty requirements. On the other hand, the coal is the non-renewable resources. The coal in the world is fewer and fewer, and it will be exhausted sooner or later. While, the pellets, biomass materials and smokeless, can replace the coal for heating and generating the electric power, which will be the best choice for environment protection.
♥ Introduction of vertical ring die pellet mill:

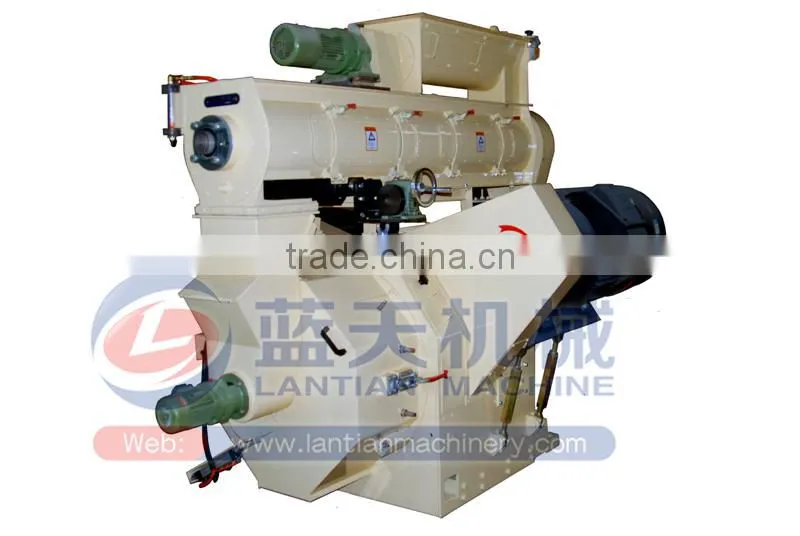

The vertical ring die pellet mill are designed and manufactured with the technical in Germany. The double-motor pulley driving system ensures smooth and reliable operation of the machine. The feeder, conditioner and pellet chamber door are all made of stainless steel. Interlock roller-adjustment system provides a faster and more reliable performance of rollers. Pneumatic quick-dump feed chute, overload security shear pin and die hoist device present users a safe operation.
♥ Application of vertical ring die pellet mill:
1. Vertical ring die pellet mill is mainly used to make the biofuel pellets or animal pellets from wood, straw, cotton stalk, rice husk, peanut shell, bamboo, empty fruit branch, pulverized coal and waste paper, etc.

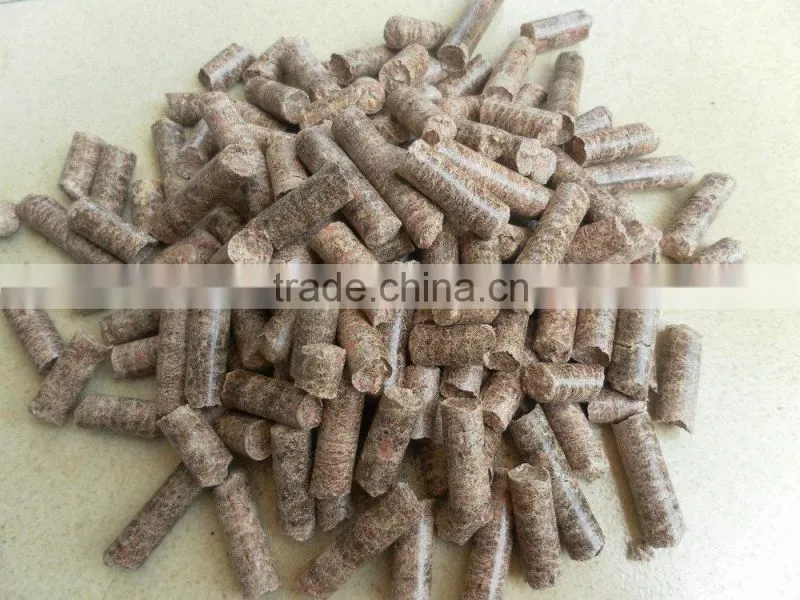

2. The final pellets are of high density, high fuel value, low moisture and low ash content.
3. Vertical ring die pellet mill is energy saving machine which can recycle and reuse the agriculture wastes to protect environment.
4. The outlet pellets can be 4-30mm size for option and the pellets can be used for fireplace, animal feed, burning for stove, etc.
5. The wood pellet mill for sale can be used in electric industry, fertilizer industry, animal feed industry, etc.
♥ Parameters:
Model |
LTHRP-250 |
LTHRP-350 |
LTHRP-420 |
LTHRP-520 |
LTHRP-660 |
||||
Die |
Inside diameter |
250 mm |
350 mm |
420 mm |
520 mm |
660 mm |
|||
Pelleting width |
60 mm |
100 mm |
136 mm |
178 mm |
228 mm |
||||
Pelleting area |
4.7 m2 |
11.9 m2 |
17.9 m2 |
29.1 m2 |
47.3 m2 |
||||
Roller |
Quantity |
2 |
2 |
2 |
2 |
2 |
|||
Diameter |
119 mm |
150 mm |
206 mm |
250 mm |
319 mm |
||||
Main Motor |
Motor Power |
7.5x2 KW |
30x2 KW |
55x2 KW |
75x2 KW |
110x2 KW |
|||
Speed (50Hz) |
330 rpm |
335 rpm |
335 rpm |
335 rpm |
225 rpm |
||||
Conditioner |
Motor power |
2.2 KW |
3 KW |
7.5 KW |
7.5 KW |
11 KW |
|||
Speed (50Hz) |
390 rpm |
425 rpm |
435 rpm |
435 rpm |
420 rpm |
||||
Feeder |
Motor Power |
0.75 KW |
0.75 KW |
1.5 KW |
1.5 KW |
4 KW |
|||
Speed (50Hz) |
Adjustable continuously |
||||||||
♥ Our services:
1. Pre-sales service:
1). sales person, project manager, technology engineer, accountant staff.
2). pofessional responding team: would be very fastly and exactly to send you offer.
3). choose suitable machines and make producing plan according to the raw materials, final shapes and output capacity.
4). offer reasonbal price to meet your budget.
5). invite customers to our factory, demostrate the machines, let you know how the machine work, and compare the quality with other suppliers.
6). producing super and solid quality of machines.
7). arrange shipping and fastly delivery.
8). standard export package or as your requirements.
2. After-sales service:
1). assistance to build factory.
2). repairing and maintain if any problems occur in the warranty.
3). help for installation or clerk training, if necessary, dispatch technicians to your country to install the machines.
4). supply spare and wearing parts of our machines.
5). any feedback of our vertical ring die pellet mill can be told us, and we will try our best to support you.
6). technology knowlogy shares with you.
7). help for any other machine that we haven't.
♥ Contact information:
If there is any interest in our machine, please don't hesitate to contact me.
